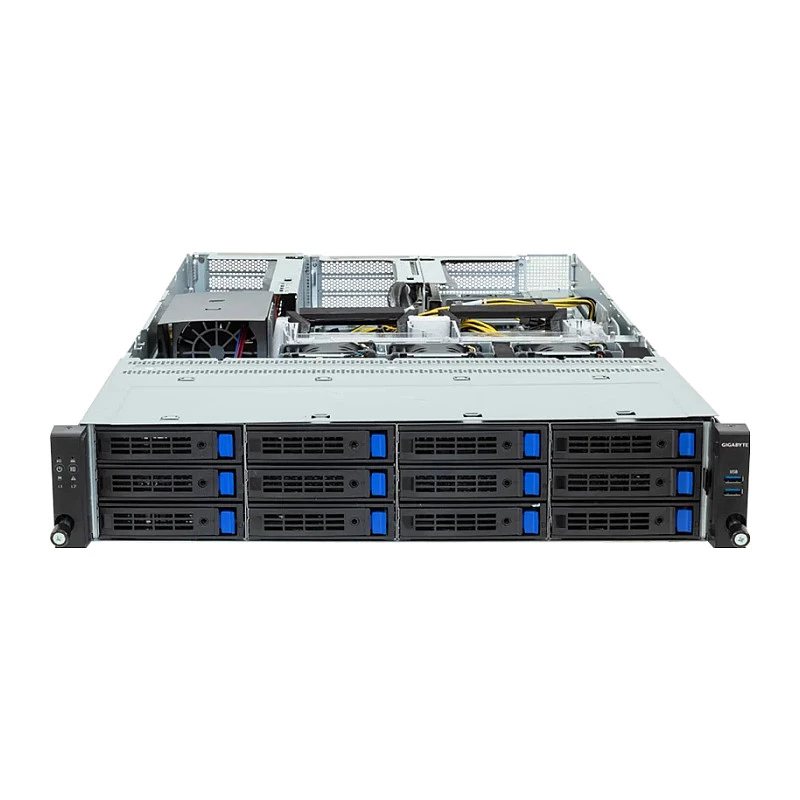

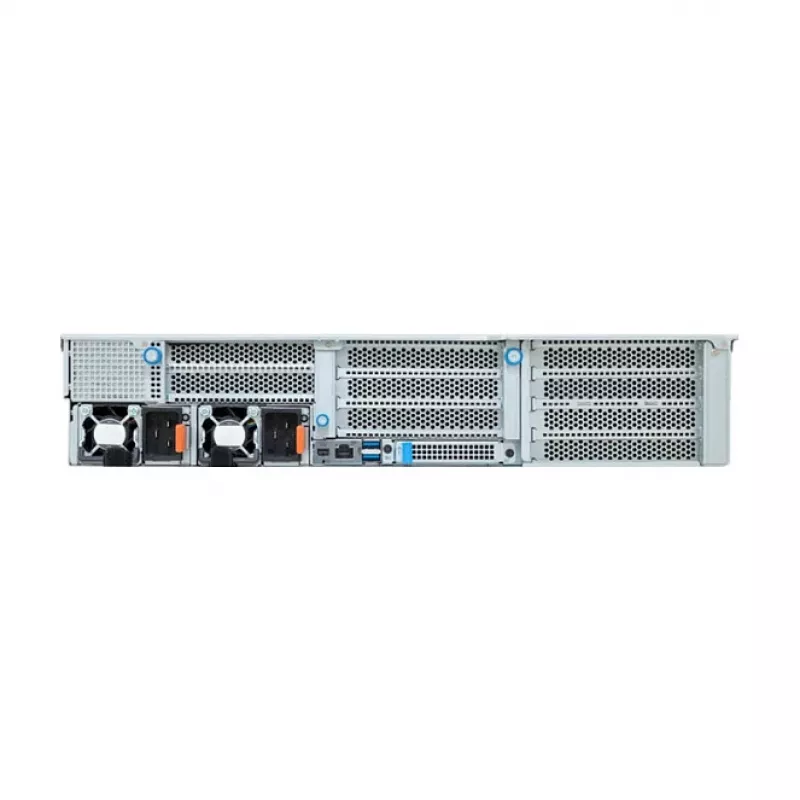

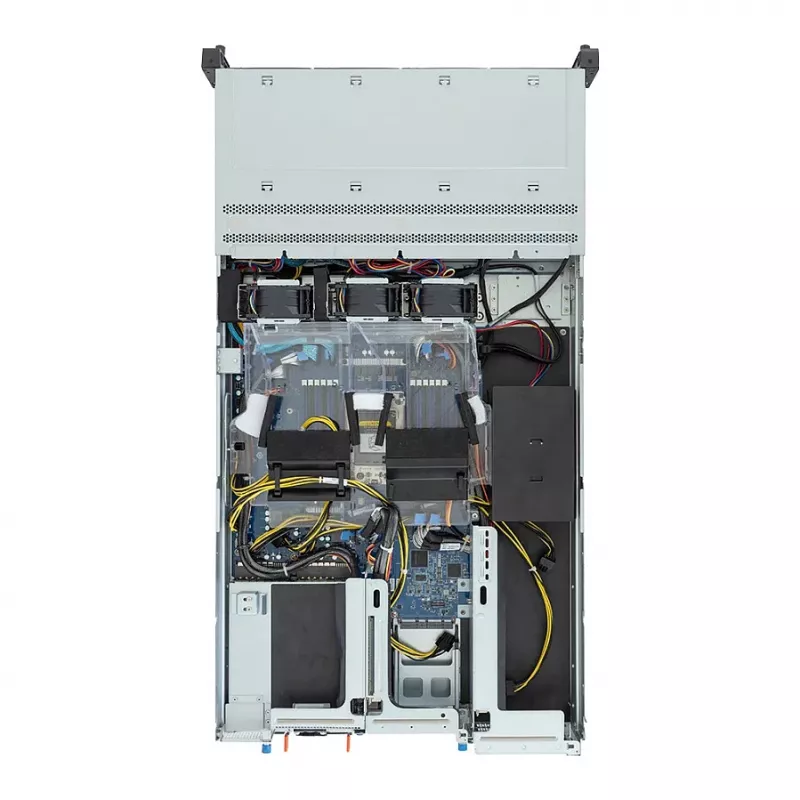

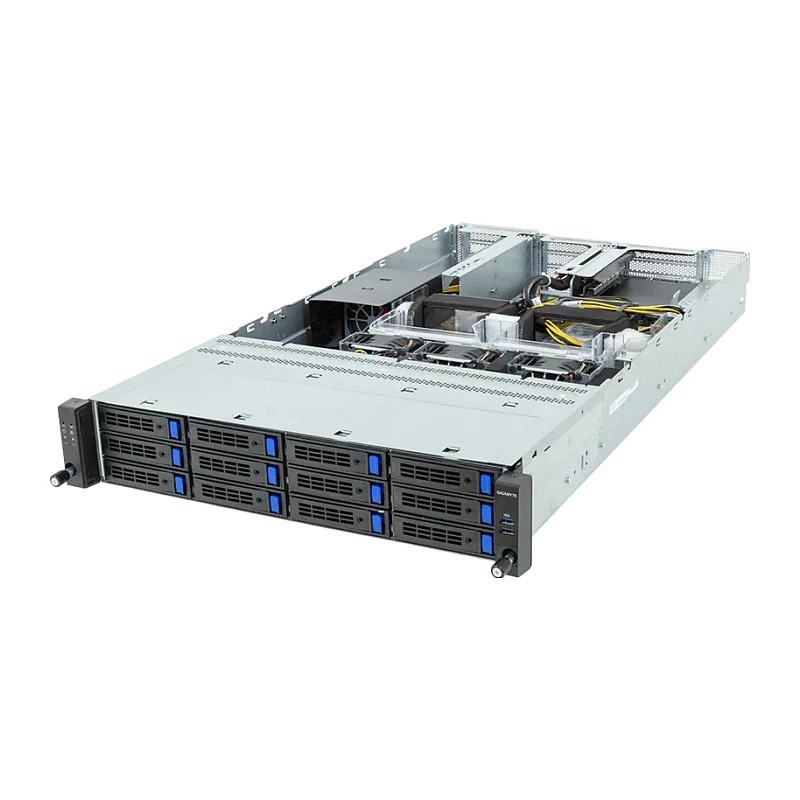

Gigabyte R243-EG0-AAL1 Barebone de servidor rack 2U, Single SP6, AMD EPYC 8004, 12x DDR5, 12x 3,5 polegadas Hot-Swap, 2x 10GbE, 850W redundante

The Gigabyte R243-EG0 (rev. AAL1) is a high-performance 2U rackmount server barebone designed for demanding data center and enterprise workloads. Built around the AMD EPYC 8004 Series (Siena) processor platform with a single SP6 socket, it delivers exceptional compute density and energy efficiency. This barebone includes the chassis, motherboard, cooling, and redundant power supply, but requires separate installation of CPU, memory, and storage.

Advantages

Optimized for AMD EPYC 8004 processors, the R243-EG0 offers 12 DDR5 RDIMM slots supporting up to 3TB of memory, ensuring ample capacity for virtualization, database, and HPC applications. With 12 hot-swap drive bays (3.5"/2.5") supporting SATA/SAS and optional NVMe, plus internal M.2 slots, it provides flexible storage configurations. Dual 10GbE LAN via Intel X710-AT2 and a dedicated 1GbE management port enable high-speed networking and remote management.

Suitable for

• Enterprise server rooms and data centers
• Virtualization and cloud infrastructure
• High-performance computing (HPC)
• Storage and backup servers
• Edge computing deployments

Key specifications

• Form Factor: 2U Rackmount
• Processor Socket: Single SP6 (AMD EPYC 8004 Series)
• Chipset: AMD SP6
• Memory: 12 x DDR5 RDIMM slots, max 3TB
• Storage Bays: 12 x 3.5"/2.5" hot-swap (SATA/SAS, optional NVMe) + 2 x M.2 PCIe Gen4 x4
• PCIe Expansion: 2 x PCIe Gen5 x16 FHFL, 1 x OCP 3.0 Gen5 x16, 1 x PCIe Gen4 x8 LP
• Network: 2 x 10GbE (Intel X710-AT2) + 1 x 1GbE management
• Management: ASPEED AST2600 BMC
• Power Supply: Redundant 850W 80 PLUS Platinum (1+1)
• Cooling: Hot-swap fans

Recommendations

This server barebone is ideal for IT professionals building custom server solutions. Pair with AMD EPYC 8004 CPUs, DDR5 ECC memory, and enterprise SSDs/HDDs for a robust, scalable system. The included management controller simplifies remote monitoring and maintenance.
