GÜDE 1121-1 EPC 10A 2xC13 1xSen.PortÜSS - PDU comutada com medição e monitorização

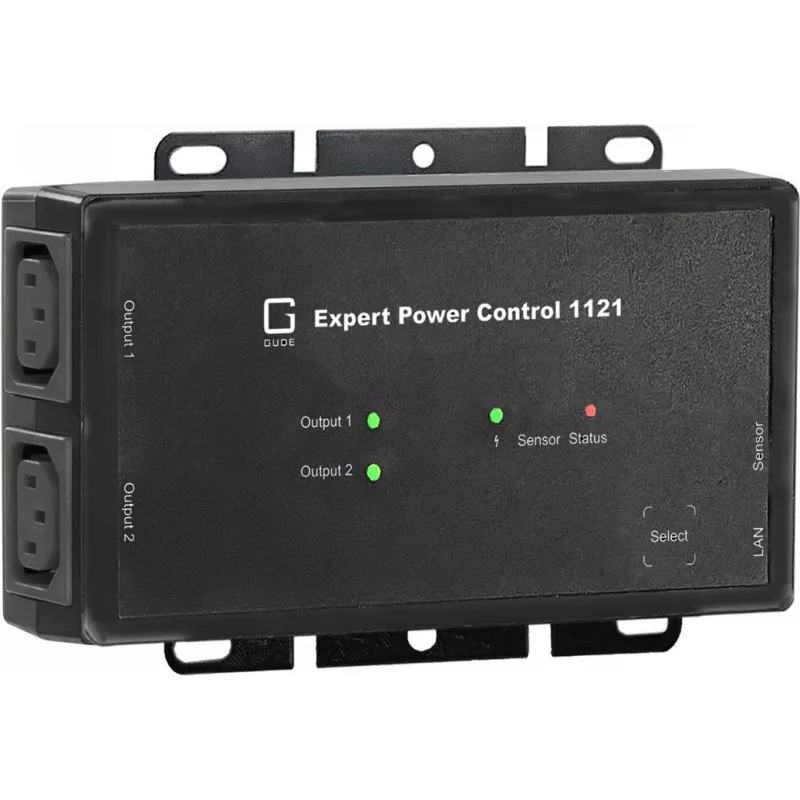

The GüDE 1121-1 EPC is a professional switched PDU with integrated measurement and monitoring capabilities. Designed for reliable power distribution in data centers and server rooms, this 1U 19-inch rackmount unit features 2x IEC C13 output sockets and 1x sensor port for optional temperature/humidity sensors. With a maximum current of 10A and input via IEC C14 plug, it provides individual port switching, remote control via web interface, SNMP, Telnet, or SSH, and comprehensive power monitoring including current, voltage, power, energy, frequency, and power factor.

Advantages

This PDU offers precise power measurement and remote switching for each outlet, enabling efficient energy management and load balancing. The integrated sensor port allows environmental monitoring, while support for multiple protocols (HTTP/S, SNMP, MQTT, Modbus/TCP, etc.) ensures seamless integration into existing network infrastructures. The steel housing and overcurrent protection guarantee durability and safety.

Suitable for

• Data centers requiring remote power control and monitoring
• Server rooms with limited space (1U height)
• IT professionals needing per-outlet switching and energy metering
• Applications demanding environmental sensor integration

Key specifications

• Output sockets: 2x IEC C13 (switched)
• Input connector: 1x IEC C14
• Max output current: 10 A (per port and total)
• Nominal voltage: 100-240 V AC
• Nominal frequency: 50/60 Hz
• Measurement functions: Current, Voltage, Power, Energy, Frequency, Power Factor
• Sensor ports: 1x (for temperature/humidity)
• Network interface: Ethernet (RJ45)
• Supported protocols: HTTP/S, SNMPv1/v2c/v3, Telnet, SSH, MQTT, Modbus/TCP, Syslog, NTP, RADIUS, LDAP, SMTP
• Mounting: 19-inch rack mount (1U), wall mount
• Housing material: Steel
• Operating temperature: 0-50 °C
• Operating humidity: 10-90% RH (non-condensing)
• Remote control: Web interface, SNMP, Telnet, SSH
• Scheduling function: Yes
• Watchdog function: Yes
• Overcurrent protection: Yes (internal electronic fuse)

Recommendations

For optimal performance, pair with optional GüDE temperature/humidity sensors. Ensure network connectivity via Ethernet for full remote management capabilities.
