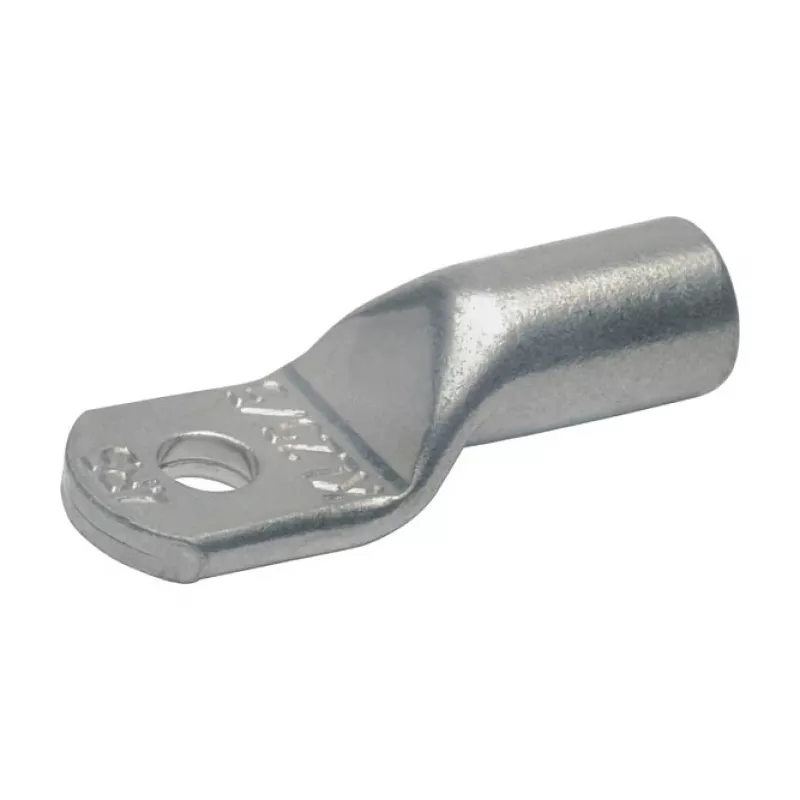

KLAUKE terminal de cobre anel 4R10 25mm² M10

Secure and reliable electrical connections in power distribution and industrial control systems demand a cable lug that can withstand high currents and harsh environments. The KLAUKE 4R10 copper crimp ring terminal is engineered to create a permanent, low-resistance connection on 25 mm² stranded copper conductors, ensuring optimal conductivity and long-term performance.

Who is it for

This terminal is ideal for electricians, panel builders, and maintenance technicians working on power distribution, control cabinets, and industrial machinery. It suits applications requiring a robust, corrosion-resistant connection that complies with DIN 46235 standards.

Main features

• High-purity electrolytic copper (E-Cu) construction for excellent electrical conductivity.
• Tin-plated surface provides corrosion protection and ensures a reliable crimp.
• Designed for 25 mm² stranded copper conductors with an M10 bolt hole (10.5 mm diameter).
• Hexagonal crimp profile recommended for secure, gas-tight connections.
• Uninsulated design suitable for use with heat-shrink tubing or insulating tape.
• Wide operating temperature range from -55°C to +150°C for demanding environments.
• RoHS compliant and halogen-free for environmental safety.

Specifications

• Type: Crimp ring terminal / cable lug
• Material: Electrolytic copper (E-Cu), tin-plated
• Cable cross-section: 25 mm²
• Bolt hole: M10 (10.5 mm)
• Connection method: Crimp
• Standard compliance: DIN 46235
• Conductor compatibility: Stranded copper conductors
• Insulation: Uninsulated
• Temperature range: -55°C to +150°C
• Number of bolt holes: 1
• Recommended crimping form: Hexagonal crimp
• RoHS compliant: Yes
• Halogen-free: Yes
• Colour: Metallic (silver/grey)

Tips

For best results, use a calibrated hexagonal crimping tool matched to the 25 mm² size. Ensure the conductor is fully inserted and the crimp is centered. After crimping, apply heat-shrink tubing for added insulation and strain relief if required.
