Hager Conjunto de montagem para contador eHZ 1200mm 1 campo ZU43ME para sistemas de barramento coletor

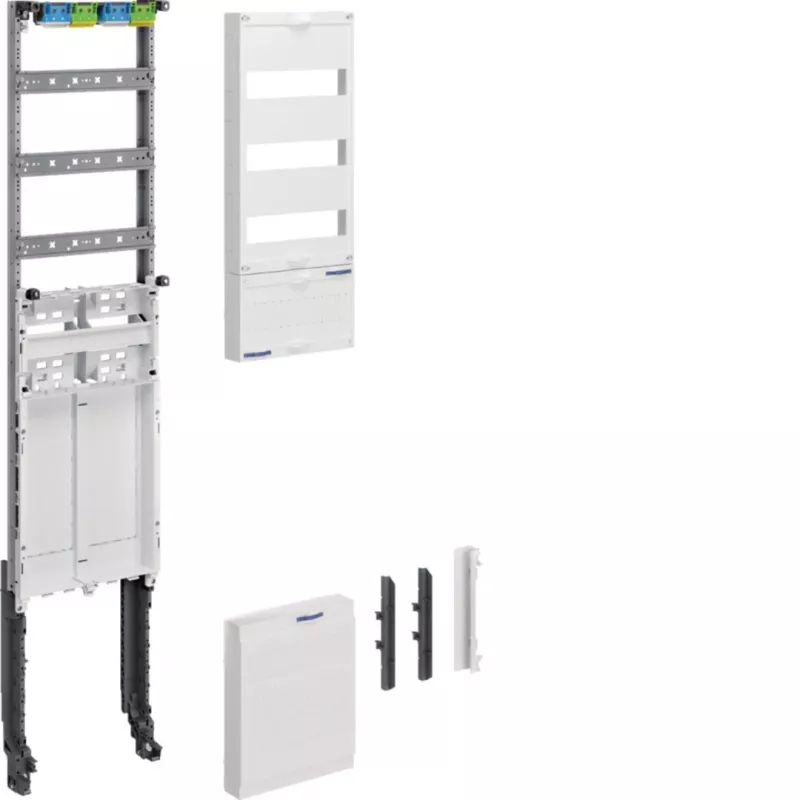

The Hager ZU43ME is a pre-assembled eHZ meter mounting kit designed for 1-field installation in distribution boards with busbar systems. It provides a complete solution for mounting electronic household meters (eHZ) in residential, commercial, and industrial electrical installations, complying with DIN VDE 0603-1 and VDE-AR-N 4100 standards.

Advantages

This kit simplifies installation with its pre-assembled design, saving time and reducing errors. It features a robust galvanized sheet steel construction with plastic components for durability and safety. The integrated PE/N terminals ensure secure connections for busbar systems, while the IP2XC protection class offers basic protection against solid objects.

Suitable for

• Residential and commercial electrical distribution boards
• Industrial electrical installations requiring eHZ meters
• Busbar systems with 5-pole configuration
• New installations or retrofitting existing cabinets

Key specifications

• Product Type: eHZ Meter Mounting Kit
• System Compatibility: Hager Univers Z
• Meter Type: eHZ (Electronic Household Meter)
• Number of Meter Positions: 1
• Field Width: 1-field
• Overall Height: 1200 mm
• Mounting Type: For distribution boards/cabinets
• Connection Type: For 5-pole busbar systems
• Material: Galvanized sheet steel, plastic components
• Pre-wired: Yes, partially pre-wired
• Rated Current (System): Up to 63 A
• Rated Voltage (System): 230/400 V AC
• Protection Class (Kit): IP2XC
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100
• Number of PE/N Terminals: 2x PE, 2x N
• Terminal Cross-Section (Main): 2.5 - 25 mm²
• Terminal Cross-Section (Auxiliary): 1.5 - 4 mm²
• Colour: Grey / White

Recommendations

For optimal performance, use with Hager Univers Z distribution boards and compatible eHZ meters. Ensure proper installation by a qualified electrician in accordance with local regulations.
