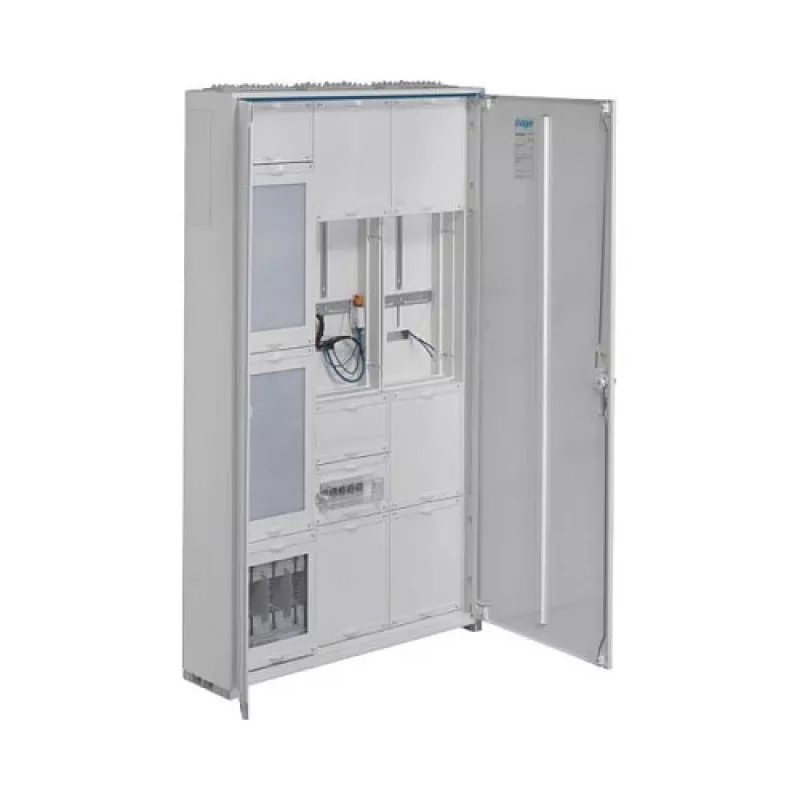

Hager FP93W6N quadro de contadores com transformador até 250A IP44 1400x800x205mm

The Hager FP93W6N transformer metering cabinet is a robust and reliable solution for indirect metering applications (Wandlermessung). Designed for surface or partially recessed mounting, this cabinet offers a high ingress protection rating of IP44, making it suitable for indoor and sheltered outdoor environments. With a maximum rated current of 250A and a rated operating voltage of 400V AC, it is ideal for commercial and industrial installations where current transformers are used.

Advantages

This cabinet provides ample space for metering and distribution equipment, featuring one metering field for current transformers and three distribution fields with 12 rows each. The double-door design with a standard lock ensures secure access, while the top and bottom cable entries with flange plates facilitate easy wiring. The light grey (RAL 7035) sheet steel construction offers durability and a professional appearance.

Suitable for

• Indirect metering installations (Wandlermessung) in commercial buildings
• Industrial power distribution up to 250A
• Surface or partially recessed mounting applications
• Environments requiring IP44 protection against dust and splashing water

Key specifications

• Product Type: Transformer Metering Cabinet
• Series: univers Z
• Max. Rated Current: 250 A
• Ingress Protection: IP44
• Mounting: Surface-mounted / Partially recessed
• Material: Sheet steel
• Colour: RAL 7035 (Light Grey)
• Protection Class: I
• Rated Operating Voltage: 400 V AC
• Number of Metering Fields: 1
• Number of Distribution Fields: 3
• Number of Rows per Distribution Field: 12
• Door Type: Double door
• Lock Type: Standard lock with key
• Cable Entry: Top and bottom, with flange plates
• Standards: DIN VDE 0603-1, DIN 43870-1
• Dimensions: 1400 x 800 x 205 mm (H x W x D)

Recommendations

For optimal performance, ensure that the cabinet is installed by a qualified electrician and that all local regulations are followed. Pair with Hager current transformers and distribution boards for a complete metering solution.
