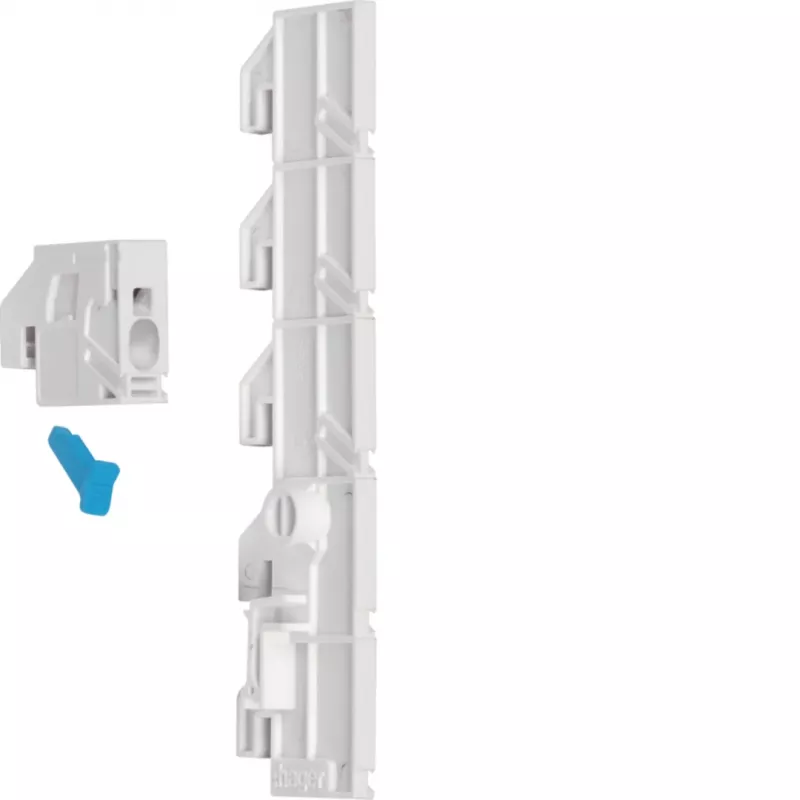

Hager K96ESA1 adaptador de alimentação 1-25 mm²

The Hager K96ESA1 Feed-in Adapter is a high-quality component designed for reliable busbar connections in electrical distribution systems. It enables secure and efficient power feed-in for Hager K96S busbar systems, ensuring optimal performance and safety.

Advantages

Easy clip-on mounting directly onto the busbar saves installation time. Screw terminal connection accommodates solid, stranded, and fine-stranded conductors from 1 to 25 mm², providing flexibility for various wiring needs. Rated for up to 63 A and 400 V AC, it supports demanding applications. Compact design with IP20 protection ensures safe operation in indoor environments.

Suitable for

• Feed-in connections in Hager K96S busbar systems
• Distribution boards and sub-distribution units
• Commercial and industrial electrical installations

Key specifications

• Product Type: Feed-in Adapter
• Application: Busbar Connection
• Compatible Busbar System: Hager K96S
• Number of Poles: 1-pole
• Conductor Cross-section: 1 mm² to 25 mm²
• Conductor Type: Solid, Stranded, Fine-stranded
• Connection Type (Conductor): Screw Terminal
• Connection Type (Busbar): Clip-on
• Rated Current (Max): 63 A
• Rated Operational Voltage (Ue): 400 V AC
• Rated Insulation Voltage (Ui): 500 V
• Degree of Protection: IP20
• Material: Insulating Plastic, Copper
• Color: Grey
• Mounting: Direct on Busbar
• Tightening Torque: 2.5 Nm
• Standard: EN 60947-7-1
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C

Recommendations

For optimal performance, ensure the busbar system is de-energized during installation. Use appropriate tightening torque to secure conductors. This adapter is ideal for expanding or upgrading existing Hager K96S distribution systems.
