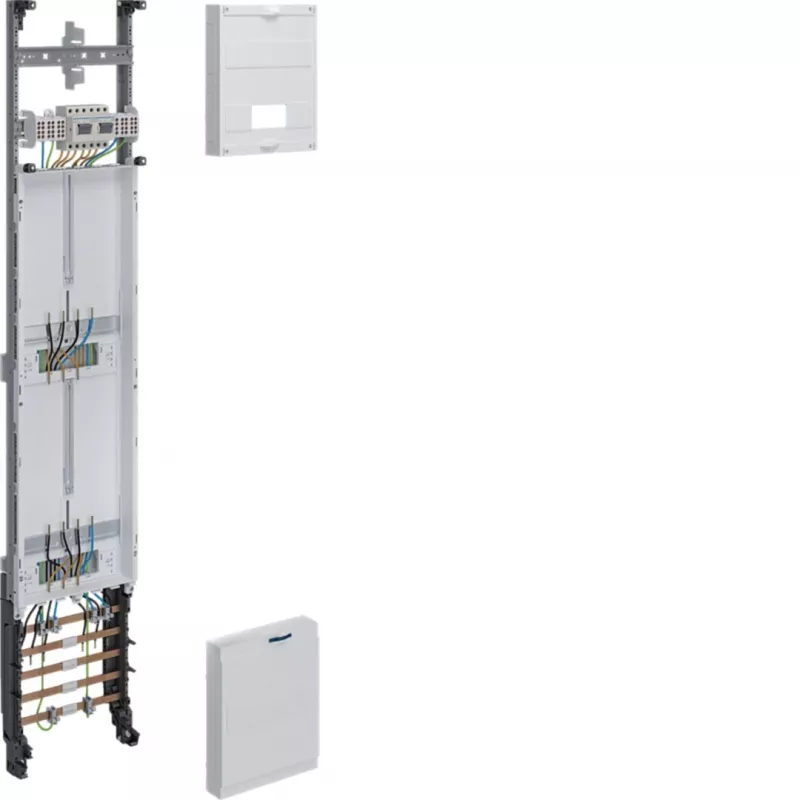

Hager Quadro de contadores completo Z 1350x250mm trifásico 2 lugares de contador 10mm² com função de corte

Electricians and panel builders installing a multi-tenant residential or commercial distribution system will find this Hager complete meter field an efficient, pre-wired solution. It accommodates two electronic household meters (eHZ) in a 3-phase configuration, with a 5-pole main busbar rated for 63 A and an integrated isolating function. The 1350 x 250 mm galvanized steel enclosure includes an APZ field for smart meter gateway space and is prepared for surge protection, reducing on-site assembly time.

Key specifications

• Number of meter positions: 2 (eHZ compatible)
• Phases: 3-phase, nominal voltage 230/400 V AC
• Nominal current: 63 A, connection cross-section 10 mm²
• Main busbar system: 5-pole, 63 A current carrying capacity
• Integrated isolating function (main switch/isolator)
• APZ field for smart meter gateway integrated
• Distribution rows: 7 (including APZ and reserve space)
• Material: galvanized steel sheet, screw mounting
• Fully pre-wired for quick installation
• Prepared for overvoltage protection (SPD)
• Standards: DIN VDE 0603-1, DIN 43870-1
• Dimensions: height 1350 mm, width 250 mm

Why choose it

This meter field streamlines installation by arriving fully pre-wired and ready to mount. The integrated isolator and APZ field meet modern smart metering requirements without extra components. Its galvanized steel construction ensures durability in demanding environments, while the 10 mm² connection cross-section supports robust 63 A service. The 7-row layout provides ample space for circuit breakers and reserve capacity, making it a future-proof choice for residential and light commercial applications.

Ideal use cases

• Multi-tenant residential buildings with two separate metering points
• Small commercial installations requiring eHZ meter integration
• Upgrades to smart metering infrastructure with APZ space
• Distribution boards where a main isolator is needed at the meter field
• Projects requiring compliance with DIN VDE 0603-1 and DIN 43870-1

Good to know

The field is designed for screw mounting inside a suitable cabinet or enclosure. It is prepared for a surge protection device (SPD), but the SPD itself must be ordered separately. Always verify local regulations and utility requirements before installation. The product is part of the Hager Z-series, ensuring compatibility with other Z-series components.
