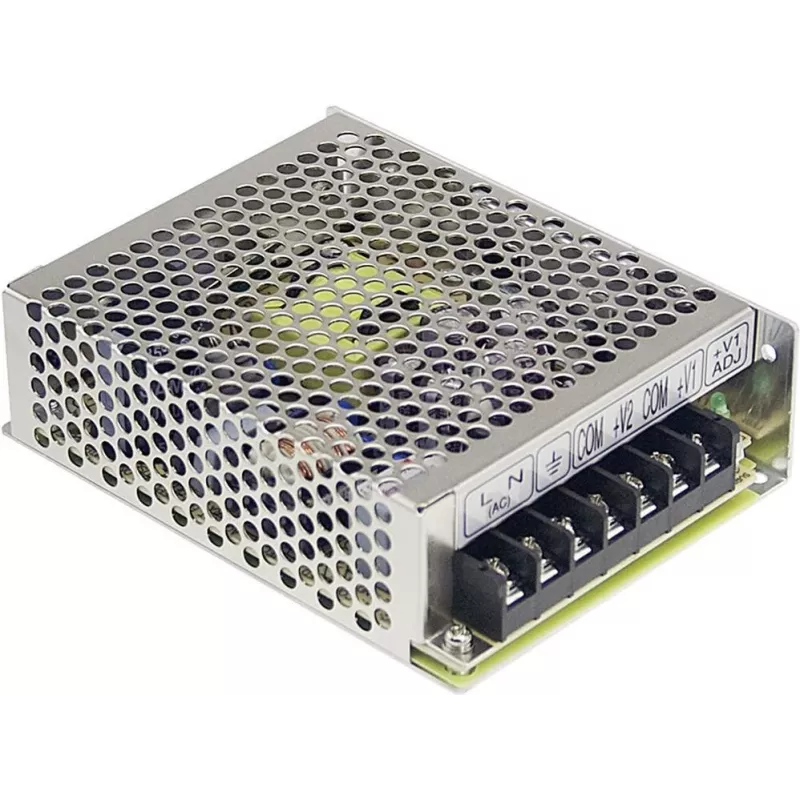

MEAN WELL RD-50A fonte de alimentação AC/DC de 54W com saída dupla 5V/6A + 12V/2A, entrada 88-264VAC, montagem em chassis, proteção contra sobrecarga/sobretensão/curto-circuito

The RD-50A stands apart from typical open-frame power supplies by combining two tightly regulated outputs in a compact, chassis-mountable package. With 5 V and 12 V rails delivering up to 54 W total, it eliminates the need for separate converters in mixed-voltage systems. Its universal AC input and wide operating temperature range make it a reliable choice for industrial control panels, automation equipment, and embedded electronics where space and dependability matter.

Highlights

• Dual output: +5 VDC (0.5–6 A) and +12 VDC (0.2–2 A) with combined 54 W maximum power
• Universal input voltage: 88–264 VAC (47–63 Hz) or 125–373 VDC, suitable for global use
• High efficiency up to 79% and 60 ms hold-up time at full load for stable operation
• Comprehensive protection: overload, overvoltage, and short circuit safeguards
• Free air convection cooling – no fan, silent and maintenance-free
• Wide operating temperature range: -25°C to +70°C
• Safety certifications: UL60950-1, TUV EN60950-1, CB, CE

In daily use

Installation is straightforward thanks to the chassis-mount design and screw terminal connections. The unit operates silently without forced air cooling, making it ideal for noise-sensitive environments. Its robust protection features guard against common electrical faults, reducing downtime and protecting downstream components. Whether powering microcontrollers, sensors, or small motors, the RD-50A delivers clean, stable DC output even under varying load conditions.

Full specifications

• Brand: MEAN WELL
• Model: RD-50A
• MPN: RD-50A
• EAN: 4021087014922
• Product type: AC & DC Power Supply
• Power supply type: Switching Power Supply
• Output power: 54 W
• Output type: Dual Output
• Output voltage 1: +5 VDC
• Output current 1: 0.5–6 A
• Output voltage 2: +12 VDC
• Output current 2: 0.2–2 A
• Input voltage range: 88–264 VAC / 125–373 VDC
• Input frequency range: 47–63 Hz
• Efficiency: 79%
• Hold-up time: 60 ms (at full load)
• Protection: Overload, Overvoltage, Short Circuit
• Cooling: Free air convection
• Operating temperature: -25°C to +70°C
• Mounting type: Chassis mount
• Certifications: UL60950-1, TUV EN60950-1, CB, CE
• Colour: Silver

Final note

For engineers and integrators seeking a dependable dual-output supply without the complexity of modular systems, the MEAN WELL RD-50A offers a proven, certified solution that fits into tight spaces and harsh environments.
