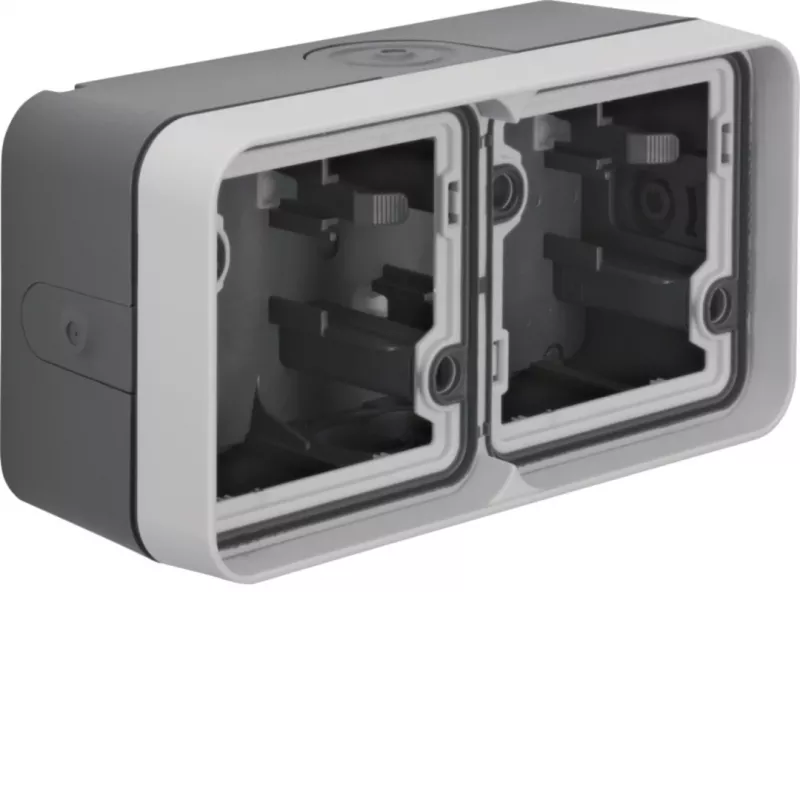

Hager WNA685 caixa de encastrar parte inferior 2 módulos horizontal com moldura 4 entradas de cabo IP55 branco polar

The Hager WNA685 is a high-quality surface-mounted enclosure base designed for professional electrical installations. This 2-gang horizontal unit comes with an integrated frame and four cable entries, providing a robust and flexible solution for mounting switches, sockets, and push-buttons. Manufactured from durable thermoplastic, it offers reliable protection and a clean aesthetic in polar white.

Advantages

This enclosure base ensures easy installation and long-lasting performance. Its IP55 rating protects against dust and water jets, making it suitable for demanding environments. The halogen-free material enhances safety, while the IK07 impact resistance provides mechanical robustness. The integrated frame simplifies mounting, and the four cable entries allow for flexible wiring configurations.

Suitable for

• Surface-mounted electrical installations in residential and commercial buildings
• Mounting switches, sockets, and push-buttons in a 2-gang horizontal layout
• Applications requiring IP55 ingress protection and IK07 impact resistance
• Environments where halogen-free materials are required for safety

Key specifications

• Product Type: Enclosure Base
• Mounting Type: Surface-mounted (AP)
• Number of Gangs: 2-gang
• Mounting Orientation: Horizontal
• Ingress Protection: IP55
• Material: Thermoplastic
• Colour: Polar White
• Number of Cable Entries: 4
• Integrated Frame: Yes
• Halogen-free: Yes
• Impact Resistance: IK07
• Glow Wire Test: 850 °C
• Operating Temperature Range: -25 to +45 °C
• Suitable For: Switches, Sockets, Push-buttons
• Series: Hager WNA

Recommendations

For a complete installation, pair this enclosure base with compatible Hager switch and socket mechanisms. Ensure proper cable entry sealing to maintain IP55 protection. This product is ideal for both new builds and retrofits where surface mounting is required.
