Hager Y88M feixe de cabos de saída universZ 5 polos 10mm² L1/L2/L3 575mm N/PE 1100mm

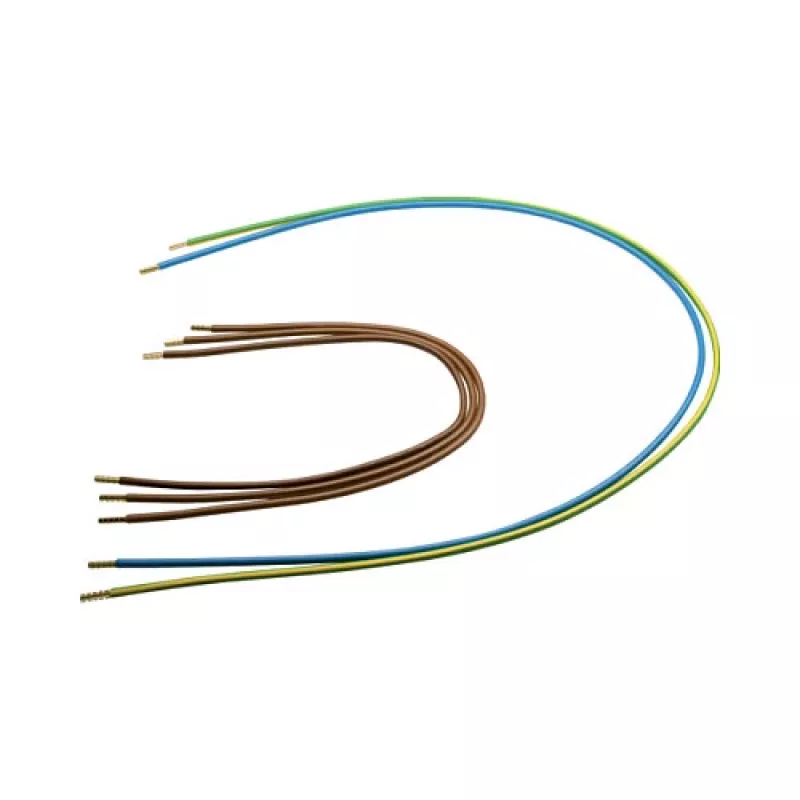

The Hager Y88M is a pre-assembled outgoing cable harness for the universZ distribution board system. Unlike generic wiring sets, it provides exact conductor lengths for L1, L2 and L3 at 575 mm, and N and PE at 1100 mm, simplifying internal connections in switchgear.

Highlights

• 5-pole configuration: 3 phases (L1, L2, L3), neutral (N) and protective earth (PE)
• Conductor cross-section: 10 mm² copper
• Pre-assembled for quick installation in Hager universZ panels
• Rated voltage: 400 V AC
• Conductor lengths: L1/L2/L3 = 575 mm; N/PE = 1100 mm

In daily use

This cable harness reduces wiring time and errors in distribution boards. The differentiated lengths for phase and neutral/earth conductors match typical busbar positions, ensuring a neat and reliable connection. It is intended for internal wiring within enclosures and switchgear systems.

Full specifications

• Product type: Outgoing cable harness / feeder cable set
• System compatibility: Hager universZ
• Number of poles: 5
• Conductor cross-section: 10 mm²
• Conductor material: Copper
• Insulation material: PVC
• Rated voltage: 400 V AC
• Conductor length L1: 575 mm
• Conductor length L2: 575 mm
• Conductor length L3: 575 mm
• Conductor length N: 1100 mm
• Conductor length PE: 1100 mm
• Application: Electrical distribution boards, switchgear
• Mounting type: Internal wiring for panel/enclosure systems
• Pre-assembled: Yes
• Standards: IEC/EN compliant

Final note

The Y88M is a specific spare part for Hager universZ systems. Verify compatibility with your panel model before ordering.
