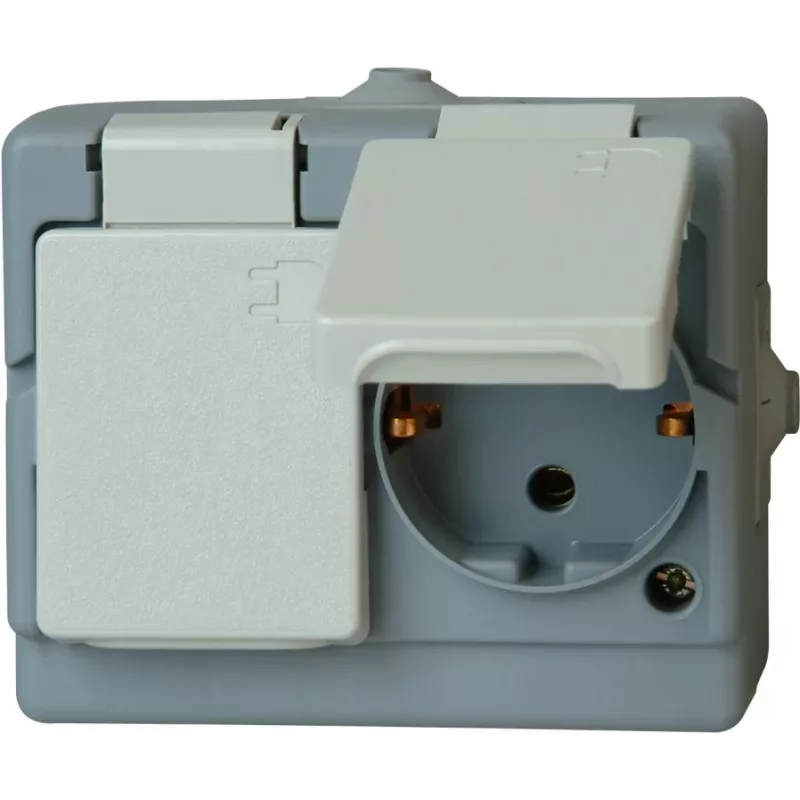

HEINRICH KOPP Tomada Schuko dupla de sobrepor IP44, pré-cablada, horizontal, cinzento 1302.4800.6

In damp rooms, garages, basements, or protected outdoor areas, a standard socket outlet may not withstand moisture and dust. This HEINRICH KOPP double socket outlet is built for such environments, providing two Schuko sockets in a surface-mounted, IP44-rated housing. The unit is pre-wired internally, simplifying installation.

Who is it for

Electricians and DIYers needing a robust, moisture-protected power solution for utility spaces or sheltered outdoor locations.

Main features

• Two Schuko sockets (Type F, CEE 7/3) with earthing contacts
• IP44 ingress protection against splashing water and solid objects
• Surface-mounted design with horizontal socket orientation
• Internally pre-wired for quick connection
• Rated for 250 V AC, 16 A, 50/60 Hz
• Thermoplastic housing with screw terminals

Specifications

• Product type: Double socket outlet
• Mounting type: Surface-mounted
• IP rating: IP44
• Socket standard: Schuko (Type F, CEE 7/3)
• Number of sockets: 2
• Socket orientation: Horizontal
• Pre-wired: Yes (internally)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Material: Thermoplastic
• Earth contact: Yes
• Certification: VDE (expected)

Tips

Ensure the mounting surface is flat and stable. For outdoor use, install under a canopy or other shelter to maximize protection. Always disconnect power before installation.
