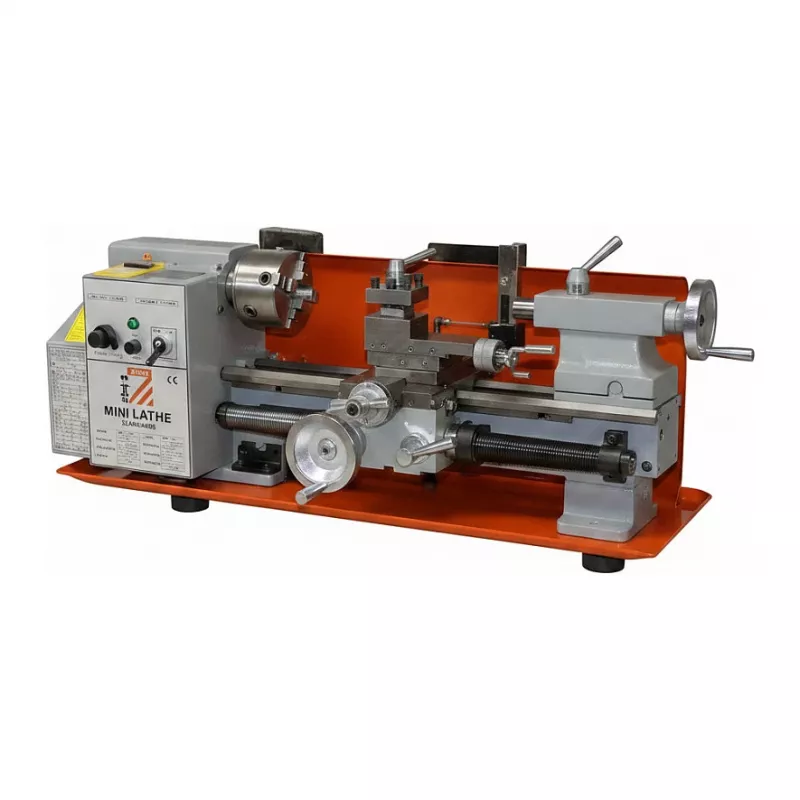

Holzmann ED300ECO 230V torno de bancada

The Holzmann ED300ECO is a compact and powerful bench lathe designed for precision turning of small to medium workpieces. With its infinitely variable speed control and robust construction, it is ideal for hobbyists, model makers, and light industrial use. The lathe features a 450W motor, 230V operation, and a maximum turning diameter of 180 mm over the bed. Its 300 mm distance between centers allows for versatile turning lengths. The ED300ECO comes equipped with a 3-jaw chuck (80 mm diameter) and supports both metric and inch threading. This machine is built to deliver reliable performance and accuracy in a space-saving design.

Advantages

Infinitely variable spindle speed from 50 to 2500 rpm for optimal cutting conditions. Compact footprint suitable for small workshops. High-quality cast iron construction ensures stability and vibration damping. Easy-to-read scales and smooth handwheels for precise adjustments. Includes a comprehensive set of change gears for threading operations.

Suitable for

• Model making and prototyping
• Repair and maintenance tasks
• Light production turning
• Educational workshops

Key specifications

• Motor Power (S1): 450 W
• Voltage: 230 V / 50 Hz
• Max. Turning Diameter (Swing over bed): 180 mm
• Max. Turning Length (Distance between centers): 300 mm
• Spindle Bore: 20 mm
• Spindle Taper: MK3
• Tailstock Taper: MK2
• Spindle Speed Range: 50 - 2500 rpm
• Number of Spindle Speeds: Infinitely variable
• Cross Slide Travel: 65 mm
• Compound Slide Travel: 35 mm
• Metric Thread Range: 0.5 - 3 mm (10 steps)
• Inch Thread Range: 8 - 48 TPI (8 steps)
• Tailstock Quill Travel: 50 mm
• Max. Tool Shank Size: 8 x 8 mm
• Chuck Diameter: 80 mm (3-jaw)

Recommendations

For optimal performance, use high-speed steel or carbide-tipped tools. Ensure the lathe is securely mounted on a sturdy workbench. Regularly lubricate sliding surfaces and check belt tension. Always wear appropriate safety equipment when operating the machine.
