InLine 33456C tampa para baía de unidade 8,89 cm (3,5 polegadas) tampa para portas I/O preta

Powerful USB connection on the front:Two USB-A and two USB-C ports with USB 3.2 Gen.2 support data transfers of up to 10 Gb/s – ideal for fast peripheral devices.
Easy integration into existing systems:Connection is made directly via USB Type-E header and SATA power – for reliable power supply and full compatibility.
Robust metal housing for continuous operation:The sturdy black housing provides reliable protection during intensive use in workstations and industrial PCs.
High operational reliability:Protection mechanisms against overvoltage and overcurrent ensure safe operation even under high loads.
Driverless use under Windows and Linux:Plug & Play compatibility facilitates integration into a wide range of IT environments.

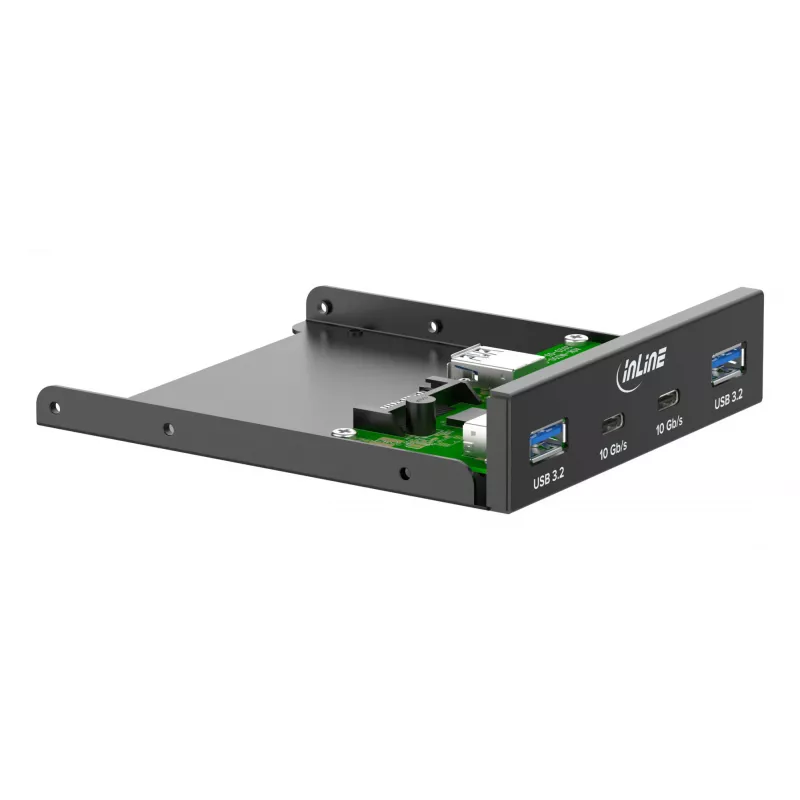

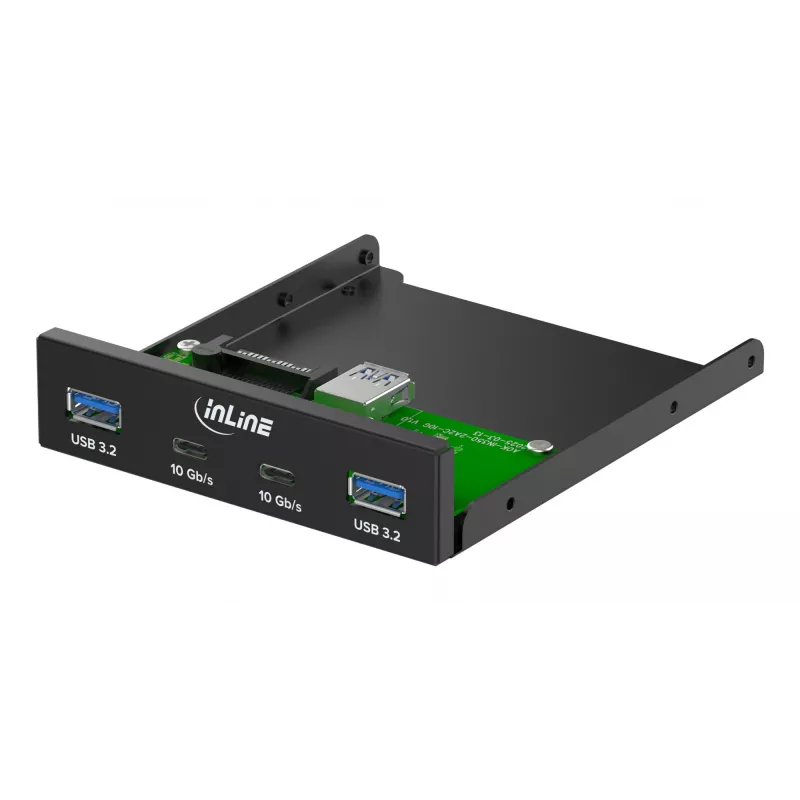

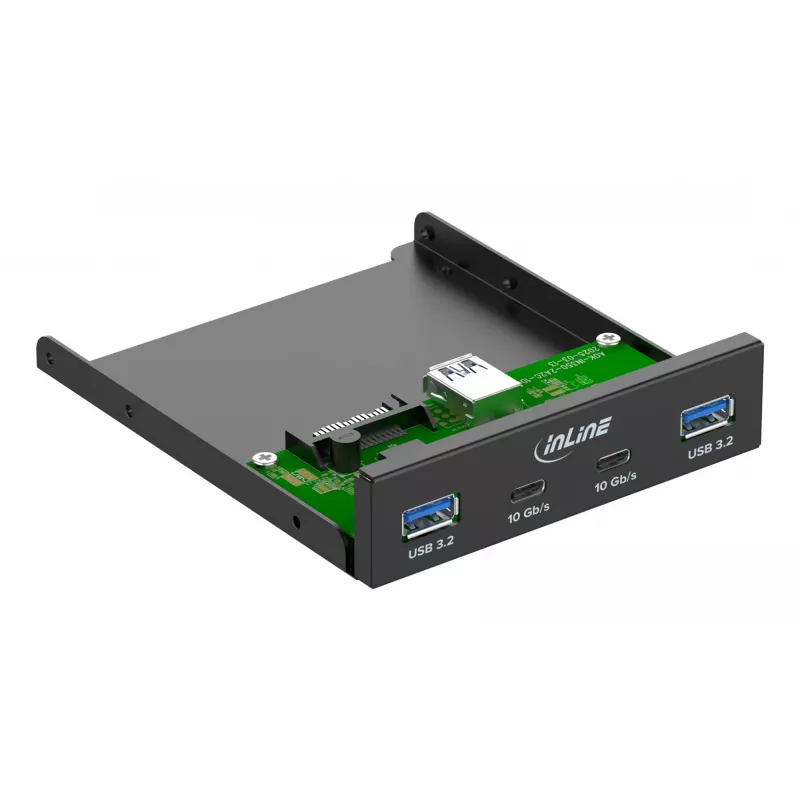

The InLine® 3.5" front panel with two USB-A 3.2 Gen.2 and two USB-C 3.2 Gen.2 ports offers professional users a powerful interface for front-panel use. With transfer rates of up to 10 Gb/s per port, the module is ideal for use in work environments with frequent connection of high-speed peripherals such as external SSDs or data carriers.

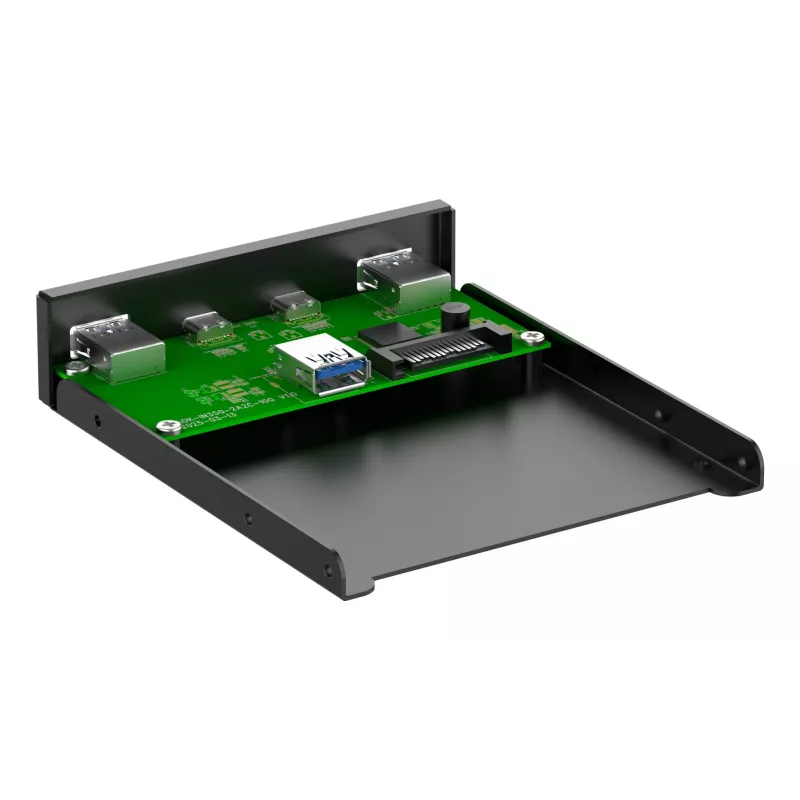

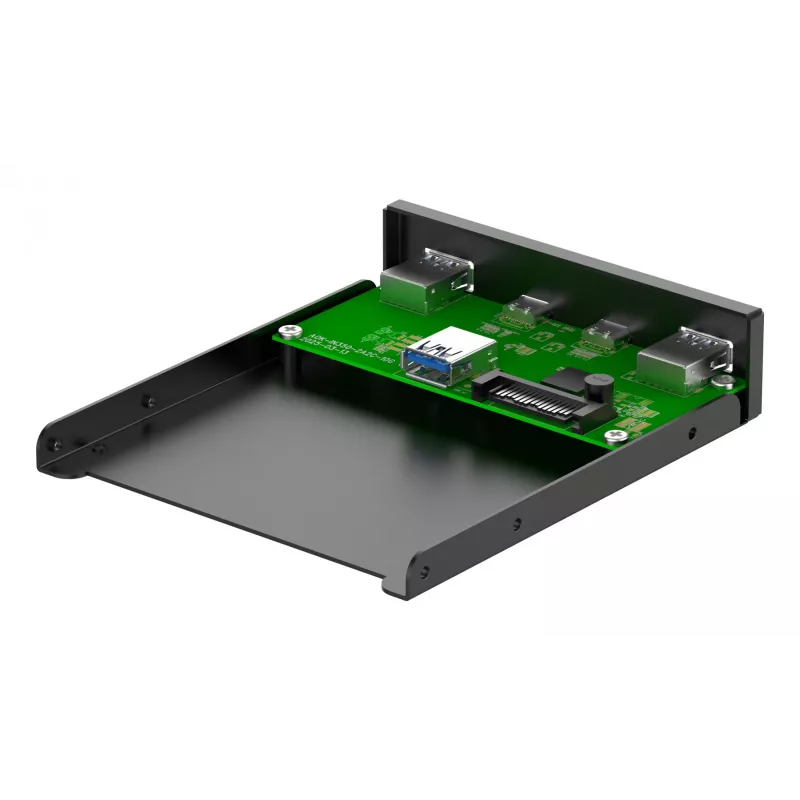

Installation is via an internal USB Type-E connection and an additional SATA power supply. This ensures stable operation even with devices with increased power requirements.
Thanks to the integrated VL822 chipset and protection mechanisms against overvoltage and overcurrent, the panel is optimally designed for use in demanding system environments. The black metal housing fits exactly into 3.5" drive bays and offers a durable solution for workstations, industrial PCs or IT service stations.
Plug & Play support under Windows and Linux further simplifies integration.

Chipset: VL822
Housing material: Metal
Colour: Black
Standby power consumption: 0.45 W
Operating temperature: 0 °C to +70 °C
Storage temperature: -40 °C to +125 °C
Dimensions: 120.5 x 102.2 x 25.5 mm
Weight: 156 g
Input: 1x USB-A socket, 1x SATA 15-pin power connector

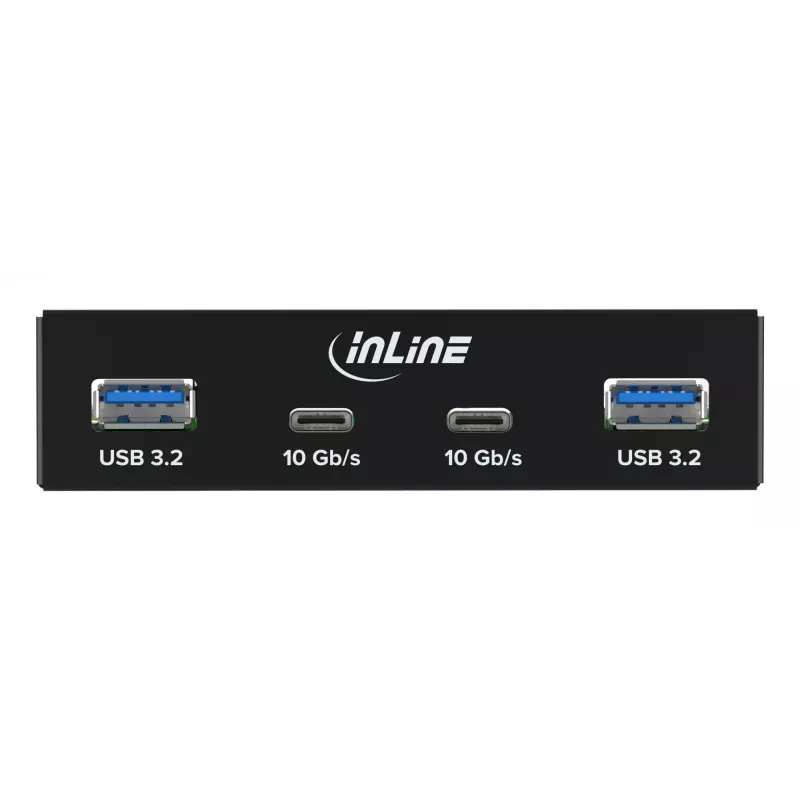

Output: 2x USB-A 3.2 Gen.2, 2x USB-C 3.2 Gen.2

Scope of delivery

1x InLine 3.5" front panel with 2x USB-A, 2x USB-C, 10 Gb/s

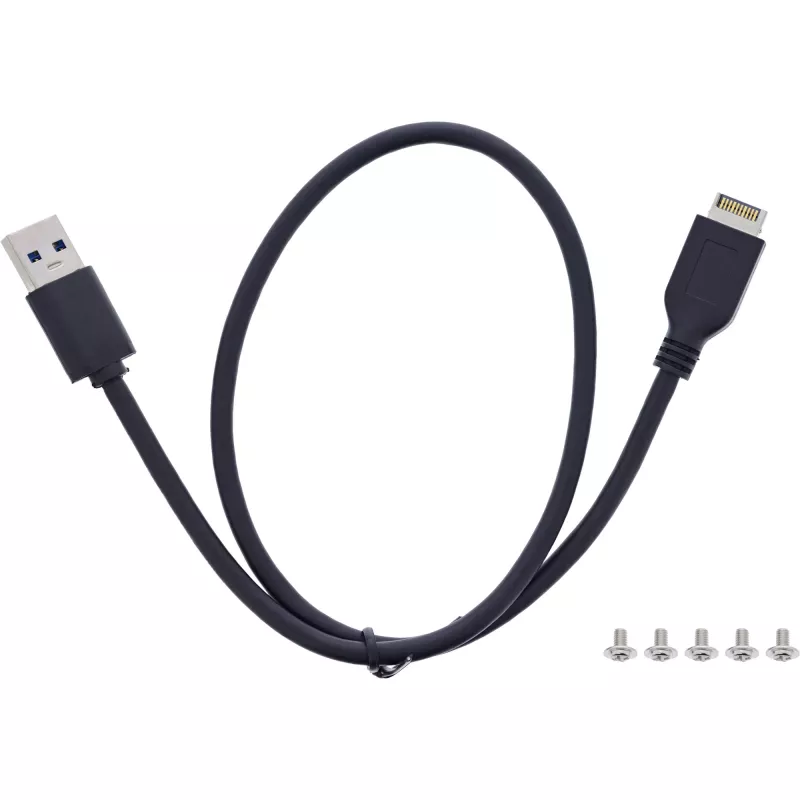

1x USB-A to Type-E cable, 0.5 m
5x screws
1x user manual in German/English

InLine 33456C. Size (imperial): 8.89 cm (3.5"), Type: I/O ports panel, Product colour: Black. Width: 100 mm, Depth: 120 mm, Height: 26 mm. Package width: 140 mm, Package weight: 231 g. Cables included: USB. Package volume: 700 cm³, Country of origin: Taiwan

How to use

Install the panel into a free 3.5" drive bay and secure it with the supplied screws. Connect the internal USB Type-E cable to the motherboard header and attach the SATA 15-pin power connector to the system power supply to provide stable power to connected devices. After power-up the panel is recognised automatically under Windows and Linux without additional drivers; connect USB devices to the front USB-A or USB-C ports for immediate use.

Recommendations

For stable operation with high-power USB devices and multiple simultaneous connections, ensure the SATA power connector is connected to the power supply. Avoid exposure to temperatures outside the specified operating range and mount the panel in a properly ventilated chassis.
