InLine 92504O Conector de cabos IDC 10 / bloco de terminais 5 terminais, verde, cinzento-claro

Time savings during installation:The 5-pin screw terminal block with pressure plate allows for quick, tool-assisted wiring – for wires in the 16–26 AWG range.
Standardized IDC interface with clear pin assignment: The 10-pin socket (2×5) ensures clean signal separation – ideal for structured wiring in test, control, and laboratory applications.
Space-saving PCB solution with logical arrangement:Compact design on a stable PCB for direct integration into housings, adapter panels, or test environments.
Flexible use in industry:Suitable for commissioning, embedded projects, signal distribution, or control lines in digital systems.
High signal quality:Tested insulation resistance up to 300 V AC, rated current 1 A per pin, and 100% short-circuit testing for long-term operational safety.

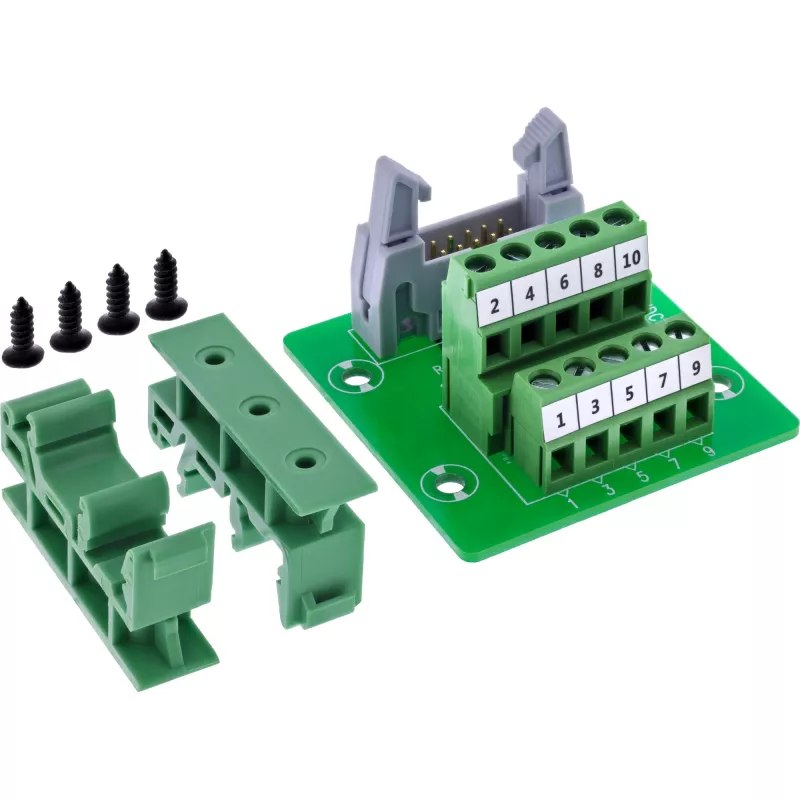

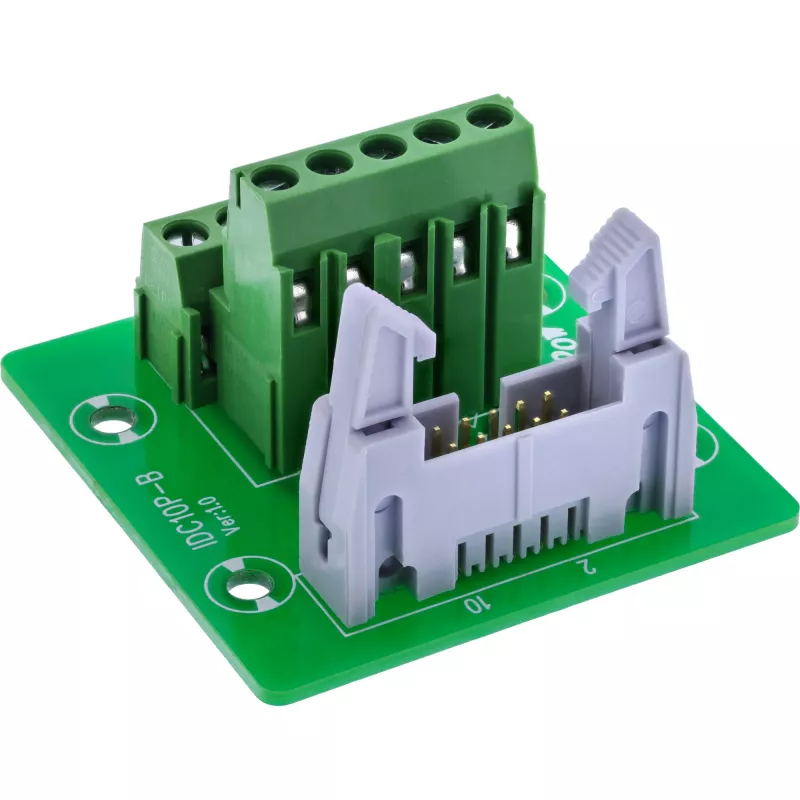

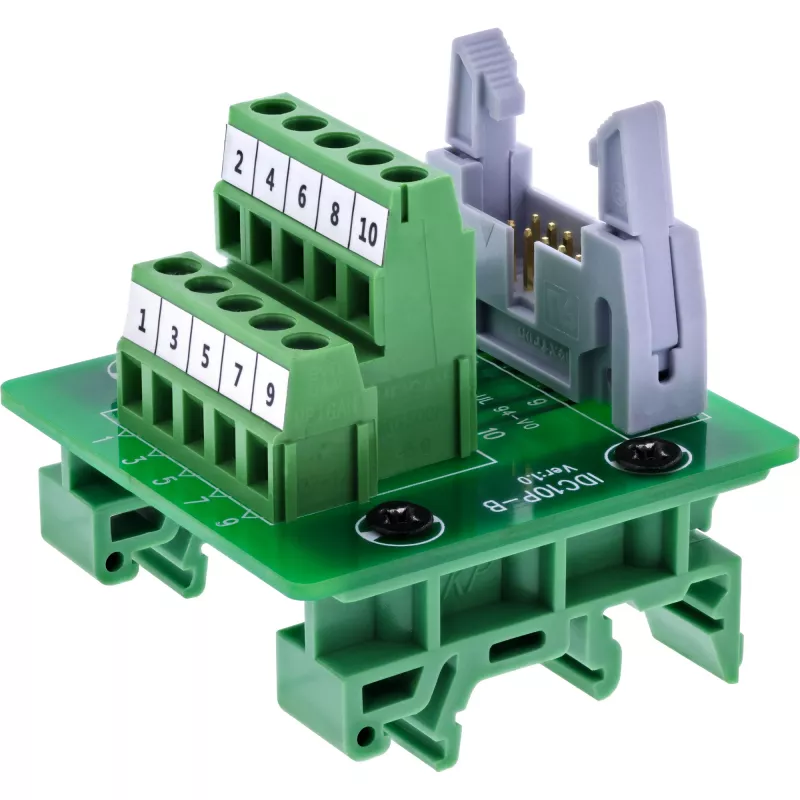

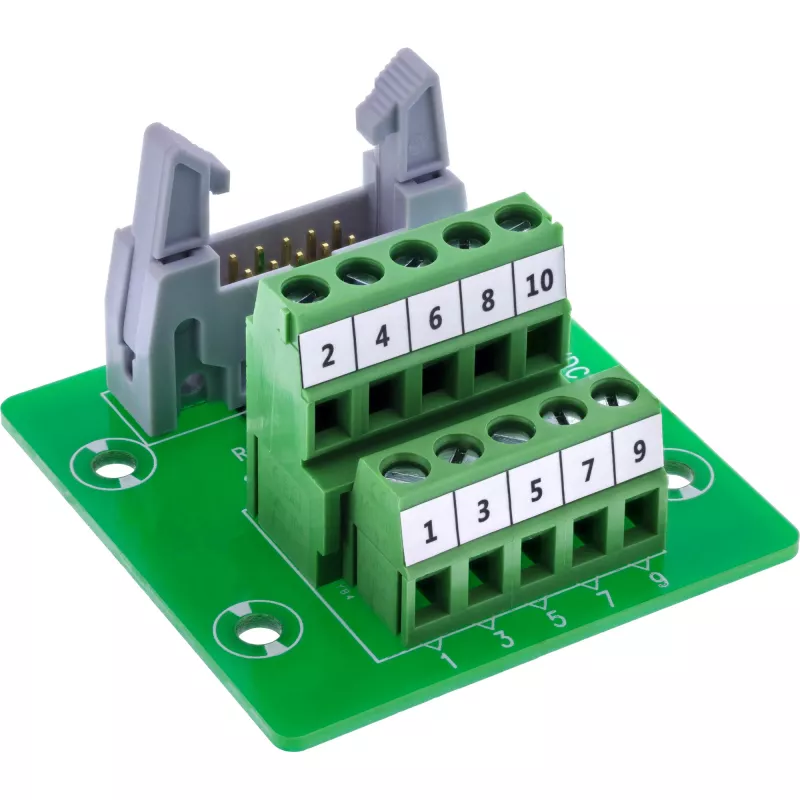

The InLine® IDC-10-to-terminal block adapter with 5-pin screw terminal strip offers a compact solution for connecting digital signals, power lines, or control connections—without soldering. The combination of IDC socket (2×5) and side-accessible terminal strip is mounted on a robust printed circuit board and optimized for industrial environments.
The screw terminals (5.0 mm pitch) are clearly labeled and support stranded wires in the range of 16–26 AWG. Tool-assisted wiring is performed using a flat-blade screwdriver ≤ 2.5 mm. An EVA insulating layer provides protection during installation on conductive surfaces. With 100% short-circuit testing and high insulation values, the adapter is ideal for test systems, control devices, or embedded applications.

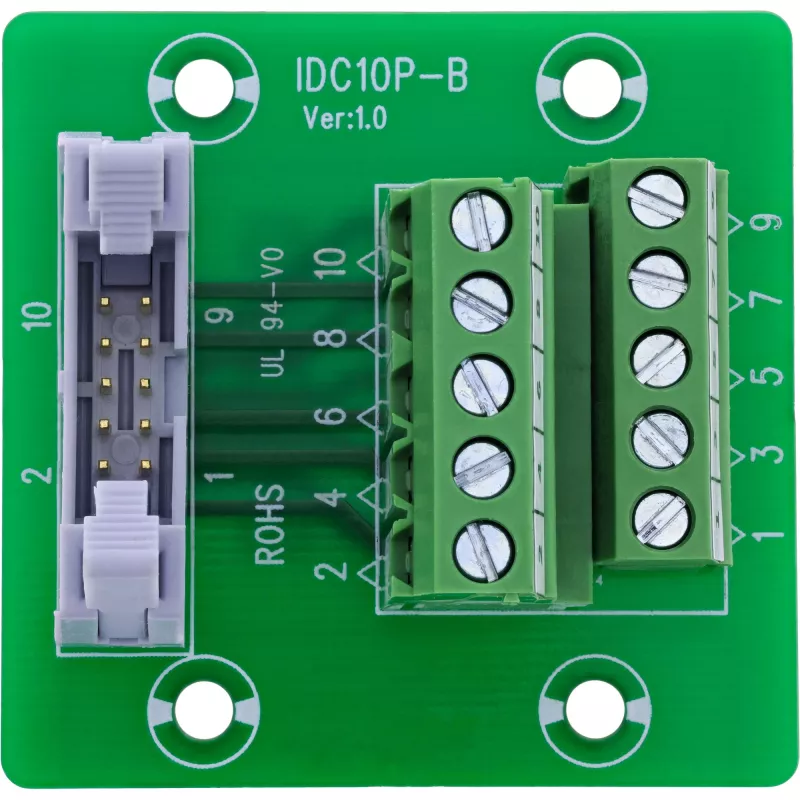

IDC interface:10-pin IDC socket (2×5), pitch 2.54 mm
Screw terminal block:5 terminals, pitch 5.0 mm, with pressure plate
Signal assignment:GND (ground), D0 to D3 (digital signal lines, assignable depending on application)
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Max. conductor resistance:5 ohms
Operating temperature:–10 °C to +70 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 51 × 50 × 29 mm (L × W × H)

InLine 92504O. Connector(s): IDC 10 / Terminal block 5 terminals, Product colour: Green, Light grey, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 50 x 51 x 29 mm, Weight: 30 g, Width: 50 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³, Package type: Polybag. Country of origin: Taiwan

How to use

Insert the mating 10‑pin connector into the IDC socket (2×5) and secure the adapter inside the enclosure or panel as needed. Strip and insert stranded wires (16–26 AWG) into the corresponding screw terminals, ensuring correct assignment of GND and signal lines. Tighten the pressure plate screws using a flat‑blade screwdriver up to 2.5 mm. The EVA insulation on the underside allows safe placement on non‑insulated surfaces.

Recommendations

For reliable long‑term operation, verify correct signal assignment before powering the system, avoid exceeding 1 A per pin or 100 V between signals, and perform routine checks of terminal screws for secure contact in vibration‑exposed installations.
