InLine 94020 conector de cabos Standard4/MC4/PV4 preto ficha/conector fêmea

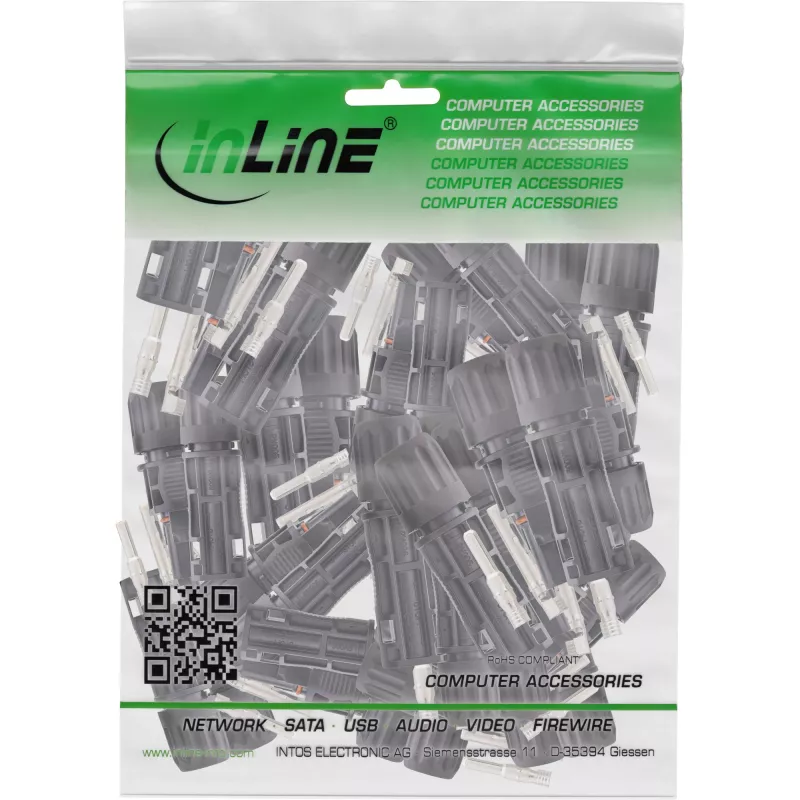

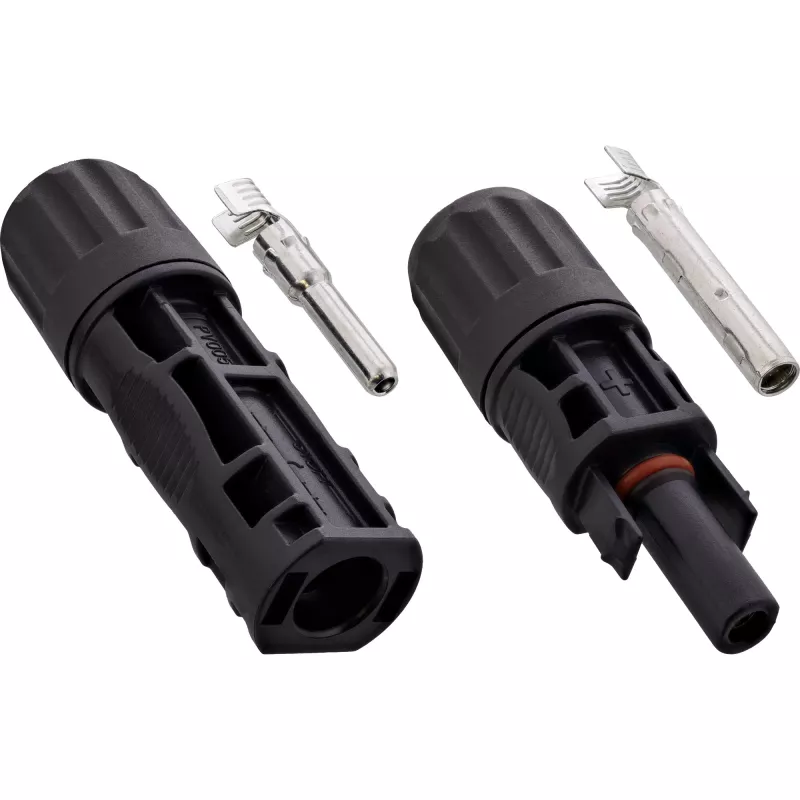

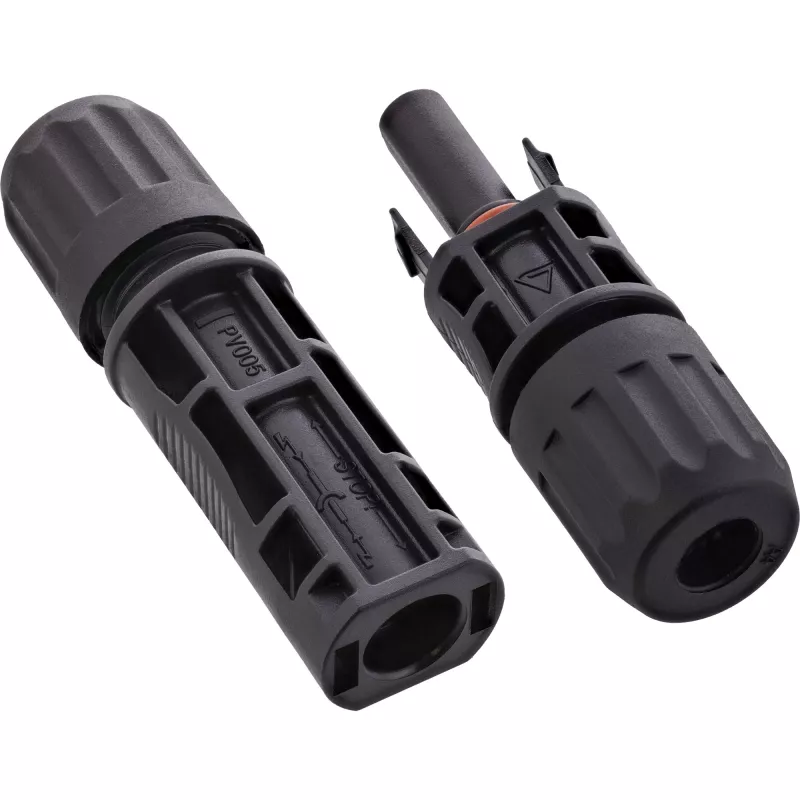

The InLine 94020 wire connector is a photovoltaic plug connector set consisting of male and female plugs compatible with Standard4, MC4 and PV4 systems. Designed for solar panel connections, the black connector set is compact (24 mm width) and lightweight (24 g). It meets TÜV and RoHS standards for safety and environmental compliance.

Advantages

The connector set supports widely used Standard4/MC4/PV4 interfaces to ensure compatibility with many solar cables and modules. Its compact and lightweight construction simplifies handling and installation. Compliance with TÜV and RoHS provides assurance of tested safety and restricted hazardous substances.

Suitable for

Key specifications

How to use

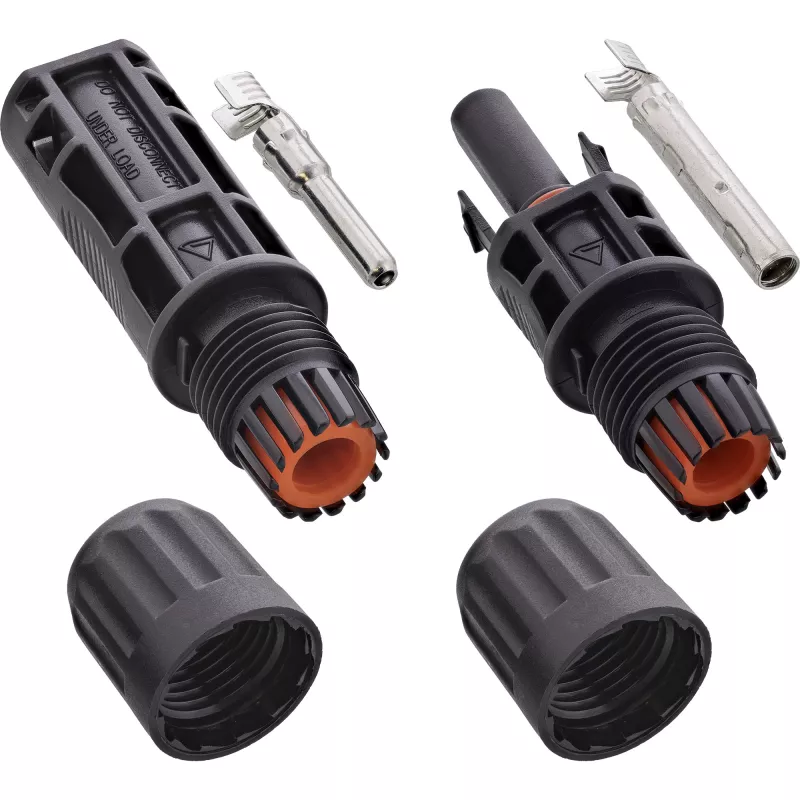

Strip the PV cable to the recommended length, insert conductors into the male and female connector housings and secure according to the connector’s assembly instructions or compatible crimping/screwing method. Ensure correct polarity when mating connectors and verify a firm mechanical and electrical connection before energizing the system. Follow applicable local electrical codes and the solar module manufacturer’s guidelines.

Recommendations

Use the InLine 94020 connectors in dry, clean conditions when possible; inspect seals and contacts periodically and replace any connector showing corrosion or mechanical damage. For permanent outdoor installations, confirm compatibility with cable cross-section and rated current for the intended PV system.
