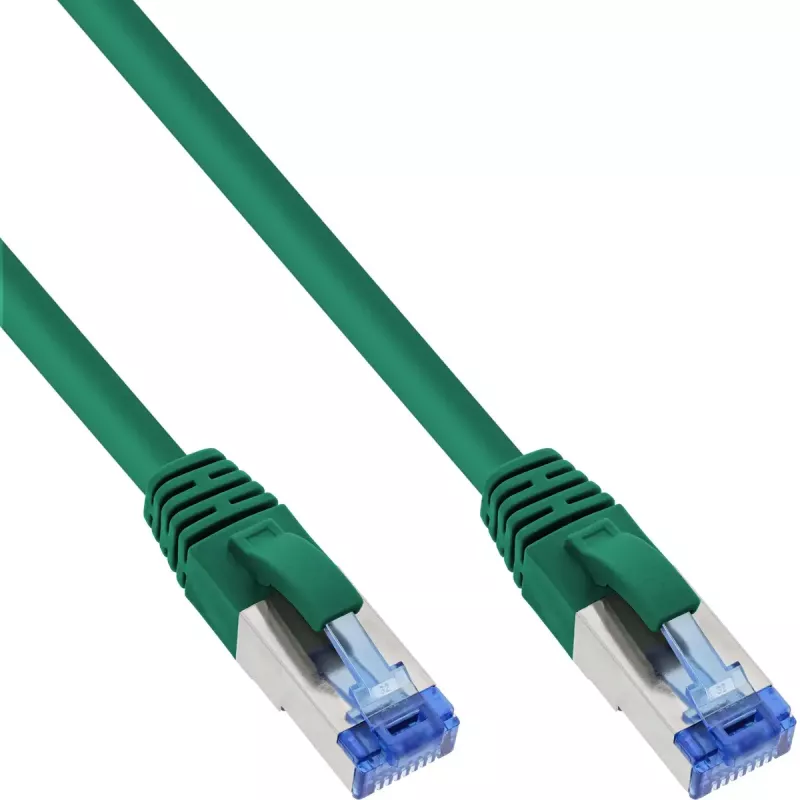

InLine B-76802G Cat6A S/FTP (PiMF) cabo de rede sem halogéneos, 2 m, verde, pack de 40

The InLine B-76802G is a Cat6A S/FTP (PiMF) halogen-free patch cable supplied in a 40-pack. It features a green LSZH sheath and RJ45 connectors with 50µ" gold-plated contacts.

Key features

• Cat6A S/FTP (PiMF) construction with overall braided shield and pair-wise foil shielding
• Halogen-free LSZH sheath compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• RJ45 connectors with 50µ" gold-plated contacts and snap-in protection
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications up to 500MHz
• Includes enclosed test report
• Supports PoE up to 802.3bt (max. 90W)
• 40 pieces packed in a PE bag and outer carton

Specifications

• Brand: InLine
• MPN: B-76802G
• Product colour: Green
• Cable construction: S/FTP (PiMF) 4x2xAWG26/7, solid copper wire
• Conductor material: CU (copper)
• Outer diameter: 6.2mm
• Length: 2m
• Connector type: RJ45 plug straight on both ends
• Assignment: 1:1
• Data transmission rate: 10Gb/s
• Max. supported data transfer rate: 10Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90W
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Assignment according to TIA/EIA 568B2.1
• Country of origin: Taiwan
