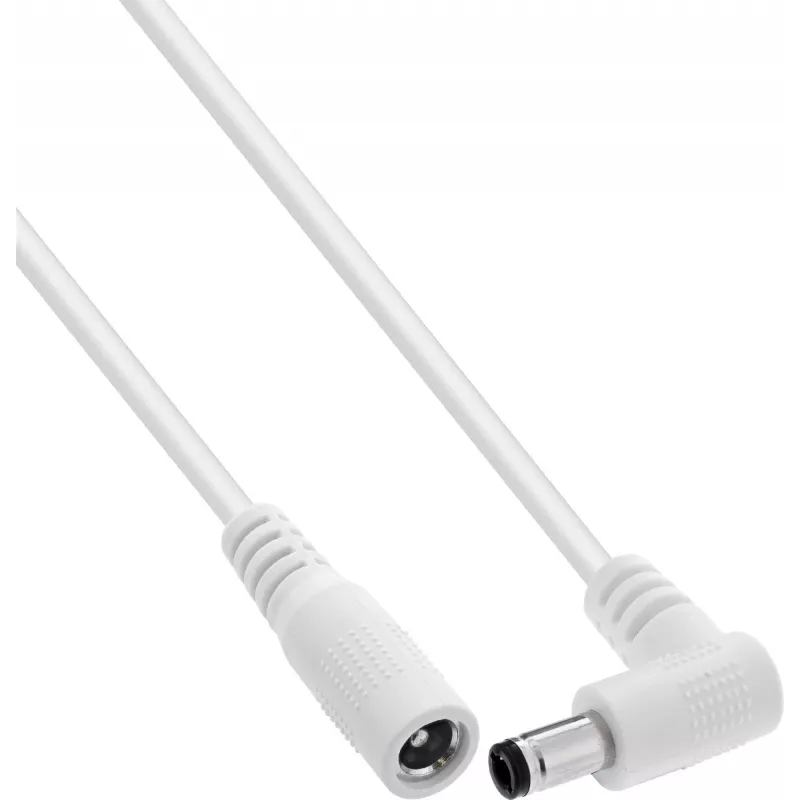

InLine® Cabo de extensão DC, ficha angular, 5,5 x 2,5 mm, branco, 2 m

Power sockets often sit in awkward spots, and standard DC plugs stick out too far, making it impossible to close cabinet doors or keep cables tidy. This 2-metre DC extension cable solves that by placing a right-angle plug at one end, so the cable hugs the wall or device and stays out of the way. The 5.5 x 2.5 mm barrel connectors fit a wide range of low-voltage devices, and the white jacket blends into most interiors.

Who is it for

Anyone who needs to extend the reach of a DC power supply without creating a bulky connection. It is especially useful for CCTV cameras, LED strips, routers, and small electronics where space is tight or the power adapter is mounted behind furniture.

Main features

• Right-angle DC plug on one end for flush mounting in tight spaces
• Straight DC jack on the other end to accept the original power adapter
• 5.5 mm outer diameter, 2.5 mm inner diameter – the most common barrel size
• 2-metre length gives extra flexibility for routing cables
• Centre-positive polarity matches standard DC adapters
• White PVC jacket is durable and easy to conceal

Specifications

• Cable type: DC extension cable
• Length: 2 m
• Connector 1: DC male plug, right-angle, 5.5 x 2.5 mm
• Connector 2: DC female jack, straight, 5.5 x 2.5 mm
• Conductor material: Copper
• Jacket material: PVC
• Max voltage rating: 12V / 24V
• Polarity: Centre positive
• Colour: White
• Certifications: RoHS, CE

Tips

Check the outer and inner diameter of your device's power port before ordering – 5.5 x 2.5 mm is common but not universal. The right-angle plug works best when the cable needs to run parallel to the wall or device surface. For outdoor use, protect the connection from moisture.
