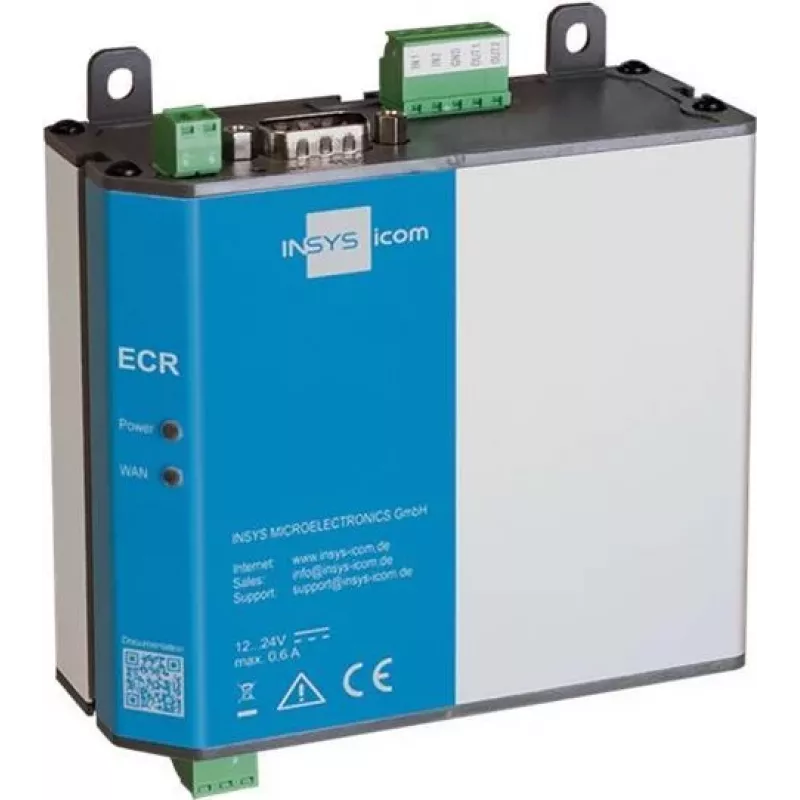

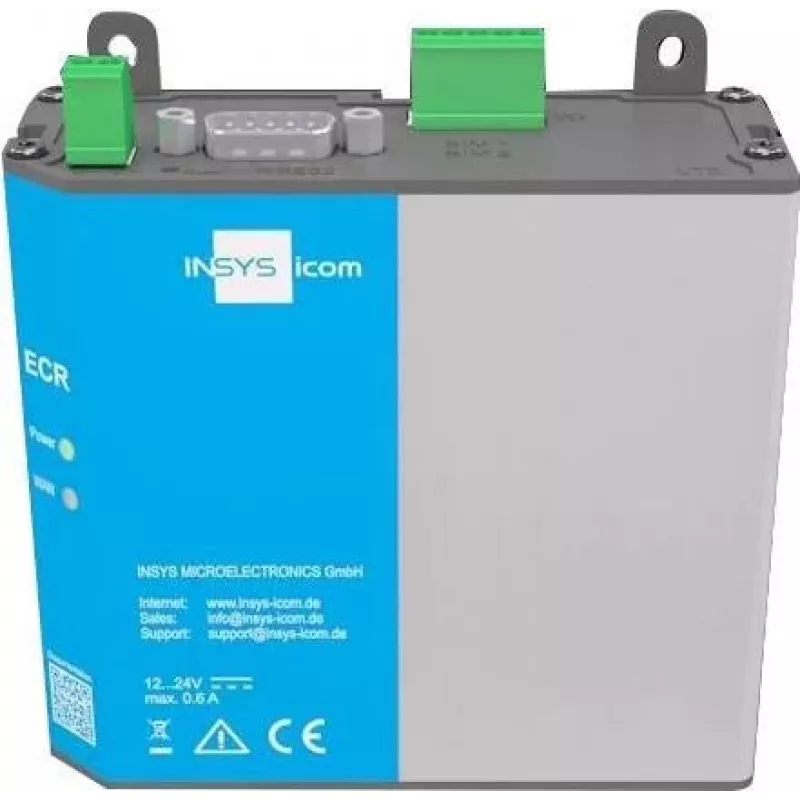

INSYS ECR-EW300 1.0 Router Wi-Fi/LAN-para-LAN 10021493

Industrial networks often struggle with unreliable wireless links and limited connectivity options. The INSYS ECR-EW300 1.0 Wi-Fi/LAN-to-LAN Router solves this by providing robust wireless bridging and routing in a compact metal housing. It connects Ethernet devices over Wi-Fi or LAN, ensuring continuous operation in demanding environments.

Who is it for

System integrators, machine builders, and industrial automation engineers who need to extend or bridge Ethernet networks wirelessly. Ideal for DIN rail mounting in control cabinets, remote monitoring stations, and mobile equipment.

Main features

• 2.4 GHz Wi-Fi 4 (802.11b/g/n) with two RP-SMA antenna connectors for flexible antenna placement.
• Two 10/100 Mbps Ethernet ports configurable as LAN or WAN for versatile network topologies.
• Supports router, bridge, access point, and client modes to fit various network roles.
• Built-in VPN (OpenVPN, IPsec, L2TP, PPTP) and stateful firewall for secure remote access.
• Wide DC input range (10-30 V) and extended operating temperature (-25°C to +70°C) for harsh environments.
• Digital I/O (2 inputs, 1 output) and USB 2.0 host port for peripheral connectivity.
• Management via web GUI, CLI, SNMP, or SSH.

Specifications

• Processor: ARM Cortex-A8, 128 MB RAM, 128 MB Flash
• Wireless: IEEE 802.11b/g/n, 2.4 GHz, WPA/WPA2 security
• Ethernet: 2 x 10/100 Mbps, auto-negotiation
• Power: 10-30 V DC, max 5 W consumption
• Mounting: DIN rail or wall mount
• Housing: Metal, IP30
• Operating temperature: -25°C to +70°C
• Certifications: CE, RoHS

Tips

For optimal wireless performance, use antennas with appropriate gain for your environment. Configure the device as a bridge to connect legacy Ethernet equipment to a Wi-Fi network without changing existing infrastructure.
