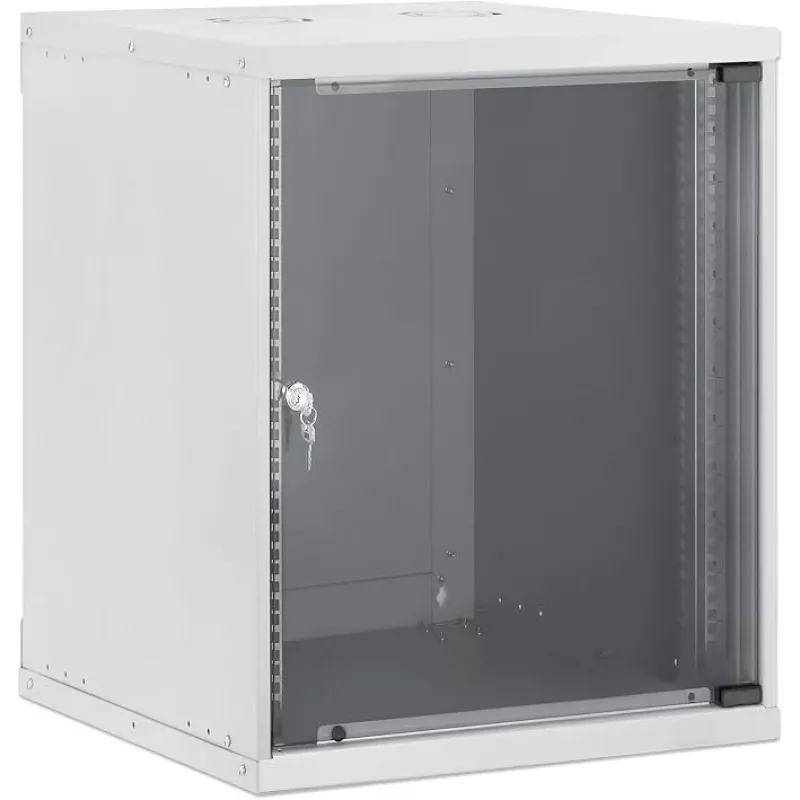

Intellinet Armário de parede 19" Basic Line 12U 560mm de profundidade cinzento 716765

The Intellinet 716765 is a 12U wall-mount cabinet from the Basic Line, offering a 560 mm depth and a grey finish (RAL 9005). Its flat-pack design keeps shipping costs low and allows easy transport to the installation site. The cabinet can be wall-mounted or used freestanding with optional castors, providing flexibility for different network environments.

Highlights

• 12U rack capacity for 19" equipment
• 560 mm depth accommodates standard network gear
• Grey steel construction with tempered glass front door
• Lockable front door and removable side panels for security
• Passive ventilation via perforated top and bottom
• Supports optional castors for mobility

In daily use

This cabinet suits small to medium network installations where space is limited. The tempered glass door allows visual monitoring of equipment status LEDs, while the lockable panels prevent unauthorized access. Cable entry points on top and bottom simplify cable routing. The steel frame supports up to 60 kg of equipment.

Full specifications

• Rack type: Wall mount cabinet
• Rack capacity: 12U
• Rack width: 19 inch
• External dimensions (W x D x H): 600 x 560 x 635 mm
• Material: Steel
• Product colour: Grey
• Front door: Tempered glass, lockable
• Side panels: Removable, lockable
• Mounting options: Wall-mountable, freestanding with optional castors
• Maximum load capacity: 60 kg
• IP protection class: IP20
• Cable entry: Top and bottom
• Ventilation: Passive (perforated top/bottom, optional fan unit support)
• Compliance: RoHS, CE

Final note

The Intellinet 716765 combines affordability with essential features for secure and organized network installations.
