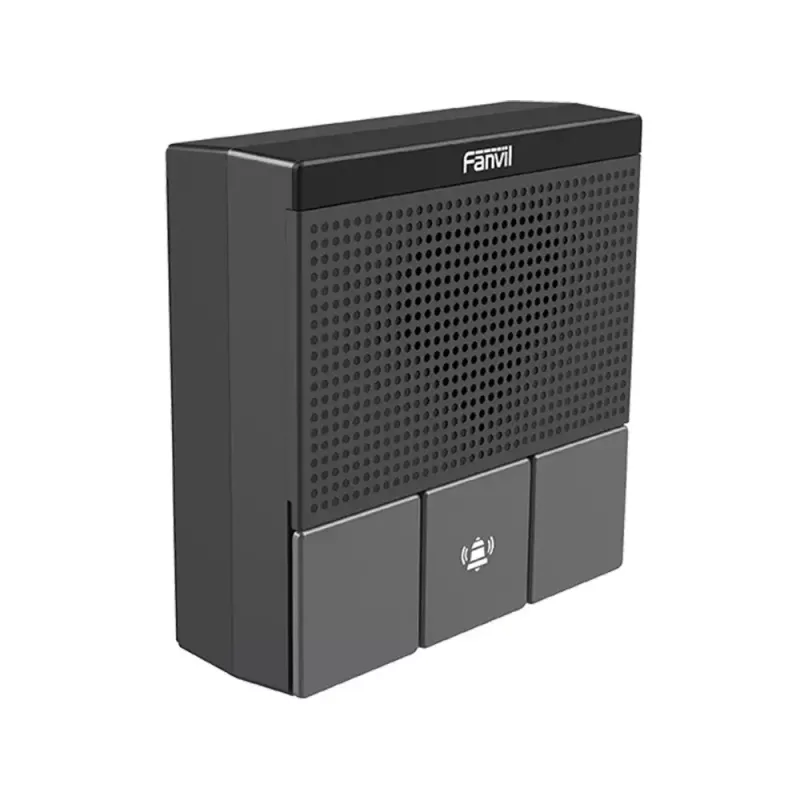

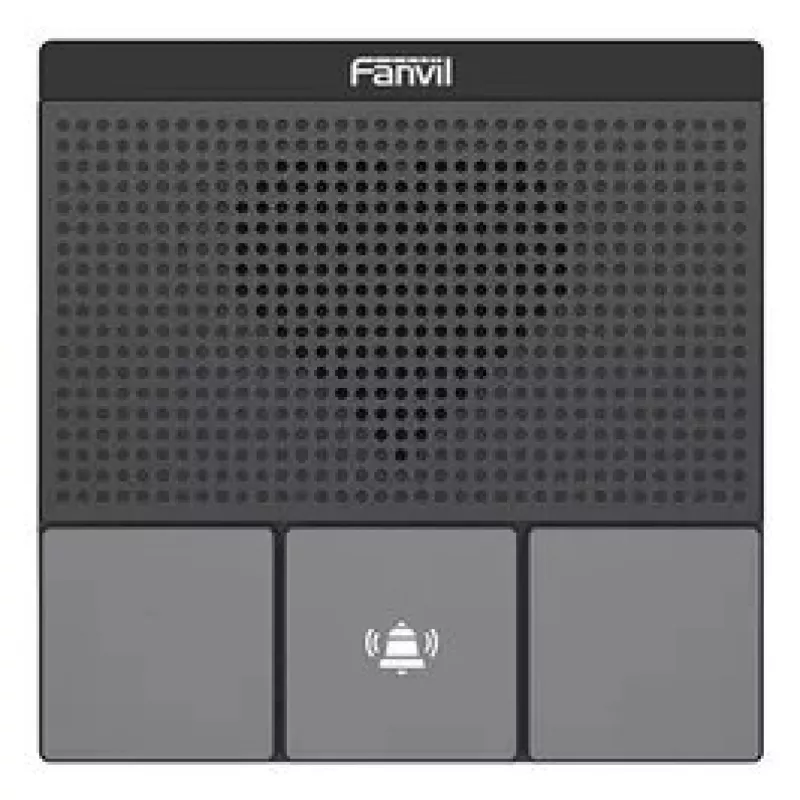

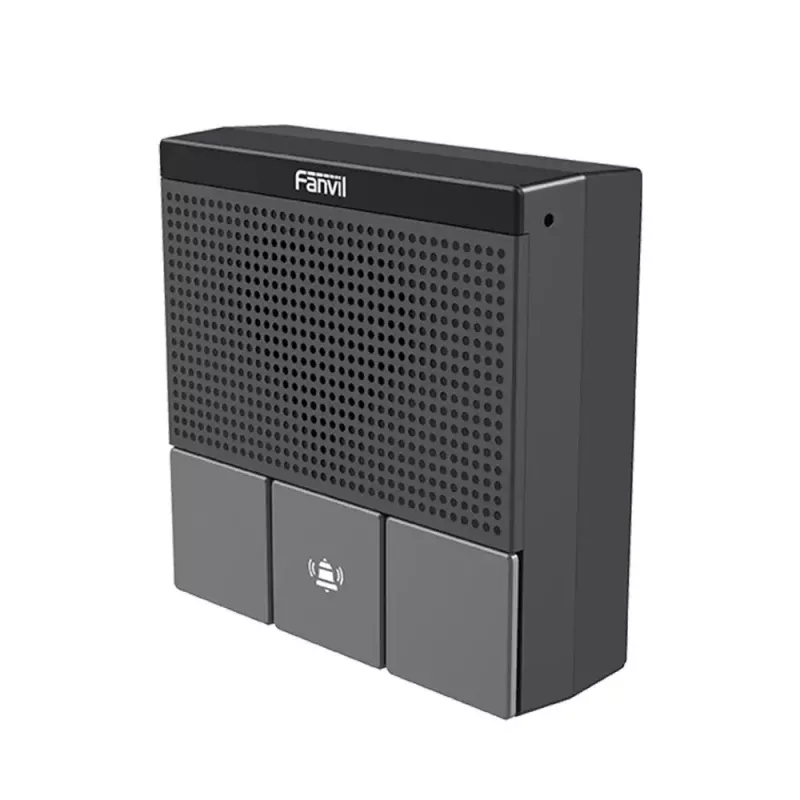

Intercomunicador áudio Fanvil A10 preto cinzento

The Fanvil A10 Series SIP mini intercom is an indoor audio intercom system designed for security, intercom calls and broadcasting. It combines a compact black-and-grey ABS housing with HD audio and an IP54 rating for dust and water resistance. The unit includes three detachable programmable function buttons and supports both wall-mount (A10/A10W) and standard 86-box embedded (A10-E/A10W-E) installation. Models A10W and A10W-E add built-in 2.4G and 5G Wi‑Fi while the device uses wired RJ‑45 connectivity for reliable communication.

Advantages

The Fanvil A10 delivers clear HD audio in a small footprint and a durable IP54-rated enclosure suitable for indoor areas where dust or occasional splashes may occur. Customizable detachable buttons allow flexible control and quick access to functions. Multiple installation options (wall mount or 86 box embed) and available Wi‑Fi models provide installation flexibility for different indoor scenarios. The use of standard RJ-45 connectivity ensures straightforward network integration.

Suitable for

• Indoor security entrances and access control panels
• Intercom stations in offices, residential buildings and service areas
• Indoor paging or broadcasting points in corridors and lobbies

Key specifications

• Model series: Fanvil A10
• Material: ABS
• Dimensions: 87.6 mm × 30 mm × 87.6 mm
• Protection rating: IP54 (dust and splash resistant)
• Audio: HD audio
• Connectivity: RJ-45 wired Ethernet; A10W/A10W-E include built-in 2.4G & 5G Wi‑Fi
• Buttons: 3 detachable programmable function buttons
• Installation: Wall mount (A10/A10W) or standard 86 box embedded (A10-E/A10W-E)
• Brand / MPN / EAN: Fanvil / A10 / 6937295604238

How to use

Mount the chosen A10 model according to the intended installation: attach to a wall bracket (A10/A10W) or install into a standard 86 electrical box (A10-E/A10W-E). Connect network via RJ‑45 cable to your SIP network; for Wi‑Fi models, configure wireless settings through the device web interface or provisioning server. Assign functions to the three detachable buttons in the device configuration so users can trigger calls, open doors or broadcast messages as required. Verify audio levels and network registration before putting the unit into service.

Recommendations

If the intercom is used in areas with higher humidity or dust, ensure mounting follows IP54 requirements and perform periodic cleaning of the enclosure. For reliable voice performance, place the unit away from strong electromagnetic sources and keep network infrastructure on a stable VLAN or QoS-enabled segment to prioritize voice traffic.
