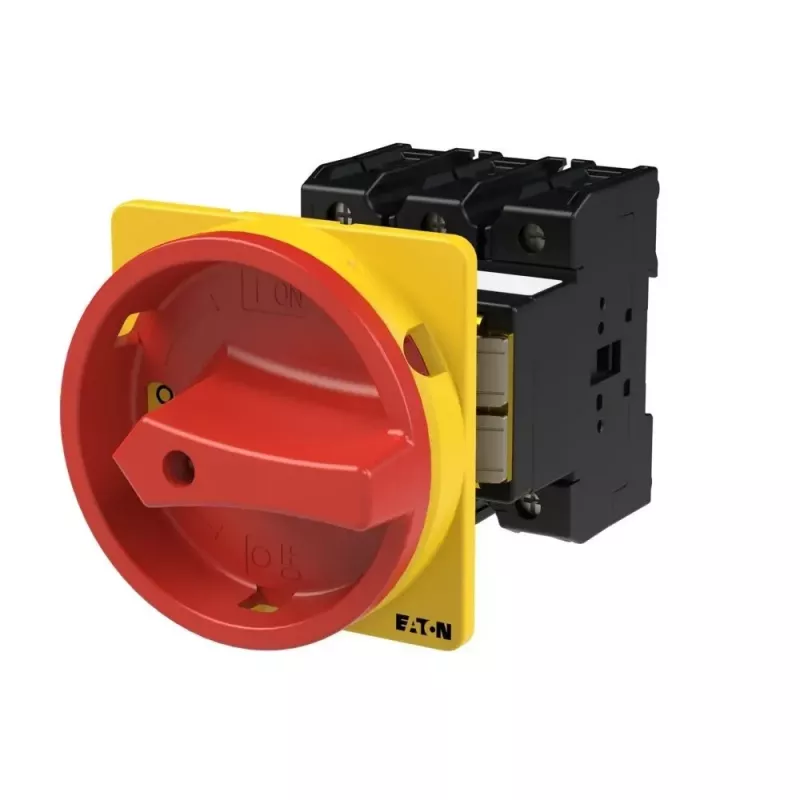

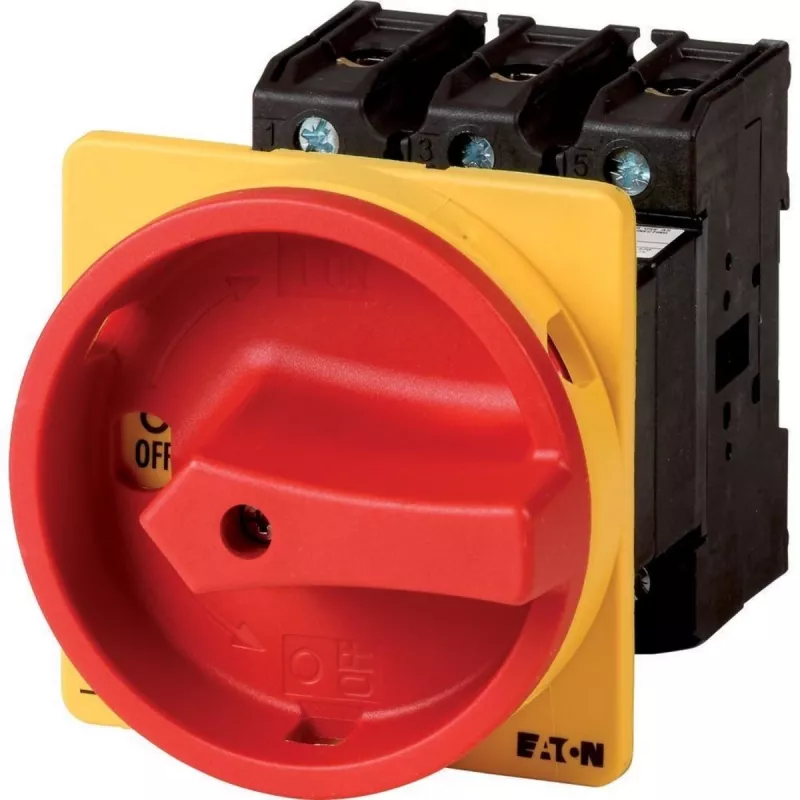

Interruptor principal de emergência Eaton Electric P3-100/V/SVB 3 polos 100A 690V 088558

In industrial and commercial electrical installations, a reliable main switch with emergency stop functionality is essential for safety and operational control. The Eaton Electric Main Switch Emergency Stop P3-100/V/SVB provides a robust solution for isolating power and enabling rapid shutdown in critical situations. Designed for intermediate mounting, this 3-pole switch handles up to 100 A at 690 V AC, making it suitable for a wide range of applications from machine control to distribution panels.

Who is it for

This main switch is ideal for electrical engineers, panel builders, and maintenance professionals who need a dependable disconnecting device with integrated emergency stop capabilities. It is particularly suited for industrial machinery, conveyor systems, and building services where safety regulations require a lockable main switch that can be quickly actuated in an emergency.

Main features

• Combined main switch and emergency stop function for enhanced safety
• 3-pole design with rated operational current of 100 A (AC-21A, 690V)
• High rated operational voltage up to 690 V AC and insulation voltage of 1000 V
• Robust construction with IP65 protection on the front for harsh environments
• Lockable in OFF position with up to 3 padlocks for maintenance safety
• Clear red/yellow handle for quick identification and operation
• 90° switching angle with 2 positions (ON/OFF) for simple control
• Complies with IEC/EN 60947 standards for assured quality

Specifications

• Type: Main Switch / Emergency Stop Switch
• Number of Poles: 3
• Rated Operational Current (Ie): 100 A (AC-21A, 690V)
• Rated Operational Voltage (Ue): 690 V AC
• Rated Insulation Voltage (Ui): 1000 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Short-Time Withstand Current (Icw): 2 kA (1s)
• Motor Power (AC-23A, 400V): 37 kW
• Mounting Type: Intermediate mounting (Zwischenbau)
• Degree of Protection (Front): IP65
• Degree of Protection (Terminals): IP20
• Handle Color: Red/Yellow
• Lockability: Lockable in OFF position (with up to 3 padlocks)
• Switching Angle: 90°
• Number of Positions: 2 (ON/OFF)
• Terminal Type: Screw terminals
• Auxiliary Contacts: None (standard, add-on modules available)
• Standards: IEC/EN 60947

Tips

When installing the P3-100/V/SVB, ensure that the mounting surface is flat and stable to maintain the IP65 seal. Use appropriate cable lugs for the screw terminals to guarantee secure connections. For enhanced safety, always lock the switch in the OFF position during maintenance using up to three padlocks. Consider adding auxiliary contact modules if remote status indication is required.
