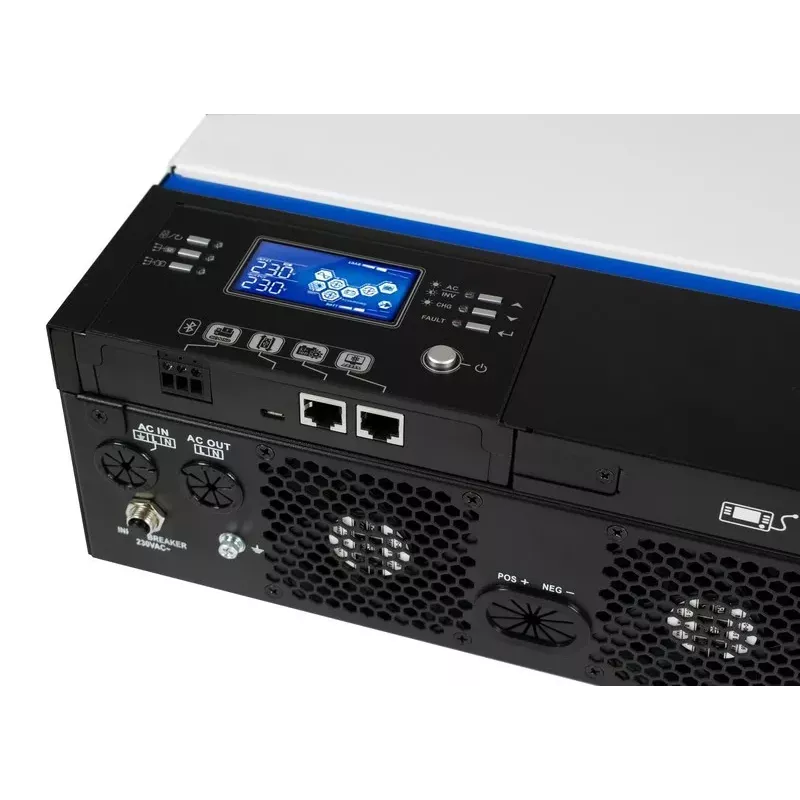

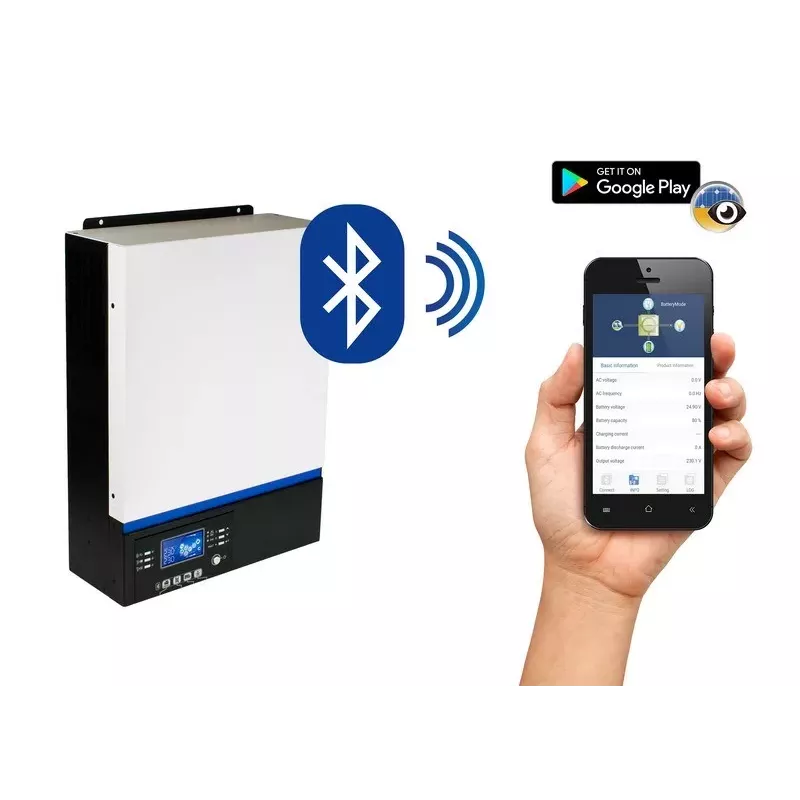

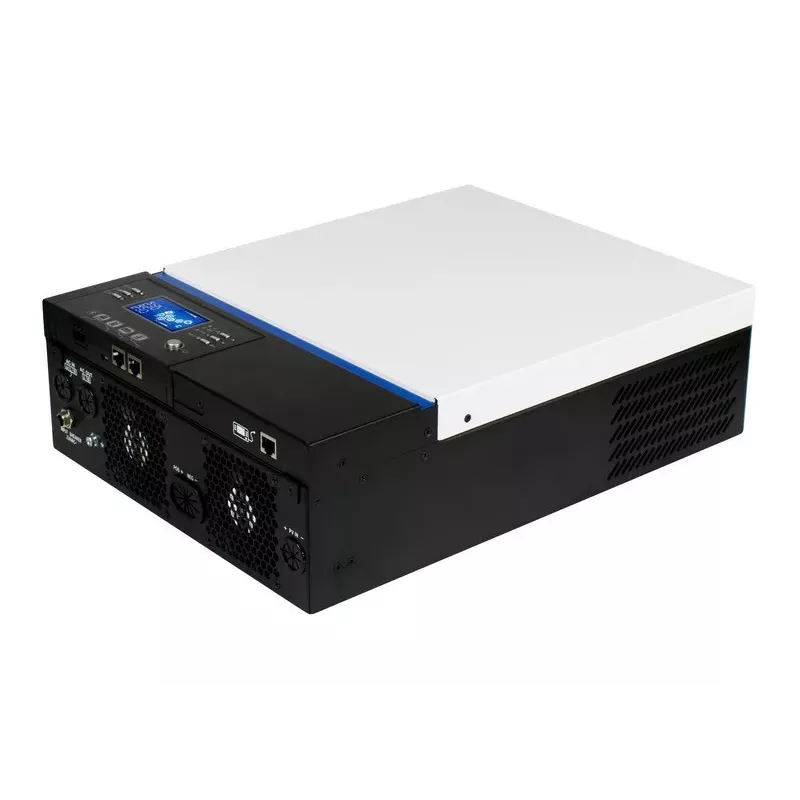

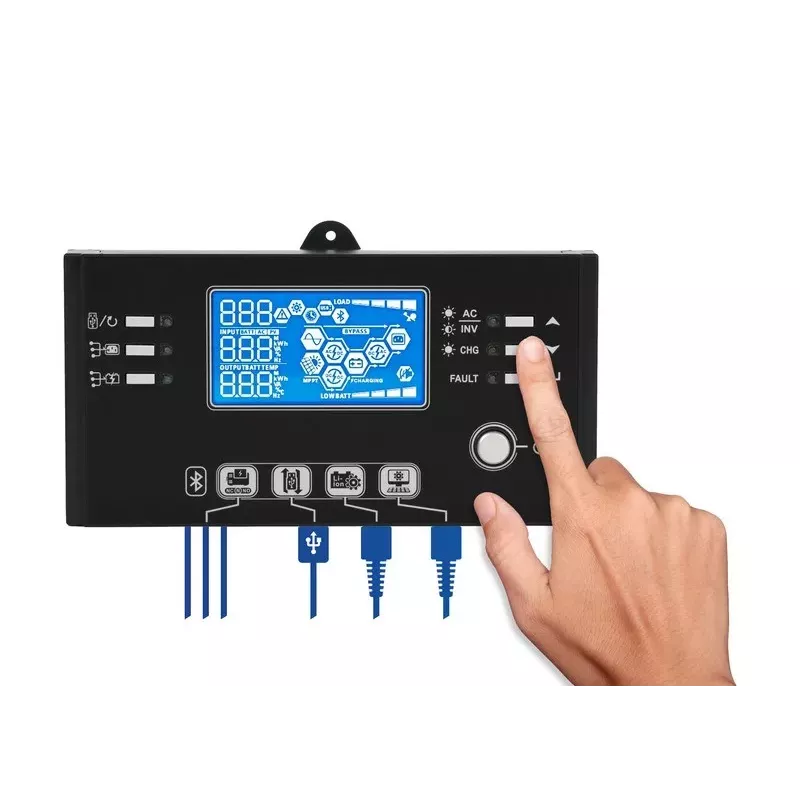

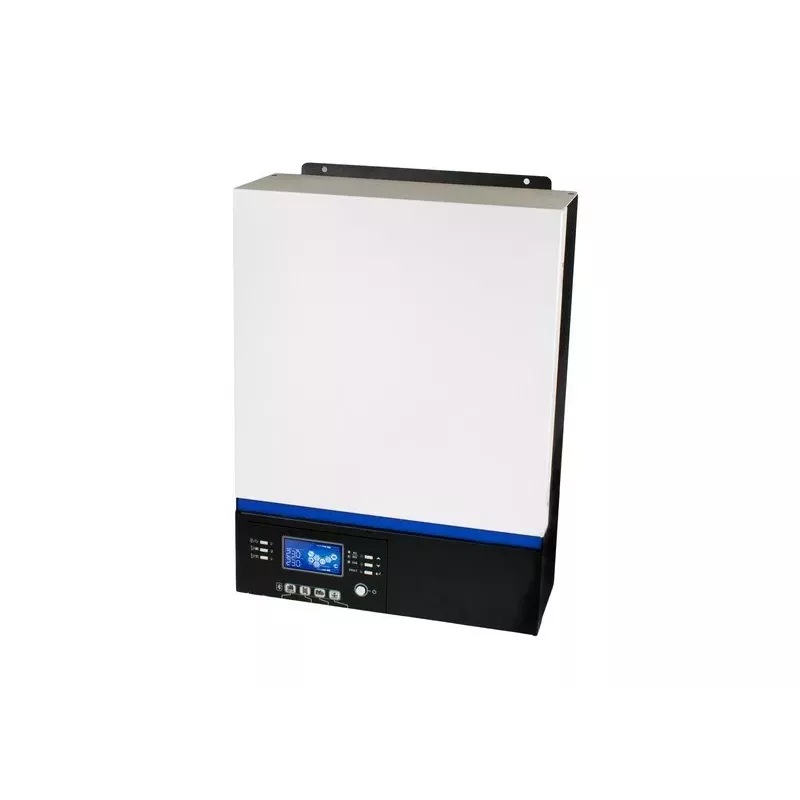

Inversor solar híbrido off-grid AZO Digital ESB 10kW-48

The AZO Digital ESB 10kW-48 is a high-performance off-grid hybrid solar inverter designed for residential and small commercial applications. It combines solar charging, battery storage, and AC output in a single unit, providing reliable power backup and energy independence.

Advantages

This inverter offers pure sine wave output, high efficiency up to 93%, and supports both off-grid and on-grid operation. With a 10kW rated power and 48V battery system, it can handle heavy loads and provide surge power up to 20kVA. The built-in MPPT charge controller maximizes solar harvest, and parallel capability allows scaling up to 6 units for larger systems.

Suitable for

• Off-grid homes and cabins
• Backup power for critical loads
• Solar energy storage systems
• Remote installations without grid access

Key specifications

• Rated Output Power: 10000W (10kW)
• Battery Voltage: 48V DC
• Waveform: Pure Sine Wave
• Max PV Array Power: 10000W
• MPPT Voltage Range: 90-450V DC
• Max Solar Charging Current: 180A
• Max AC Charging Current: 120A
• AC Output Voltage: 230V AC Single Phase
• Frequency: 50/60 Hz Auto Sensing
• Peak Efficiency: 93%
• Surge Power: 20000VA (5 seconds)
• Communication: RS232, USB, CAN, RS485, Dry Contact
• Parallel Capability: Up to 6 units
• Protection: Overload, Over Temperature, Short Circuit, Battery Overcharge/Discharge
• Operating Temperature: -10°C to 50°C
• Humidity: 0% to 90% RH

Recommendations

For optimal performance, pair with a compatible 48V battery bank and solar panels within the MPPT voltage range. Ensure proper ventilation and installation by a qualified electrician.
