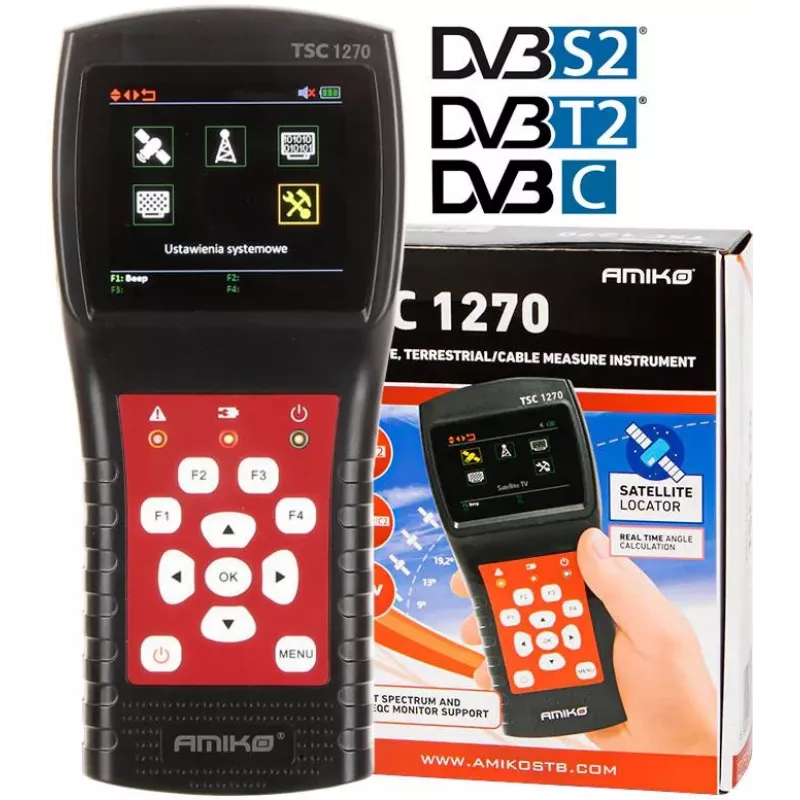

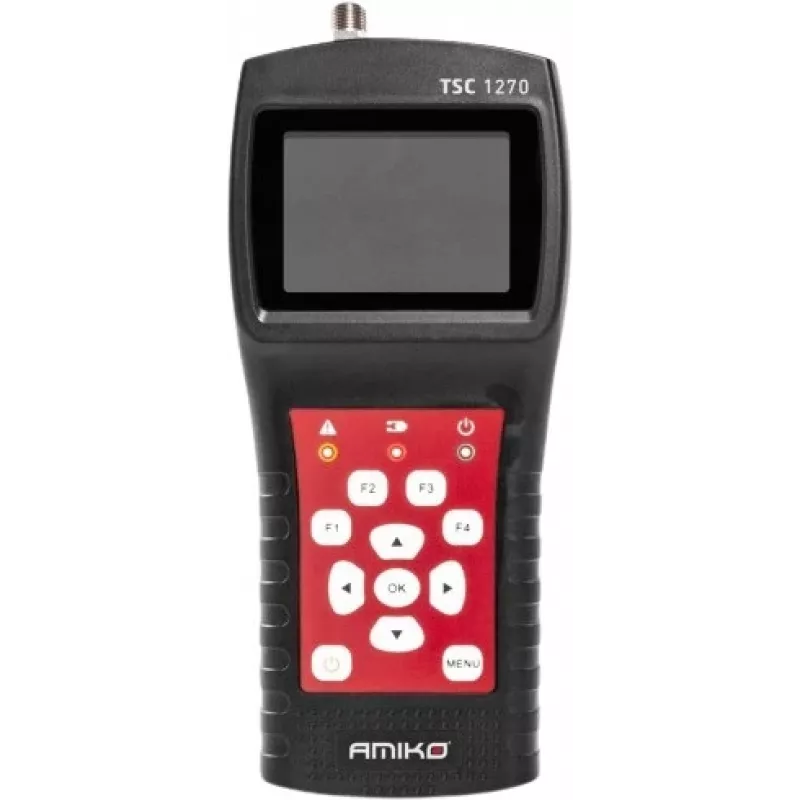

INVERTO Medidor combo AMIKO TSC-1270 (DVB-S/S2 + DVB-T/T2/C)

The INVERTO Combo Meter AMIKO TSC-1270 is a professional handheld satellite, terrestrial, and cable signal meter designed for installers and technicians. It combines a 7-inch high-definition TFT LCD display with comprehensive measurement and analysis tools, making it ideal for aligning antennas and troubleshooting digital TV signals.

Advantages

This versatile meter supports DVB-S/S2, DVB-T/T2, and DVB-C standards, covering satellite, terrestrial, and cable networks. Its large 7-inch screen provides clear visual feedback, while the built-in spectrum analyzer and constellation diagram enable in-depth signal analysis. The long-lasting 6300mAh battery ensures up to 5-6 hours of operation in the field.

Suitable for

• Satellite dish installation and alignment
• Terrestrial antenna setup and optimization
• Cable TV network troubleshooting
• Signal quality verification and maintenance

Key specifications

• Display: 7-inch High Definition TFT LCD
• Supported Standards: DVB-S/S2, DVB-T/T2, DVB-C
• Satellite Frequency Range: 950MHz - 2150MHz
• Terrestrial/Cable Frequency Range: 47MHz - 862MHz
• Satellite Demodulation: QPSK, 8PSK, 16APSK, 32APSK
• Terrestrial/Cable Demodulation: QPSK, 16QAM, 64QAM, 256QAM
• DiSEqC Support: 1.0, 1.1, 1.2, USALS, Unicable I/II (SCR/dCSS)
• Measurement: Signal Strength, Quality, BER, MER, C/N
• Analysis: Spectrum Analyzer, Constellation Diagram
• Video Decoding: MPEG-2, MPEG-4, H.264
• Audio Decoding: MPEG-1 Layer I/II, MPEG-2 Layer I/II

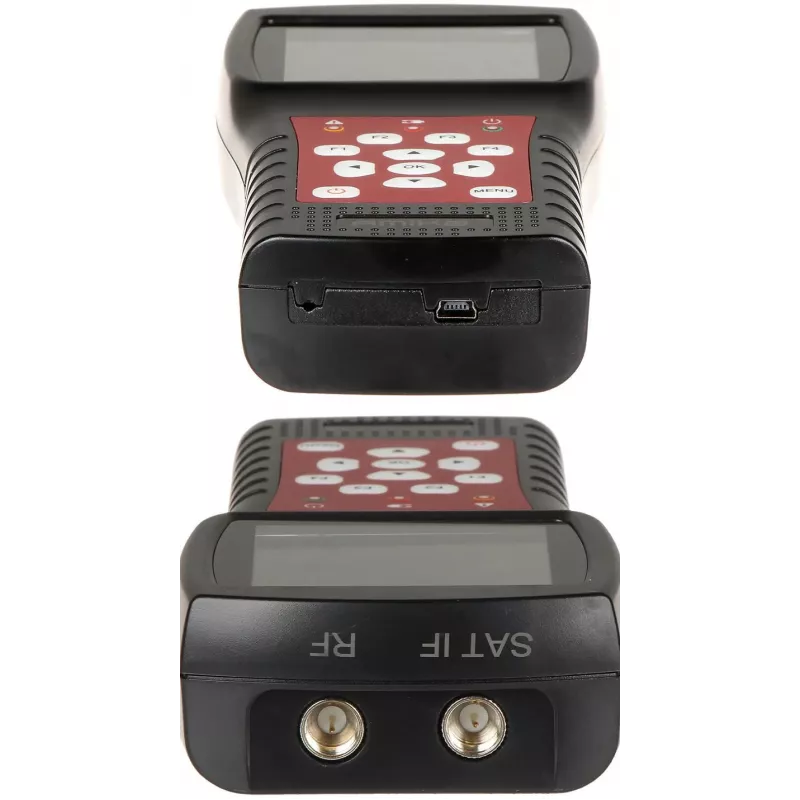

• Connectivity: F-type IN, RF IN/OUT, HDMI OUT, AV IN/OUT, USB 2.0
• Battery: 7.4V/6300mAh Li-ion, up to 5-6 hours
• Power Supply: AC 100-240V / DC 12V/2A Adapter
• Special Features: Blind Scan, Flashlight, Built-in Speaker, USB Media Playback
• Software Update: Via USB

Recommendations

This meter is an essential tool for professional installers requiring accurate signal measurement across multiple platforms. Its robust feature set and user-friendly interface make it a reliable choice for field work.
