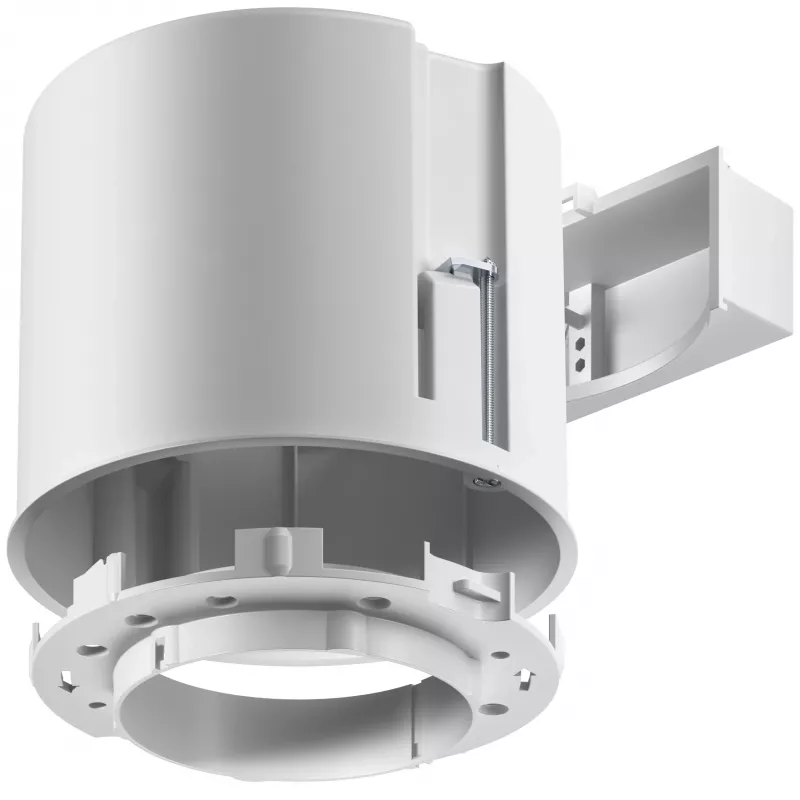

Kaiser Elektro THERMO-X 9300-02 caixa corta-fogo para luminárias encastradas, abertura no teto 75 mm

In suspended ceilings, recessed luminaires can compromise fire resistance, allowing heat and flames to spread through the void. The Kaiser Elektro THERMO-X 9300-02 fire protection housing restores the ceiling's integrity, providing a certified barrier for cut-outs up to 75 mm. Suitable for LED, low-voltage, and high-voltage luminaires, it ensures compliance with fire resistance classes F30 to F90, depending on the ceiling construction.

Who is it for

This housing is intended for electricians, contractors, and facility managers installing recessed luminaires in fire-rated suspended ceilings, such as plasterboard. It is essential in commercial, residential, and public buildings where fire safety regulations demand protected ceiling penetrations.

Main features

• Fire resistance up to F90, depending on ceiling construction
• Thermal insulation prevents heat transfer to the ceiling void
• Airtight installation reduces energy loss and prevents smoke leakage
• Sound insulation improves room acoustics
• Two M20/M25 combination cable entries for flexible wiring
• Compatible with LED, low-voltage (NV), and high-voltage (HV) luminaires
• Compact design with 100 mm outer diameter and 100 mm height

Specifications

• Ceiling cut-out diameter: 75 mm
• Max. luminaire diameter: 75 mm
• Max. luminaire height: 100 mm
• Min. installation depth: 100 mm
• Max. lamp power: 35 W
• Outer diameter: 100 mm
• Height: 100 mm
• Protection class: IP20
• Material: Special fire protection material
• Series: THERMO-X

Tips

For optimal fire safety, install the housing according to the ceiling manufacturer's specifications. Ensure the luminaire does not exceed 35 W and fits within the 75 mm diameter and 100 mm height limits. Use the M20/M25 entries for secure cable management.
