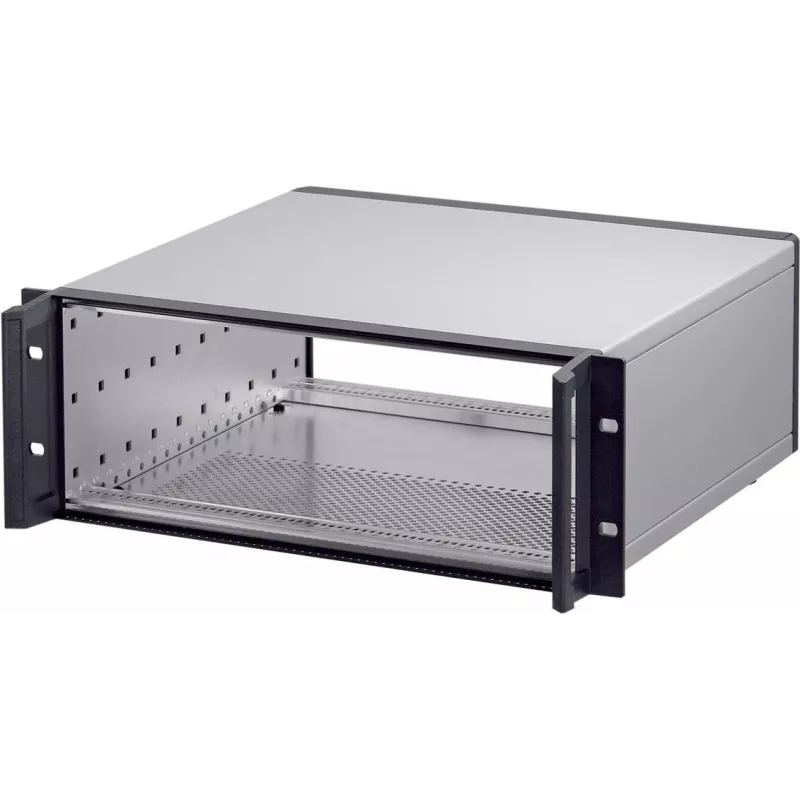

Kit de bastidor SCHROFF RatiopacPRO 3U 84HP 255mm, alumínio, montagem em rack 19 polegadas 24572630

The SCHROFF RatiopacPRO subrack kit offers a modular, screw-together construction that simplifies assembly while delivering robust protection for 19-inch rack-mount electronics. Unlike fixed enclosures, this 3U, 84HP, 255mm-deep kit lets you configure side panels, rails, and covers exactly to your application, using lightweight yet rigid aluminium extrusions and die-cast parts. It complies with IEC 60297-3-101, ensuring compatibility with standard Eurocard PCBs and plug-in units.

Highlights

• 3U height, 84HP width, 255mm external depth for standard 19-inch racks
• Modular screw-together kit: side panels, horizontal rails, front/rear panels, and mounting accessories included
• Aluminium construction: natural anodized side panels, clear chromated front/rear panels
• Front mounting position for easy integration into cabinets
• Compliant with IEC 60297-3-101 for Eurocard and plug-in unit compatibility

In daily use

This subrack provides a stable, shielded housing for PCBs and electronic modules in industrial, test, and communication systems. The internal usable depth of approximately 235mm accommodates deep boards, while the lightweight aluminium design (approx. 2.2kg) eases handling and installation. The natural anodized finish resists corrosion and wear, maintaining a professional appearance over time.

Full specifications

• Brand: SCHROFF
• Model: RatiopacPRO
• MPN: 24572630
• EAN: 4036088035135
• Product type: Subrack
• Rack unit height: 3U (133.35mm)
• Pitch unit width: 84HP (448.5mm)
• External depth: 255mm
• Rack compatibility: 19-inch
• Main material: Aluminium (extruded and die-cast)
• Side panel finish: Natural anodized aluminium
• Front/rear panel finish: Clear chromated aluminium
• Standard compliance: IEC 60297-3-101
• Mounting position: Front
• Included components: Side panels, horizontal rails, front/rear panels, mounting accessories
• Internal usable depth: Approx. 235mm
• Weight: Approx. 2.2kg

Final note

Choose the SCHROFF RatiopacPRO for a reliable, customizable subrack solution that meets international standards and simplifies your rack-mount integration.
