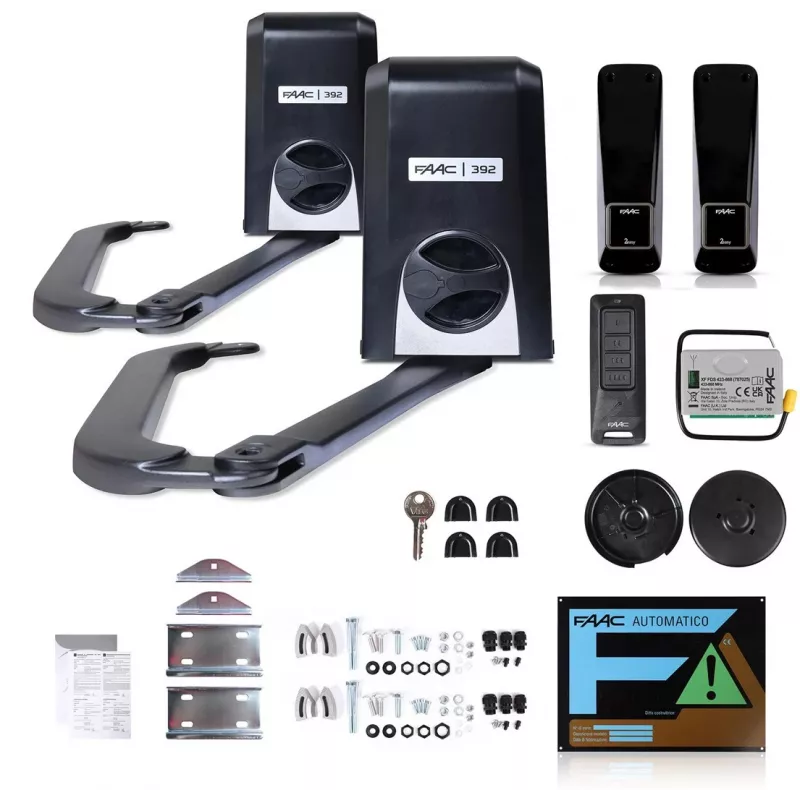

Kit de motor para portão FAAC 392 24V para portões de duas folhas até 5 m de largura total

FAAC 392 24V energy set is an electromechanical automation kit for dual-winged gates with a combined width up to 5 m. Designed by FAAC for residential and light-commercial entrances, the kit provides a 24 V motor drive and the necessary control components to enable remote and automated opening and closing of swing gates. The system supports frequent use and aims to simplify daily access while maintaining operational reliability and basic safety functions.

Advantages

The FAAC 392 24V set offers a compact electromechanical actuator and a control unit configured for synchronized operation of two gate leaves. Low-voltage 24 V drive ensures smoother starts and stops and reduced peak current compared with higher-voltage alternatives. The components are suitable for regular residential traffic and light commercial applications, providing consistent performance and straightforward integration with safety accessories such as photocells and manual release mechanisms.

Suitable for

• Residential dual-winged gates with a combined opening width up to 5 m
• Small commercial entrances with regular daily cycles
• Integrations requiring remote control or automatic timed operation
• Installations needing low-voltage electromechanical actuation

Key specifications

• Power supply voltage: 24 V DC electromechanical drive
• Intended combined gate leaf width: up to 5 m
• Application: dual-winged (two-leaf) swing gates
• Duty cycle: designed for frequent residential and light-commercial use
• Control features: electronic control board for synchronized operation and accessory inputs
• Safety compatibility: supports connection of safety photocells and obstacle-detection devices

How to use

Install the FAAC 392 24V actuators on each gate leaf according to the manufacturer’s mechanical and electrical mounting instructions, ensuring correct alignment and secure fastening. Connect the actuators to the control board and to the 24 V power supply, and configure travel limits and force settings via the control unit so that each leaf opens and closes within the intended travel. Integrate safety devices such as photocells and pair the remote control transmitters following the control board procedure. After installation, test opening and closing cycles and obstacle detection to confirm stable operation.

Recommendations

Use the kit with compatible low-voltage accessories from FAAC or certified third-party manufacturers to maintain safety and performance. Schedule periodic inspections of mechanical linkages, electrical connections, and control settings, and keep moving parts lubricated per manufacturer guidance. For installations exposed to harsh weather, verify sealing and corrosion protection of fasteners and connections.
