Laserliner Micro Camera sonda endoscópica Ø 6 mm, 1,5 m, iluminação LED (082.221A)

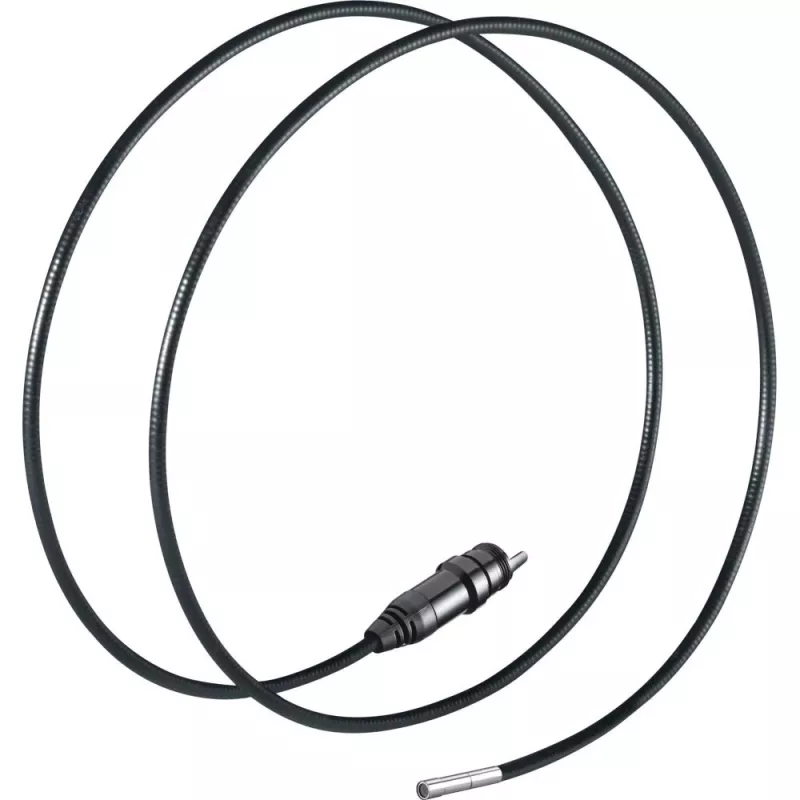

The Laserliner Micro Camera probe with a 6 mm diameter and 1.5 m flexible cable reaches deep into narrow cavities where larger inspection cameras cannot go. Its stainless steel head and dimmable LED lighting deliver clear images in dark, confined spaces.

Highlights

• 6 mm probe diameter for tight access points
• 1.5 m flexible cable with reinforced PVC/rubber jacket

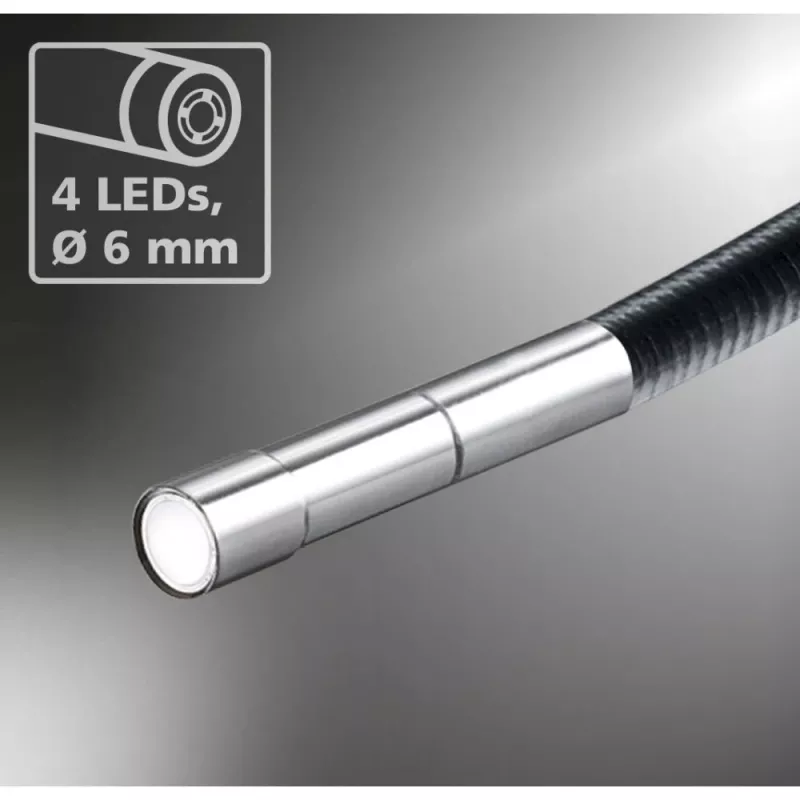

• 4 high-power LEDs with dimmable brightness
• IP68-rated probe head and cable for wet environments

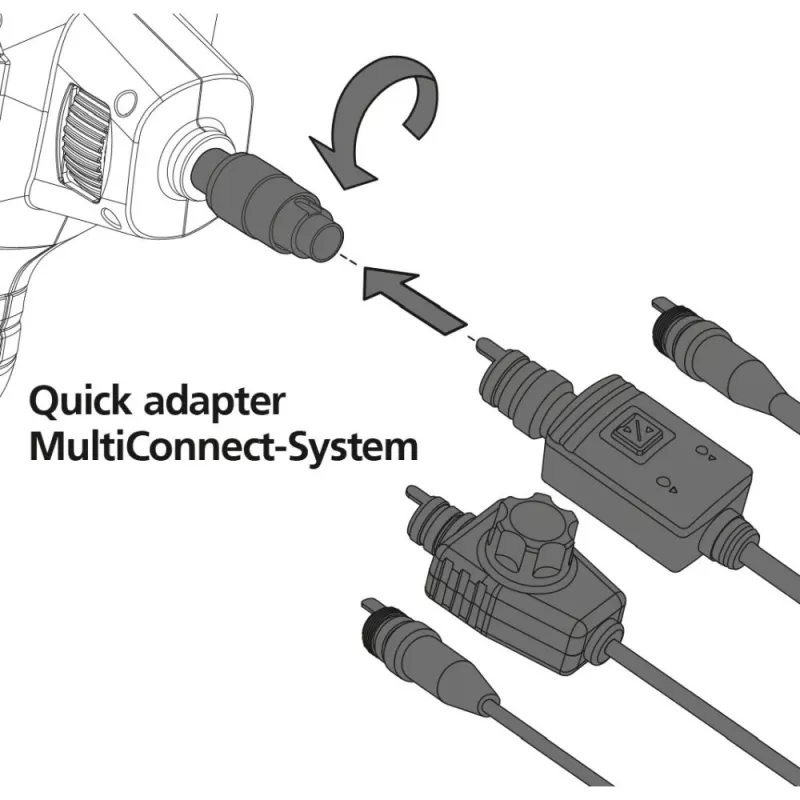

• Quick-connect for Laserliner VideoControl and VideoFlex G3/G4 series

In daily use

The probe connects instantly to compatible Laserliner base units, providing a 640 x 480 pixel image with a 60° field of view. The 3–7 cm depth of field keeps nearby objects sharp, while the stainless steel head withstands rough industrial use. Operating temperature range is 0 °C to 45 °C.

Full specifications

• Probe diameter: 6 mm
• Probe length: 1.5 m
• Camera resolution: 640 x 480 pixels
• Field of view: 60°
• Depth of field: 3–7 cm
• Ingress protection: IP68 (probe head and cable)
• Light source: 4 high-power LEDs, dimmable
• Connector: Laserliner quick-connect
• Compatibility: VideoControl-Master, VideoControl-Live, VideoControl-Home, VideoFlex G3/G4 series
• Operating temperature: 0 °C to 45 °C
• Storage temperature: -10 °C to 60 °C
• Probe head material: stainless steel
• Cable material: reinforced PVC/rubber
• Colour: black/silver

Final note

A practical inspection tool for plumbing, automotive and industrial diagnostics where access is limited.
