Leitor de códigos de barras Datalogic PM9600-SR433RBK10 1D/2D laser portátil, com fios e sem fios

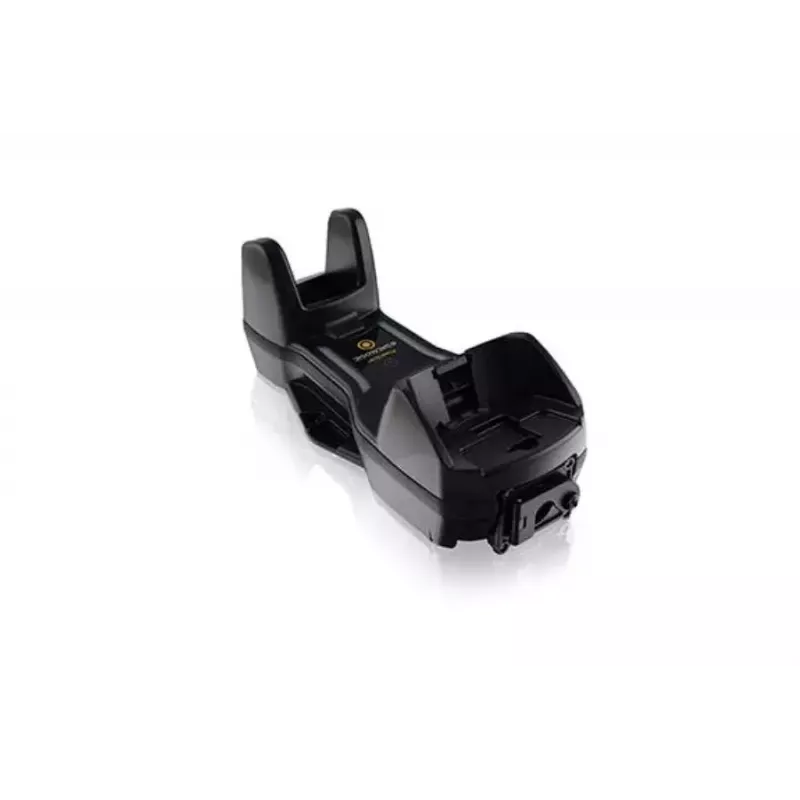

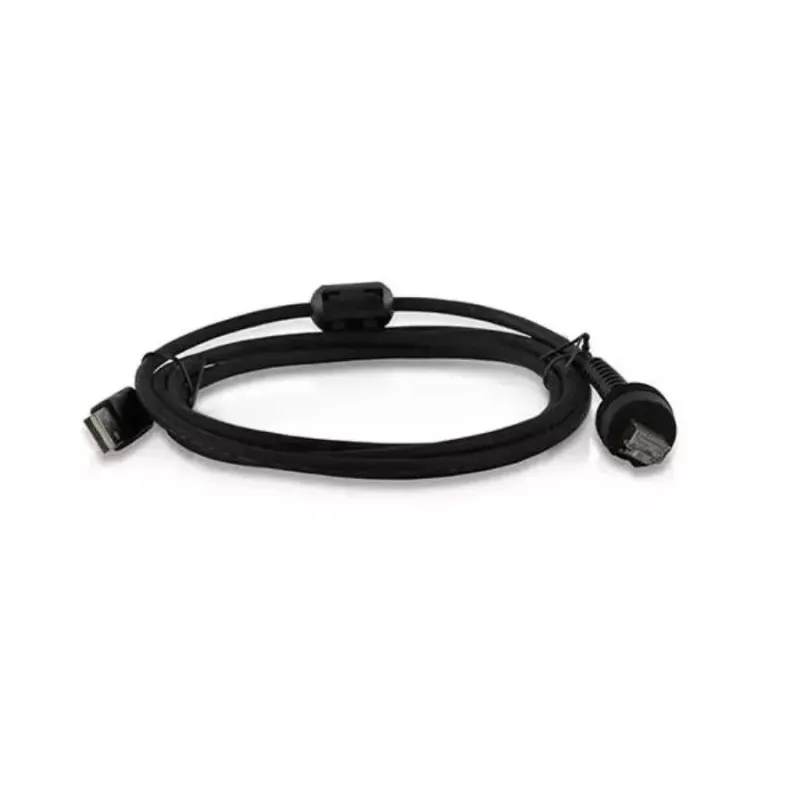

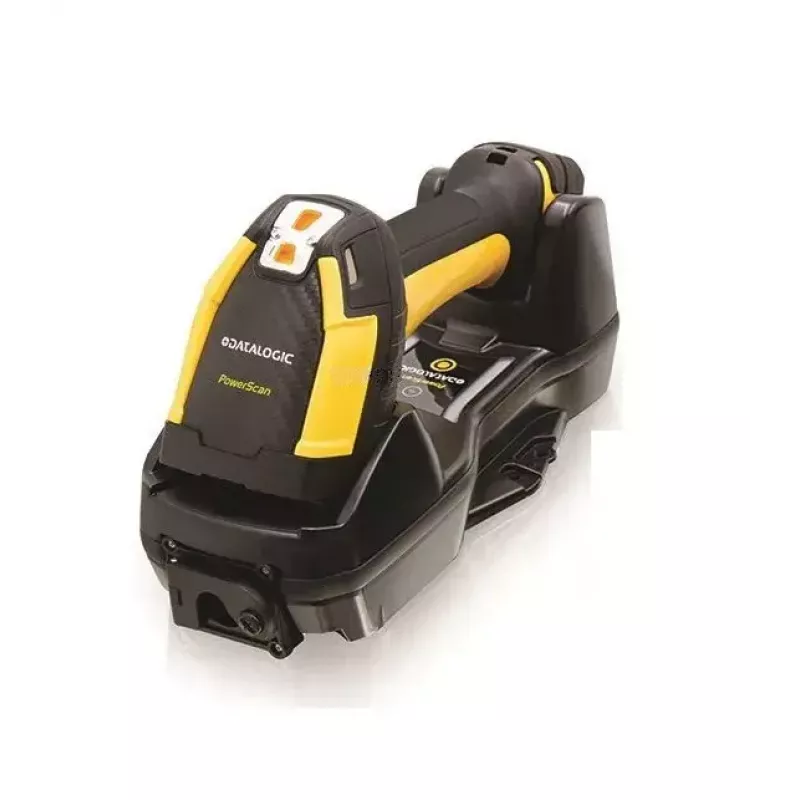

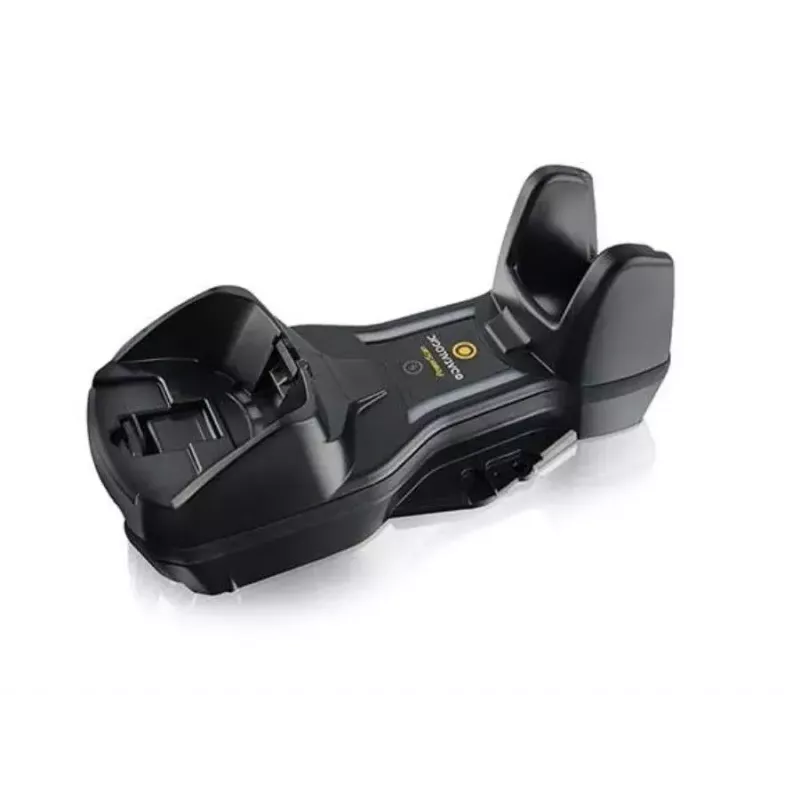

The Datalogic PowerScan PM9600-SR (433 MHz) USB Kit is a rugged handheld barcode scanner kit that includes the PM9600-SR scanner, BC9630-433 cradle, CAB-552 cable, 8-0935 power supply and 6003-0940 power cord. Designed for industrial use, the device supports 1D and 2D codes, offers wired and wireless connectivity, and features IP65/IP67 protection, drop resistance up to 2.5 m and a long-life trigger rated for 10 million actuations.

Advantages

The PM9600-SR provides durable construction and reliable charging via a wireless cradle to avoid failure from dirty contacts. Its interchangeable communication modules enable easy configuration to RS-232, USB, USB-C, Ethernet, EtherNet/IP or PROFINET without third-party adapters. The scanner delivers fast read rates, a successful visual confirmation via green spot and extended operational range and capacity when used with the STAR narrow-band radio system. Battery management and cradle diagnostics support predictive maintenance and extend overall device uptime.

Suitable for

• Manufacturing traceability and assembly line scanning
• Warehouse picking, receiving and intralogistics
• Retail backroom and stock control
• Industrial environments requiring robust, dust- and water-resistant devices

Key specifications

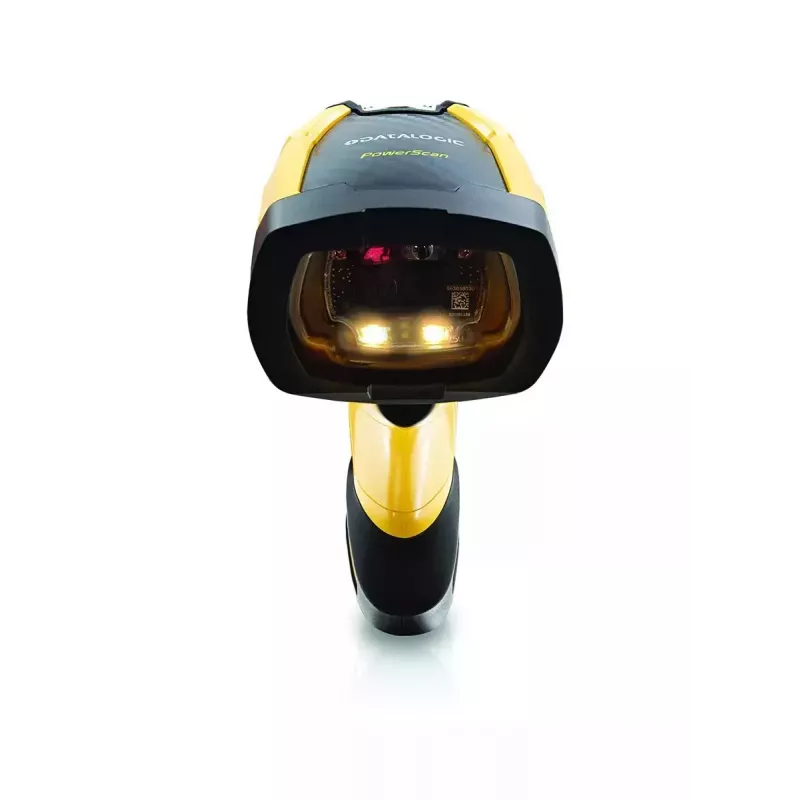

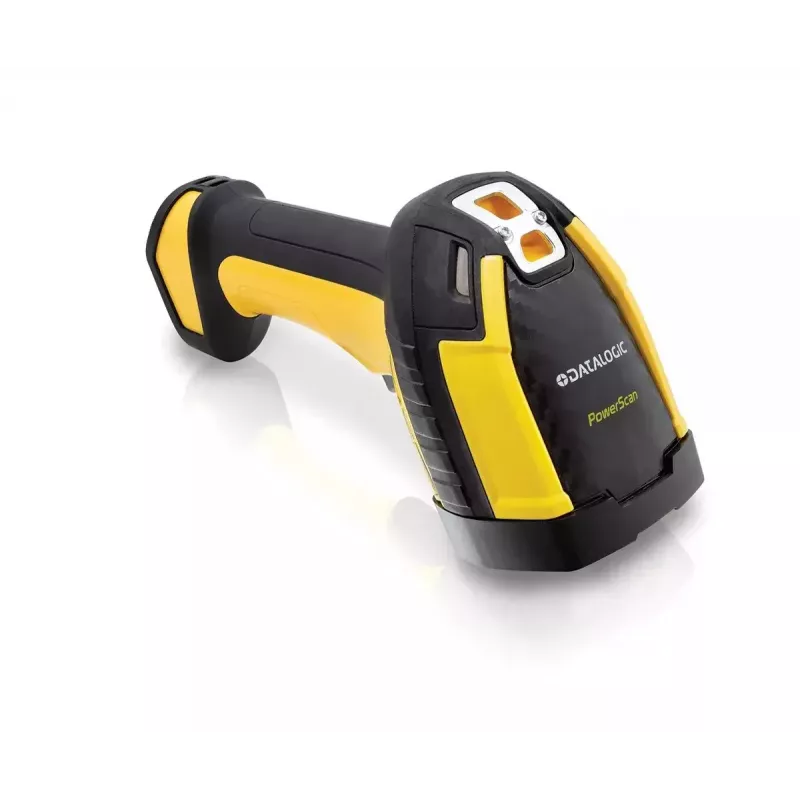

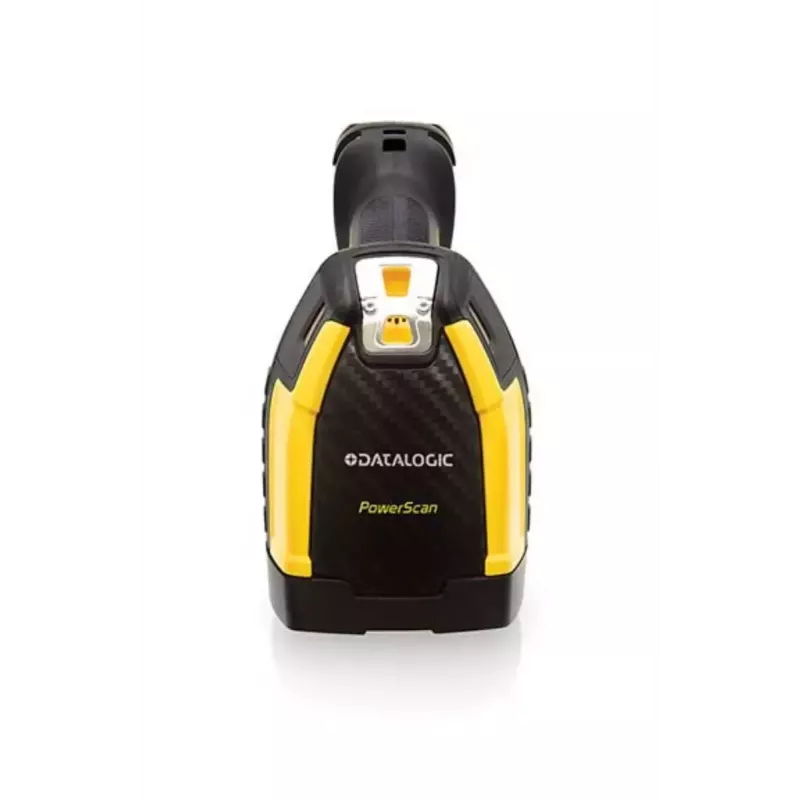

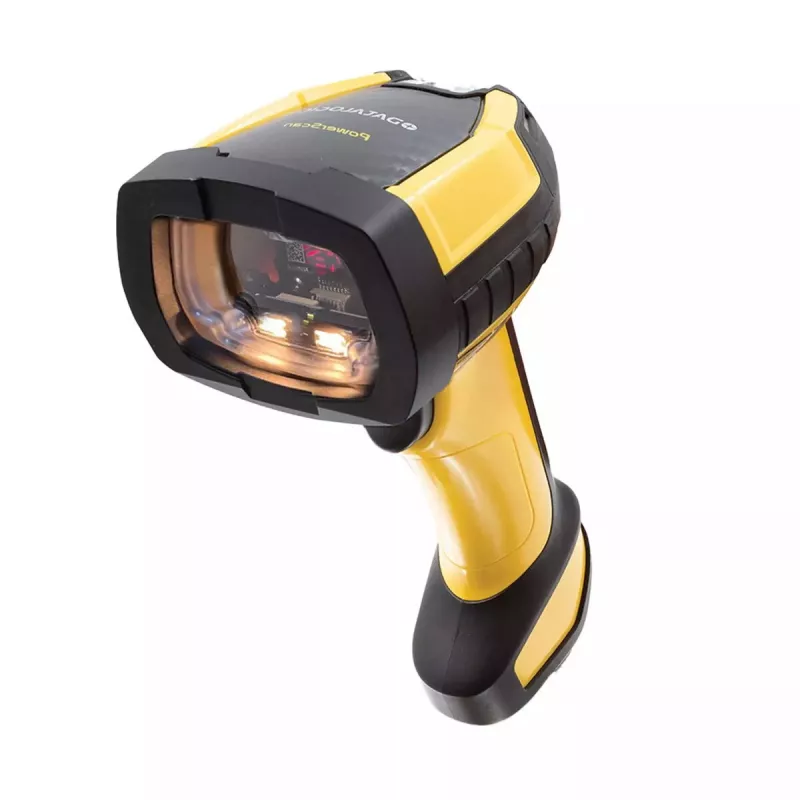

• Model: PowerScan PM9600-SR (MPN PM9600-SR433RBK10)
• Frequency: 433 MHz (wireless)
• Scan technology: 1D/2D laser camera (standard range)
• Connectivity: Wired & wireless; configurable modules (RS-232, USB, USB-C, Ethernet, EtherNet/IP, PROFINET)
• Ingress protection: IP65 / IP67
• Drop resistance: up to 2.5 m onto concrete
• Trigger durability: up to 10,000,000 actuations
• Battery: lithium-ion (removable/chargeable), smart battery management
• Weight: 0.425 kg
• Supported codes: 1D (UPC-A/E, EAN-8/13, EAN 2/5, Code 128, Codabar, GS1 DataBar, PDF417) and 2D (QR, MicroQR, Data Matrix, PDF417, MaxiCode, Aztec)
• Colour: Yellow, Black

How to use

Unpack the kit and connect the cradle to power using the supplied power supply and cord. If using wired mode, connect the cradle or scanner via the included CAB-552 cable to your host (PC, IPC or PLC) and select the appropriate communication module or interface. For wireless operation, pair the PM9600-SR with the BC9630-433 cradle using the 433 MHz STAR radio system and verify the scanner appears on the host. Aim the scanner at barcodes within the standard reading range and press the trigger to capture codes; successful reads are indicated by the green spot and feedback on the OLED display. Use the cradle to charge the scanner; the wireless charging avoids exposure to dirty contacts.

Recommendations

For reliable performance in dense device environments, prefer the STAR narrow-band radio option at 433 MHz to minimise interference. Schedule regular checks of battery health via the cradle diagnostics and keep firmware and interface settings aligned with your host system to maintain compatibility. Choose the PM9600-SR for standard-range 1D/2D scanning; select the High Performance or Document Capture variants if longer distances or colour capture are required.
