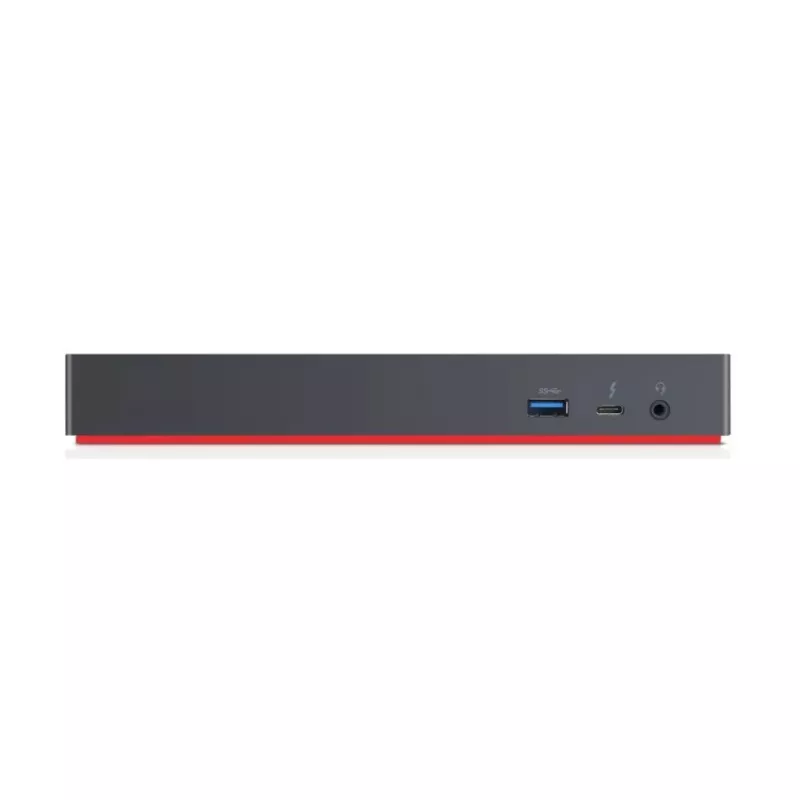

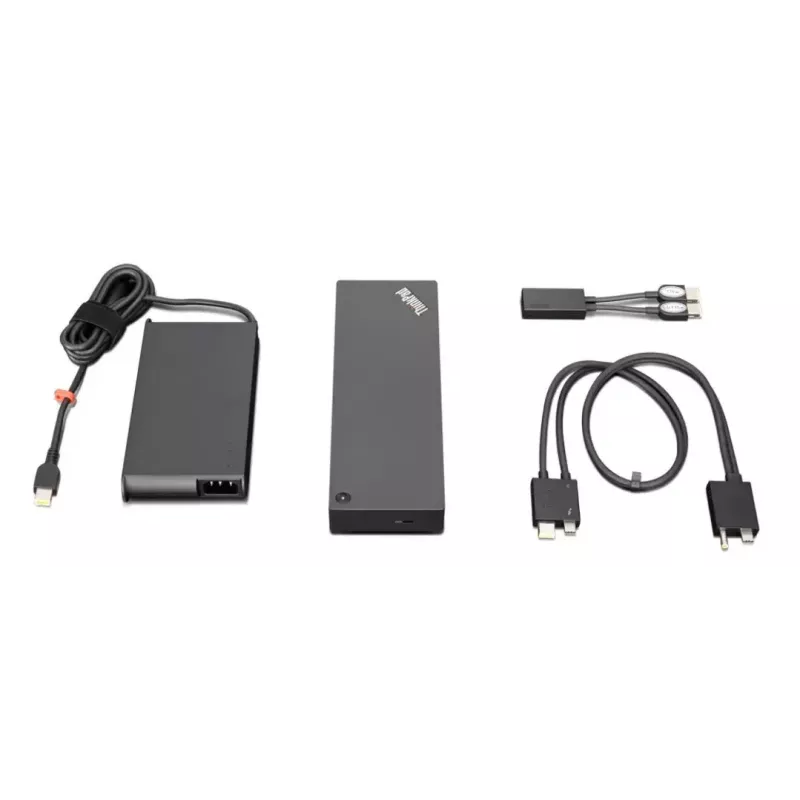

Lenovo ThinkPad Thunderbolt 3 Workstation Gen 2 com fios preto

The Lenovo ThinkPad Thunderbolt 3 Workstation Dock Gen 2 is a wired docking station designed to expand connectivity and productivity for ThinkPad mobile workstations. It provides Thunderbolt 3 connectivity, supports multi 4K displays with a maximum digital resolution of 3840 x 2160 pixels, and offers optimized one-cable charging and advanced network manageability. The dock has a compact black design and is intended for use with Lenovo devices running Windows 10.

Advantages

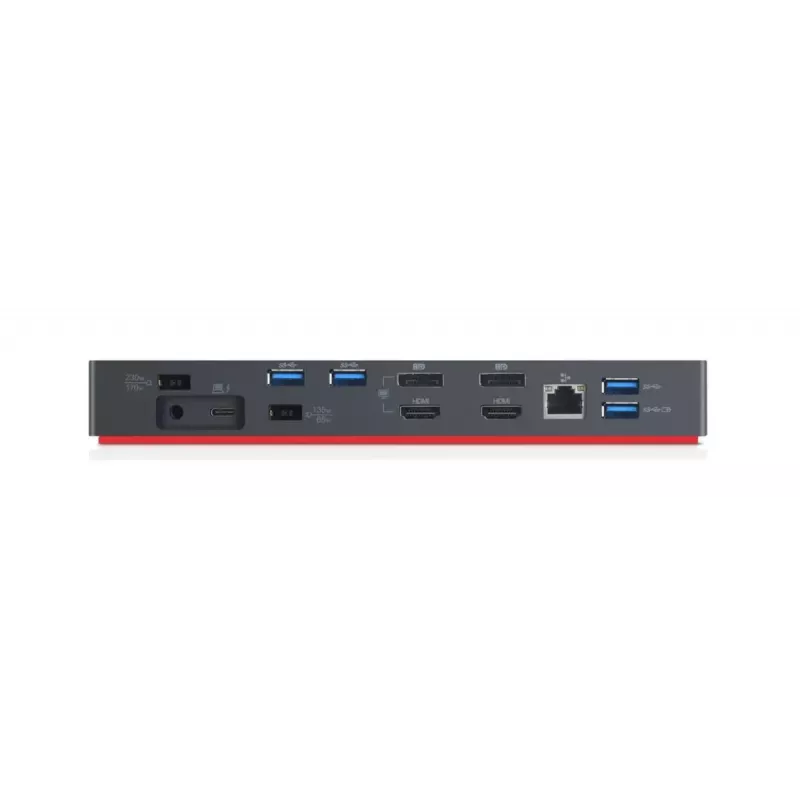

This workstation dock delivers high-bandwidth Thunderbolt 3 performance and multiple display support while consolidating power and data over a single cable. It includes a variety of expansion ports—multiple USB Type-A ports, dual HDMI outputs and a Gigabit Ethernet (RJ-45) port—allowing easy connection of peripherals, external monitors and wired networks. The dock’s compact dimensions and 0.525 kg weight make it suitable for desktop setups where space is limited.

Suitable for

• Connecting multiple 4K external displays to a ThinkPad mobile workstation
• Expanding USB peripheral connectivity (printers, drives, accessories)
• Providing a stable wired network connection via Gigabit Ethernet
• Streamlining laptop charging and data transfer with a single Thunderbolt 3 cable

Key specifications

• Brand: Lenovo
• Model: ThinkPad Thunderbolt 3 Workstation Dock Gen 2
• Connectivity: Wired, Thunderbolt 3
• Max digital resolution: 3840 x 2160 pixels
• Ethernet LAN: 10/100/1000 Mbit/s (RJ-45)
• USB 3.2 Gen 1 (Type-A) ports: 5
• HDMI ports: 2
• USB 2.0 ports: 0
• Weight: 0.525 kg
• Dimensions (W x D x H): 220 x 80 x 30 mm
• Colour: Black
• Compatible OS: Windows 10
• EAN: 193638285922

How to use

Connect the dock to your ThinkPad mobile workstation using a Thunderbolt 3 cable. Attach external monitors to the HDMI ports, connect wired network via the RJ-45 Ethernet port, and plug USB peripherals into the available Type-A ports. When connected, the dock provides one-cable power delivery and data transfer; follow any on-screen prompts in Windows 10 to install necessary drivers if required.

Recommendations

For optimal multi-monitor performance and reliable charging, use a certified Thunderbolt 3 cable and ensure your ThinkPad model supports Thunderbolt 3 and the dock’s power delivery capabilities. Keep drivers and firmware up to date to maintain full compatibility with Windows 10.
