MAKERA Carvera Air módulo laser - 10W de potência ótica laser de díodos para gravar e cortar

With a 10W optical output, this diode laser module transforms your MAKERA Carvera Air into a high-speed engraving and cutting station, delivering a focused 0.08 x 0.08 mm spot for intricate detail on wood, leather, acrylic, and more.

Overview

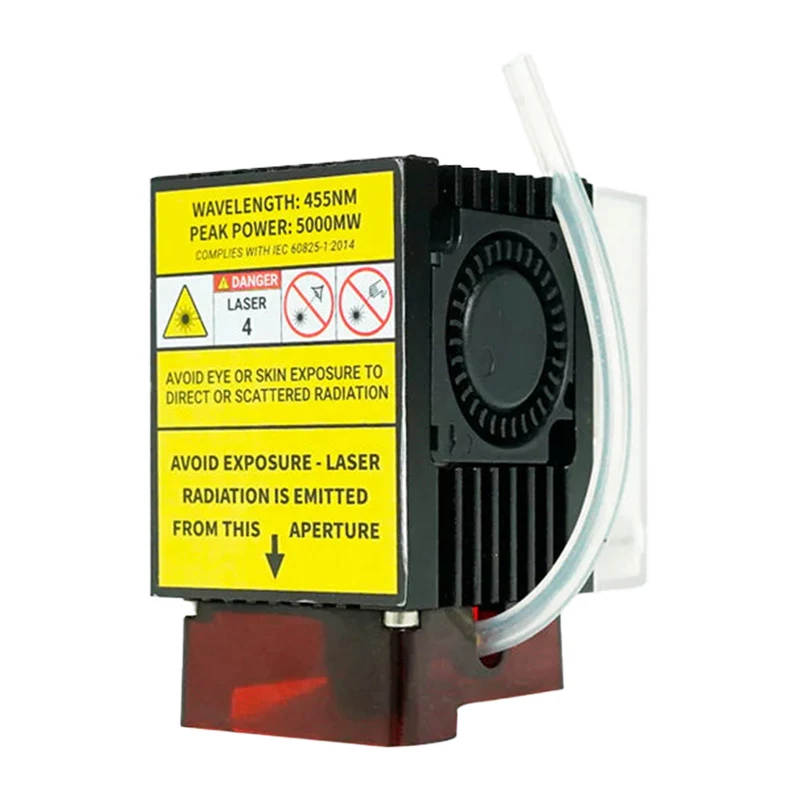

The MAKERA Carvera Air Laser Module is a dedicated add-on that seamlessly integrates with the Carvera Air CNC machine. It uses a 450–455 nm blue diode laser with fixed focus and integrated air cooling, ensuring consistent performance for both engraving and light cutting tasks. The module draws power directly from the Carvera Air's 24V DC supply via a proprietary connector, eliminating extra cables or power bricks.

What stands out

• 10W optical power for fast, deep engraving and clean cuts on thin materials.
• Ultra-fine 0.08 x 0.08 mm laser spot delivers crisp text, logos, and photo engravings.
• Integrated safety shield and interlock with Carvera Air enclosure for worry-free operation.
• Long-life diode rated for over 10,000 hours, reducing maintenance costs.
• Plug-and-play compatibility with Carvera Studio software—no complex setup.

Technical details

• Laser type: Diode laser, 450–455 nm wavelength (blue).
• Optical output power: 10 W.
• Focus type: Fixed focus, no manual adjustment needed.
• Max engraving speed: up to 6000 mm/min (machine dependent).
• Engraving materials: wood, leather, paper, fabric, dark acrylic, anodized aluminum, stone, coated ceramics.
• Cutting materials: thin wood, thin acrylic, paper, fabric, leather.
• Cooling: integrated air cooling for continuous operation.
• Input voltage: 24V DC supplied by Carvera Air.
• Connection: proprietary Carvera Air connector.
• Safety: integrated safety shield, emergency stop and enclosure interlock via Carvera Air.
• Operating temperature: 0°C to 40°C.
• Laser lifespan: >10,000 hours.
• Control software: Carvera Studio.
• Processing modes: engraving and cutting.

Our verdict

For Carvera Air owners looking to expand into laser work, this module is a no-brainer. The 10W optical power and fine spot size deliver professional results, while the integrated safety features and seamless software integration make it accessible even for beginners. Whether you're personalizing gifts or prototyping parts, the Air Laser Module adds serious versatility to your CNC setup.
