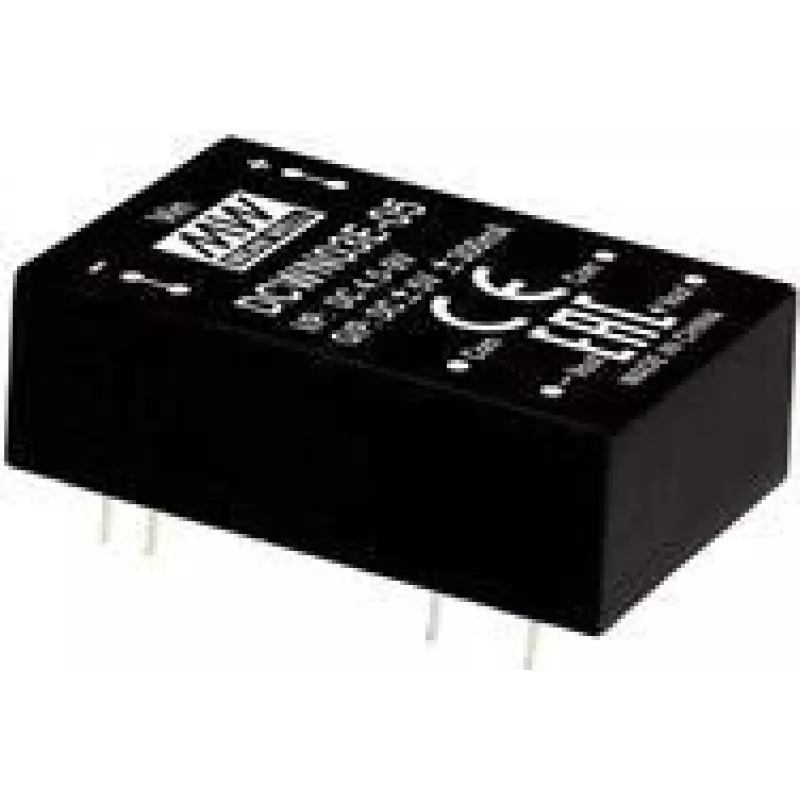

MEAN WELL DCWN03C-15 conversor elétrico 3 W 36-72 V 100 mA

The MEAN WELL DCWN03C-15 electric converter 3 W 36-72 V 100 mA is a compact DC-DC module designed to deliver a stable low-current output from a higher-voltage DC source. With a 36–72 V input range and a regulated output current of 100 mA, this converter is intended for applications requiring small, reliable power delivery in a compact package. Its design emphasizes efficient conversion and dependable operation where a modest constant current or power sink is needed.

Advantages

This converter provides a narrow, well-defined output current and stable performance across the specified input range. Its small footprint and low power rating make it suitable for integration into space-constrained electronic systems. The device offers efficient DC-DC conversion with minimal external components required for typical installations, and it is suited to continuous operation under appropriate thermal conditions.

Suitable for

• Powering low-current LED loads or indicators from higher-voltage DC rails
• Supplying sensors, transmitters, or instrumentation that require a constant low current
• Embedded systems and industrial controls with limited power budgets
• Battery-powered equipment where voltage conversion from mid/high DC voltage is needed

Key specifications

• Output power: 3 W maximum
• Input voltage range: 36–72 V DC
• Output current: 100 mA (regulated)
• Conversion type: DC-DC converter
• Form factor: compact module suitable for PCB mounting or integration

How to use

Connect the converter input to a stable DC source within the specified 36–72 V range, observing correct polarity. Connect the output to the load that requires the regulated 100 mA current or appropriate downstream circuitry. Ensure adequate thermal management by providing ventilation or mounting to a surface with heat dissipation if the converter is used continuously near its maximum power rating. Follow standard best practices for wiring, grounding, and protection against short circuits or transients in the supply line.

Recommendations

Operate the converter within the specified input voltage and output power limits, and allow for margin in thermal design. Use appropriate input protection (fuse, transient suppression) and ensure correct polarity during installation. For LED or sensitive loads, verify compatibility with a constant-current source and test under intended environmental conditions before final deployment.
