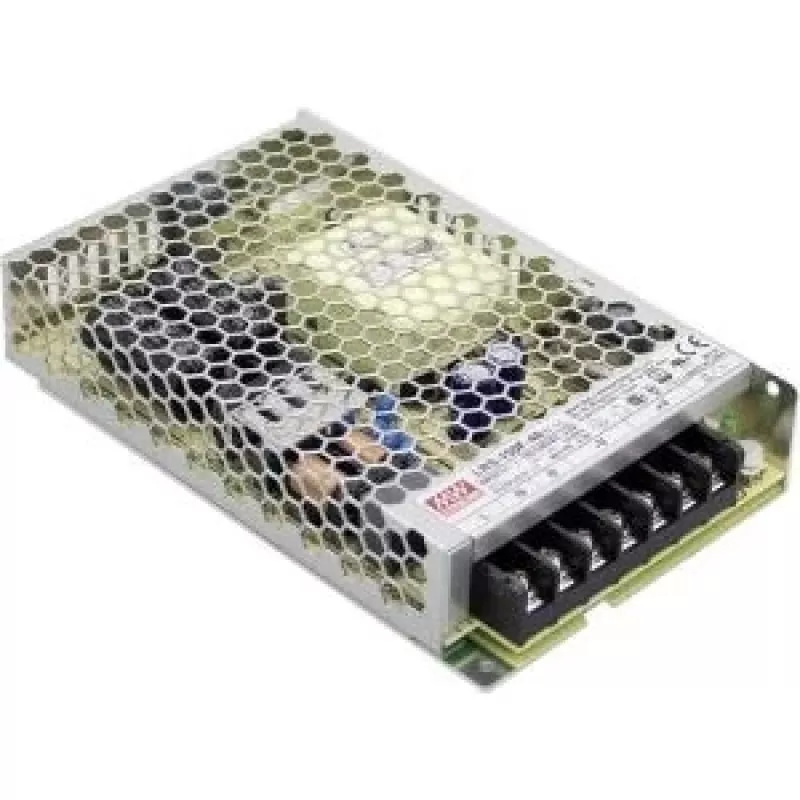

MEAN WELL LRS-150F-36 - 150 W - 85 - 264 V - Ativo - Doméstico EN 60335 ITE EN/UL/IEC 60950 - Metálico - 97 mm (LRS-150F-36)

Industrial automation engineers and system integrators often need a reliable, compact power source for their 36V DC equipment. The MEAN WELL LRS-150F-36 delivers 150W of clean power from any standard AC mains, making it a go-to choice for factory floors, control panels, and household appliances that demand consistent performance.

Key specifications

• Output: 36V DC, 4.2A, 150W
• Input: 85~264V AC, 47~63Hz, active PFC
• Efficiency: 88.5% typical, no-load consumption <0.5W
• Safety: EN 60335-1, EN/UL/IEC 60950-1, EN 61558-1/-2-16
• Protections: short circuit, overload, over voltage, over temperature
• Enclosure: metallic (aluminum), free air convection cooling
• Operating temperature: -30°C to +70°C
• Dimensions: 97mm length (see full dimensions in attributes)

Why choose it

This power supply is built for harsh environments and continuous operation. Its active PFC ensures efficient use of input power, reducing energy costs and meeting modern efficiency standards. The metallic enclosure provides excellent heat dissipation and durability, while the wide input voltage range makes it suitable for global use. With comprehensive safety certifications, it can be integrated into household appliances as well as industrial ITE equipment.

Ideal use cases

• Industrial control systems and automation equipment
• Household appliances requiring 36V DC (per EN 60335)
• LED lighting and signage
• Test and measurement instruments
• Any application needing a reliable 150W 36V DC supply

Good to know

The LRS-150F-36 is part of MEAN WELL's popular LRS series, known for its slim design and high reliability. It operates silently with free air convection, so no fan is needed, reducing maintenance and noise. The unit can withstand input surges up to 300VAC for 5 seconds, adding robustness in unstable power conditions. Mounting is straightforward with screw terminals, and the compact size saves space in enclosures.
