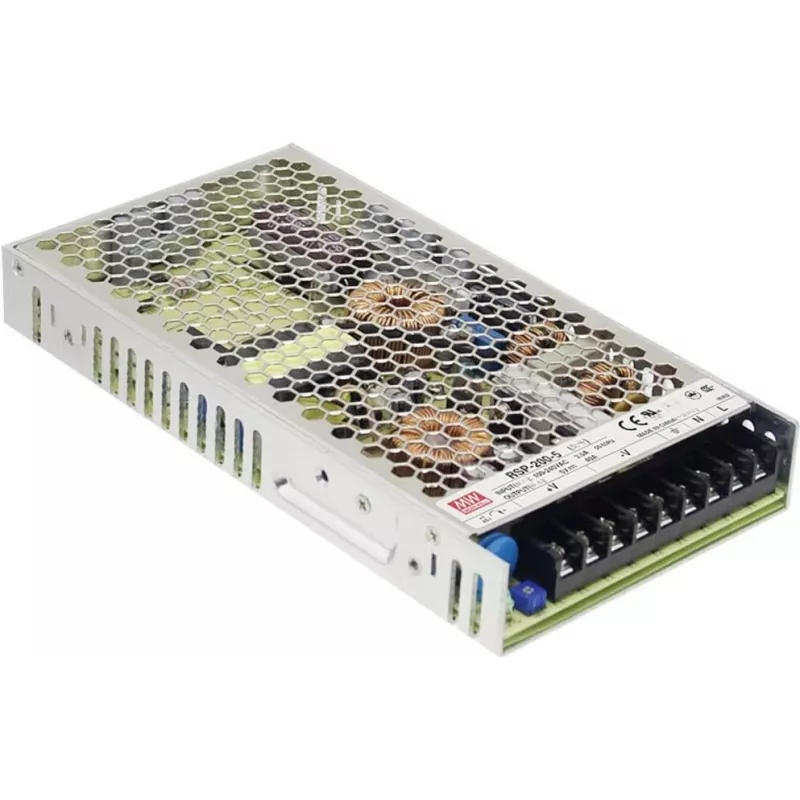

MEAN WELL RSP-200-24 201,6W 24V 8,4A fonte de alimentação fechada

Industrial-grade 201.6W AC/DC power supply delivering a stable 24V DC output at up to 8.4A in a compact 1U low-profile metal enclosure. Built for reliable operation in demanding environments, it features free air convection cooling, a wide input voltage range, and comprehensive protection circuits.

Advantages

The RSP-200-24 achieves 90% efficiency at full load, reducing energy waste and heat generation. Its rugged metal housing withstands harsh conditions, while the adjustable output voltage (21.6–28.8V) allows fine-tuning for specific applications. With an MTBF exceeding 300,000 hours and compliance with UL60950-1, TUV EN60950-1, and CCC GB4943, this power supply ensures long-term dependability.

Suitable for

• Industrial automation and control systems
• LED lighting and signage
• Test and measurement equipment
• Telecommunications infrastructure
• General electronics requiring 24V DC power

Key specifications

• Output power: 201.6W
• Output voltage: 24V DC (adjustable 21.6–28.8V)
• Output current: 8.4A
• Input voltage: 88–264V AC / 124–370V DC
• Efficiency: 90% at 230V AC full load
• Cooling: Free air convection
• Protections: Short circuit, overload, over voltage, over temperature
• Operating temperature: -30°C to +70°C
• Ripple & noise: 150mVp-p
• Isolation voltage: 3kV AC (input to output)
• Safety standards: UL60950-1, TUV EN60950-1, CCC GB4943
• MTBF: >300,000 hours

Recommendations

For reliable 24V DC power in space-constrained industrial or commercial installations, the MEAN WELL RSP-200-24 offers an excellent balance of performance, durability, and safety. Its adjustable output and wide temperature range make it a versatile choice for system integrators and maintenance professionals.
