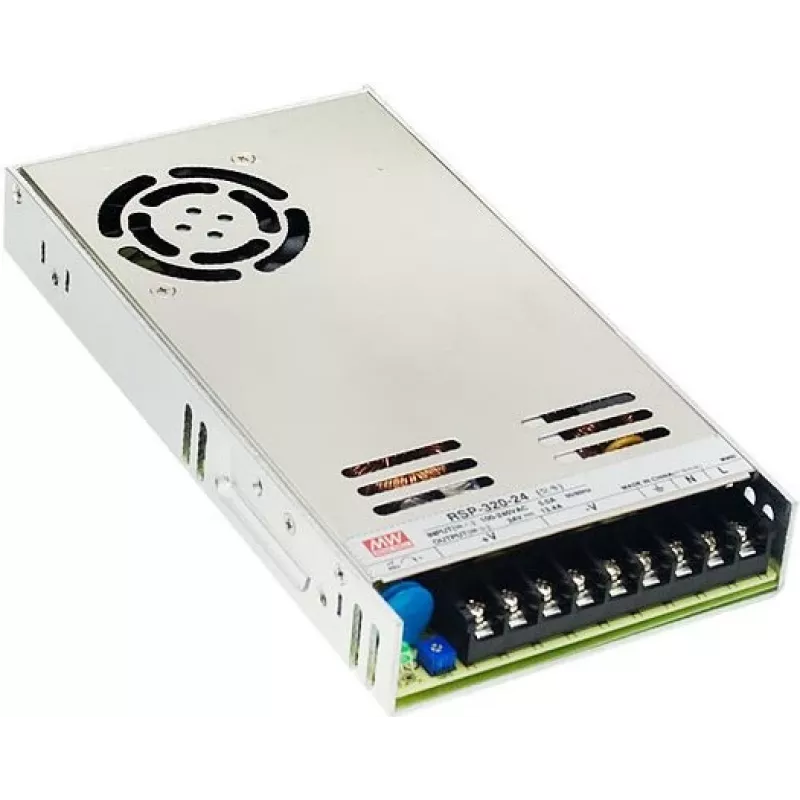

MEAN WELL RSP-320-24 Fonte de alimentação comutada fechada 320W 24V 13,4A com PFC, 1U Low Profile, entrada AC 88-264V

Industrial automation engineers and system integrators often need a dependable power source that fits into tight rack spaces without compromising on output. The MEAN WELL RSP-320-24 delivers a steady 24 V DC at up to 13.4 A, making it a solid choice for powering motors, controllers, LED arrays, and other 24 V equipment in factory floors, test benches, and communication racks.

Key specifications

• Output: 24 V DC, 13.4 A, 320 W maximum
• Input: 88–264 V AC (124–370 V DC), 47–63 Hz
• Active PFC (>0.95 at full load) for efficient power usage
• Built-in DC fan with ON/OFF control for thermal management
• Protections: overload, overvoltage, short circuit, overtemperature
• 1U low-profile form factor for space-constrained installations
• High efficiency up to 89%
• Ripple & noise: 150 mVp-p
• Operating temperature: -30 °C to +70 °C
• Certifications: UL60950-1, TUV EN60950-1, CB, CE

Why choose it

This power supply is built for reliability in demanding environments. Its active PFC reduces harmonic distortion and improves energy efficiency, while the integrated fan keeps temperatures stable even under full load. The 1U height allows installation in standard 19-inch racks, saving valuable cabinet space. With a wide input voltage range, it operates seamlessly across different mains standards worldwide.

Ideal use cases

• Industrial automation and control systems
• LED lighting and signage
• Test and measurement equipment
• Telecommunications and networking devices
• General 24 V DC applications requiring high power density

Good to know

The RSP-320-24 includes a built-in fan with ON/OFF control, which reduces noise when the load is light. Its hold-up time of 16 ms at 230 V AC helps bridge short power interruptions, and the isolation voltage of 3 kV AC between input and output ensures safety. The unit is backed by a mean time between failures (MTBF) of over 200,000 hours, calculated per MIL-HDBK-217F at 25 °C.
