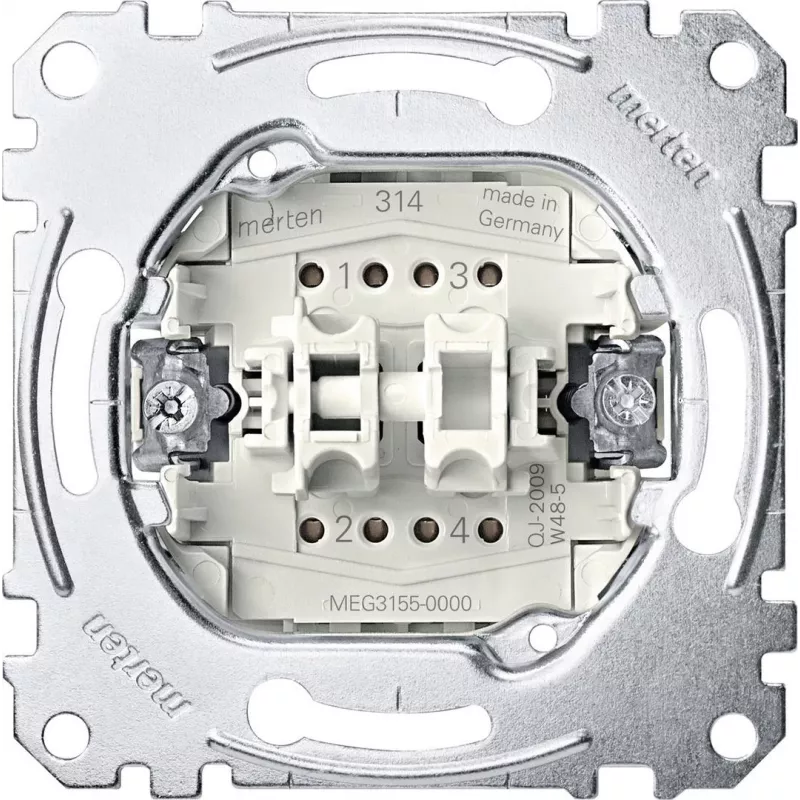

Merten System M Mecanismo de botão duplo 2 NO 10A 250V AC embutir MEG3055-0000

Double push-button insert for Merten System M, offering two independent normally-open contacts for momentary switching of lighting, blinds, or door openers. Its flush-mounted design integrates seamlessly into standard wall boxes, providing a clean and reliable control solution for residential and commercial installations.

Advantages

The Merten MEG3055-0000 delivers robust performance with a 10 A / 250 V AC rating, ensuring compatibility with a wide range of loads. The screw terminals accept solid or stranded conductors from 1.5 to 2.5 mm², simplifying installation. The halogen-free thermoplastic housing meets modern environmental standards, while the IP20 protection class is suitable for indoor dry locations. The momentary action of the two normally-open contacts allows flexible control of two separate circuits or functions, such as two lighting groups or a blind up/down pair.

Suitable for

• Lighting control in homes, offices, and public buildings
• Blind and shutter motor control
• Door opener activation
• Integration with Merten System M frames and rockers

Key specifications

• Product type: Double push-button insert
• Series: Merten System M
• Contact configuration: 2 NO (normally open)
• Switching function: Momentary (push-button)
• Rated current: 10 A
• Rated voltage: 250 V AC
• Number of poles: 1
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (solid or stranded)
• Mounting type: Flush-mounted
• Material: Thermoplastic, halogen-free
• Protection class: IP20
• Operating temperature: -5 to +40 °C
• Number of actuators required: 2 (for double push-button)

Recommendations

For a complete installation, pair this insert with two Merten System M push-button rockers and a suitable frame. Ensure the electrical load does not exceed 10 A per contact. Professional installation by a qualified electrician is recommended.
