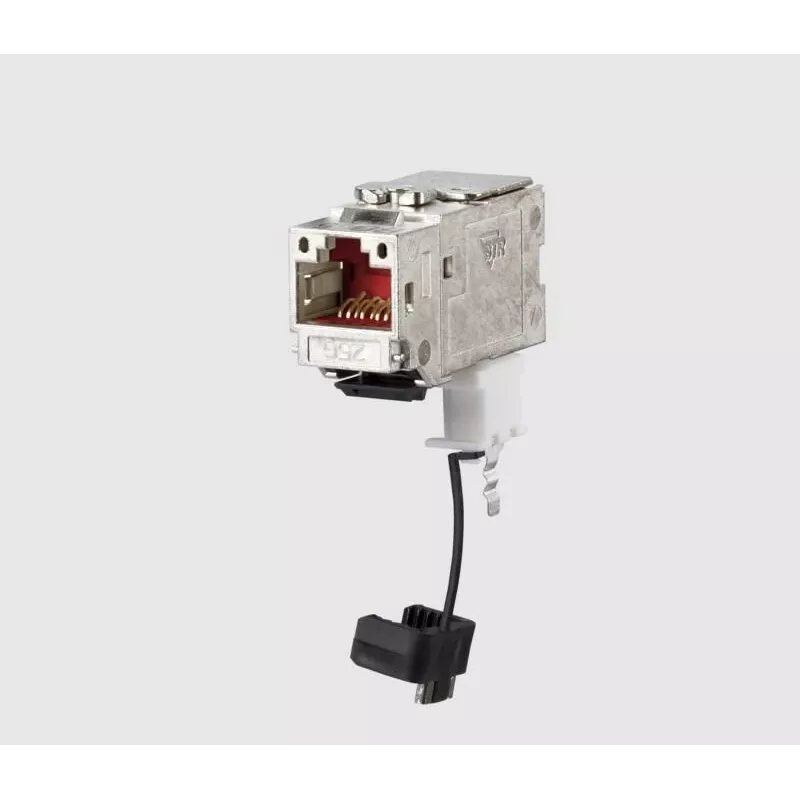

METZ CONNECT Módulo 25G Keystone Jack 270° certificado GHMT para 25GBASE-T

The METZ CONNECT 25Gmodul Keystone 270° Jack is a high-performance shielded keystone jack designed for 25GBASE-T applications. GHMT certified according to ISO/IEC TR-11801-9905 for channel links up to 30 m, with future certification for longer distances. Fully backward compatible with Class E and Class EA standards, supporting PoE/PoE+/4PPoE.

Advantages

Tool-free termination saves installation time. 270° cable entry allows flexible routing. Die-cast zinc housing ensures durability and excellent shielding. Supports solid and stranded cables from AWG 24/1 to 22/1 and AWG 26/7 to 22/7.

Suitable for

• 25GBASE-T networks in data centers and enterprise environments
• High-speed channel links up to 30 m (future up to 100 m)
• Backward compatible with 10GBASE-T, 5GBASE-T, 2.5GBASE-T, and 1000BASE-T

Key specifications

• Product Type: Keystone Jack
• Data Rate: 25GBASE-T
• Certification: GHMT certified per ISO/IEC TR-11801-9905
• Connector: RJ45, shielded
• Cable Entry: 270°
• Termination: Tool-free IDC
• Wiring: T568A/T568B
• Housing: Die-cast zinc
• PoE Support: IEEE 802.3af/at/bt
• Mating Cycles: >750
• Operating Temperature: -40°C to +70°C

Recommendations

For optimal performance, use with category 6A or higher shielded cable. Ensure proper grounding for full shielding effectiveness.
