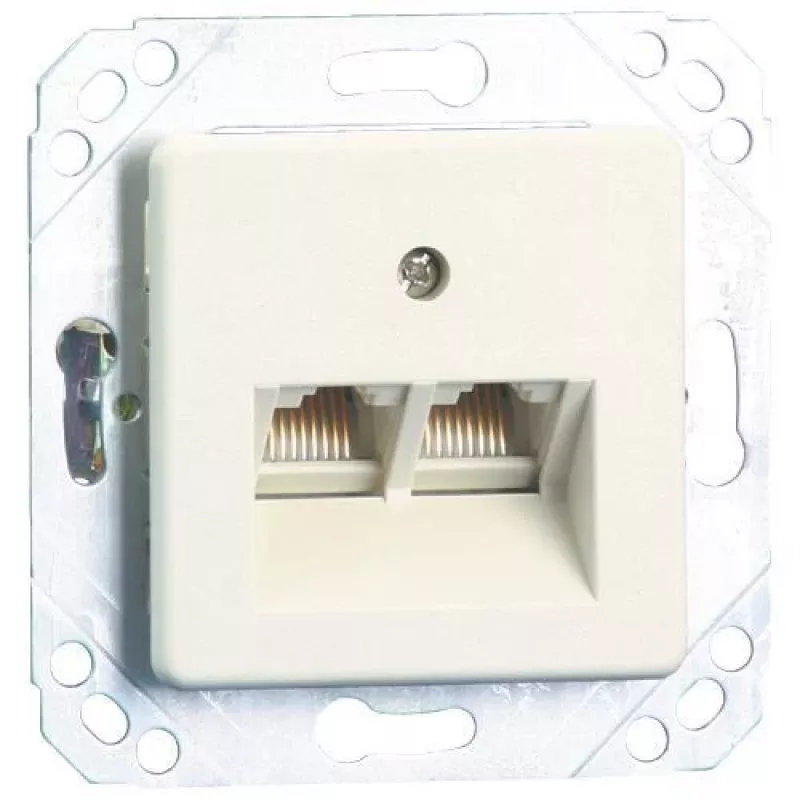

Metz Connect UPk unidade de ligação universal encastrada, design UAE, 2xRJ45, mini terminal (130064111-I)

In structured cabling for office buildings, the Metz Connect UPk flush-mount connection unit provides a reliable termination point for high-speed data networks. Installers and network technicians use this unit to create two RJ45 outlets behind a standard UAE cover plate, ensuring a clean and professional finish. Its die-cast zinc housing delivers full shielding, making it suitable for 10 Gigabit Ethernet applications up to 500 MHz.

Key specifications

• Product type: Data connection unit for flush mounting
• Ports: 2 x RJ45, fully shielded
• Performance: Cat.6A / Class EA, up to 500 MHz, 10GBase-T
• Termination: IDC mini clamps, tool-free for solid wires
• Wire support: AWG 24/1 - 22/1 solid, AWG 26/7 - 22/7 stranded
• Housing: Die-cast zinc shielding, plastic front, UAE design compatible
• PoE: Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)
• Certifications: GHMT certified, >750 mating cycles
• Operating temperature: -40 °C to +70 °C

Why choose it

The UPk unit combines high-performance shielding with easy installation. Its compact design fits standard flush-mount boxes and accepts common UAE cover plates, blending into any environment. The fully shielded die-cast housing minimizes alien crosstalk, ensuring stable 10G connections even in dense installations. Tool-free termination for solid conductors speeds up deployment, while support for stranded wires offers flexibility for patch cords.

Ideal use cases

• Office workstations requiring two data outlets in a single flush-mount box
• Conference rooms and huddle spaces with high-bandwidth demands
• Industrial or commercial buildings where robust shielding is essential
• PoE-powered devices such as IP phones, cameras, and wireless access points

Good to know

The unit is part of the Metz Connect UAE design range, ensuring compatibility with a wide variety of cover plates from different manufacturers. For stranded wire termination, an LSA tool is recommended. The eight-way cable entry provides flexibility for routing, and the high mating cycle count ensures long-term reliability in frequently accessed outlets.
