Miboxer Controlador LED Série HC 2in1 DC12-48V Zigbee 3.0 + 2.4G HP 30A

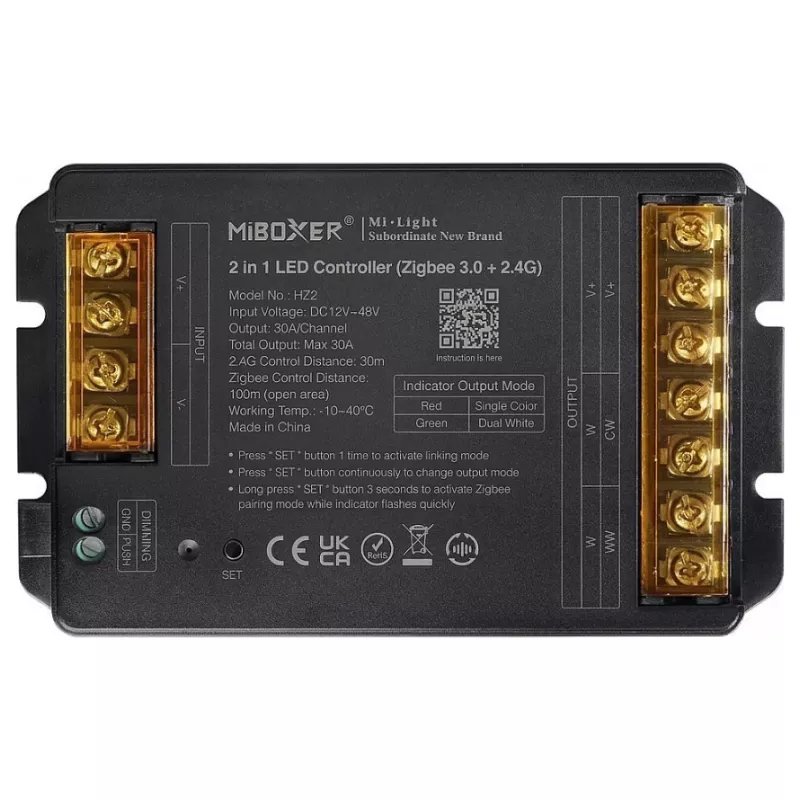

The Miboxer HZ2 LED Controller is a versatile 2-in-1 device that combines Zigbee 3.0 and 2.4GHz wireless technologies, designed for smart home integration and remote control of single color (DIM) and CCT (dual white) LED strips. With a wide input voltage range of DC 12-48V and a maximum output current of 30A, it supports powerful lighting setups up to 1440W at 48V.

Advantages

This controller offers seamless compatibility with Zigbee 3.0 gateways like Philips Hue and SmartThings, as well as MiLight/Miboxer 2.4G remotes. Its PWM dimming technology ensures smooth 0-100% dimming without flicker. Built-in protection features (overload, short circuit, overheat) guarantee safe operation, while OTA firmware updates keep the device up-to-date.

Suitable for

• Smart home lighting systems requiring Zigbee 3.0 integration
• Single color or CCT LED strip installations
• Commercial and residential lighting projects

Key specifications

• Input Voltage: DC 12-48V
• Output Current: Max 30A (total)
• Max Output Power: 1440W (at 48V)
• Wireless Protocols: Zigbee 3.0, 2.4GHz (MiLight/Miboxer)
• Control Type: Smart Home Integration (Zigbee), RF Remote Control (2.4G)
• Supported LED Types: Single Color (DIM), CCT (Dual White)
• Dimming Range: 0-100%
• Dimming Technology: PWM
• Number of Channels: Configurable (1 for DIM, 2 for CCT)
• Compatibility: Zigbee 3.0 Gateways (e.g., Philips Hue, SmartThings), MiLight/Miboxer 2.4G Remotes
• Operating Temperature: -20°C to +60°C
• Protection Features: Overload, Short Circuit, Overheat
• Connection Type: Screw Terminals
• Housing Material: ABS Plastic
• Certifications: CE, RoHS
• Standby Power Consumption: <0.5W
• Control Distance (RF): Up to 30m
• Firmware Updates: Over-the-Air (OTA) via Zigbee gateway

Recommendations

For optimal performance, use with a compatible Zigbee 3.0 gateway and ensure the power supply matches the LED strip voltage. The controller supports both single color and CCT strips; configure channels accordingly.
