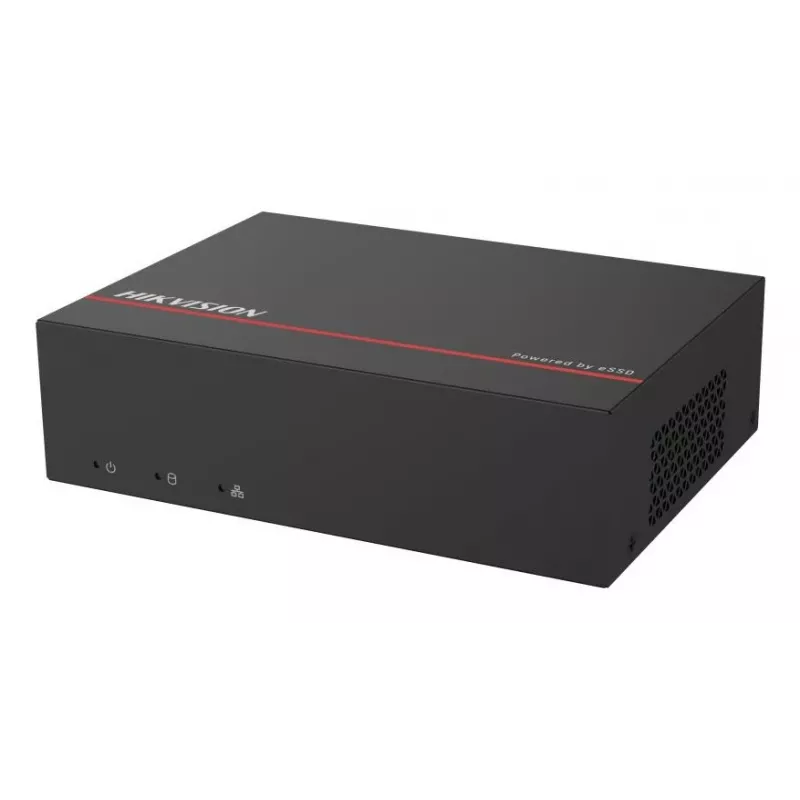

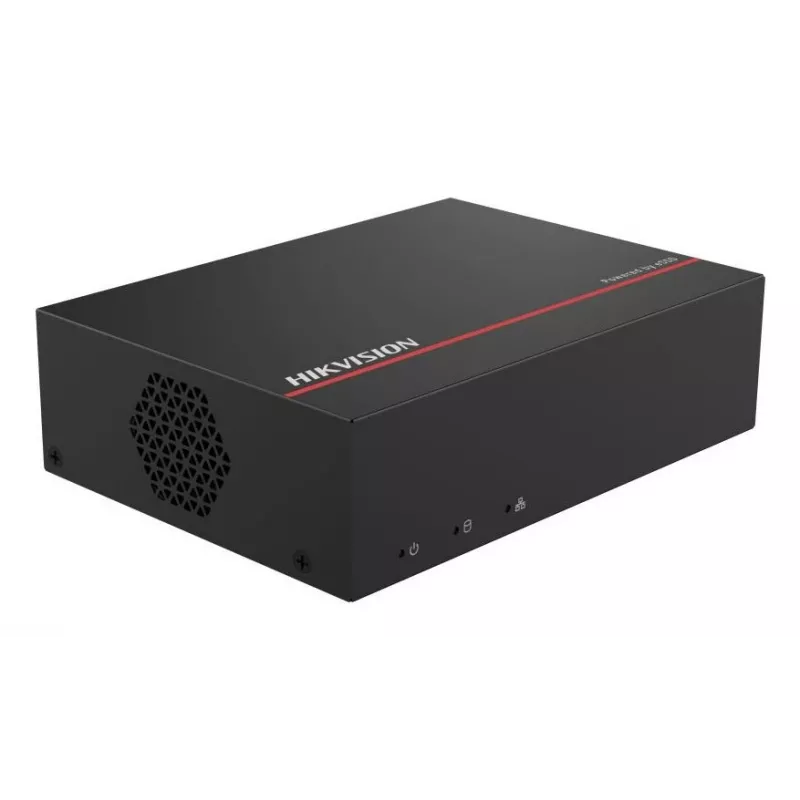

Mini DVR Hikvision iDS-E04HUHI-XB com SSD, 4 canais AHD/CVI/TVI

The Hikvision iDS-E04HUHI-XB is a compact and powerful mini DVR designed for small to medium surveillance systems. It supports 4 analog channels (TVI/AHD/CVI/CVBS) plus 1 IP channel, and comes with a pre-installed SSD for reliable storage. With AcuSense Motion Detection 2.0, it intelligently distinguishes humans and vehicles, reducing false alarms. Ideal for retail stores, offices, and homes.

Advantages

AcuSense technology provides smart human/vehicle analysis, enhancing security efficiency. The built-in SSD ensures fast data access and durability. Compact design saves space while delivering up to 6 MP IP camera support.

Suitable for

• Small businesses and retail shops
• Office surveillance
• Residential security systems
• Warehouses and storage facilities

Key specifications

• Video Input: 4-ch BNC (TVI/AHD/CVI/CVBS) + 1-ch IP (up to 6 MP)
• Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Video Output: 1x HDMI, 1x VGA (simultaneous, up to 1080p)
• Audio: 1-ch RCA input, 1-ch RCA output, two-way audio
• Storage: 1x SATA interface for 2.5" SSD/HDD up to 10 TB
• Network: 1x RJ45 10/100 Mbps Ethernet
• USB: 2x USB 2.0
• Power: 12 VDC, ≤ 8 W (without HDD)
• Operating Temperature: -10 °C to +55 °C

Recommendations

For optimal performance, use Hikvision HDDs or SSDs. Ensure proper ventilation and stable power supply. Compatible with Hikvision cameras and third-party ONVIF devices.
