InLine B-76202Q Ficha Keystone RJ45 Slim, Cat.8.1, pack a granel de 24

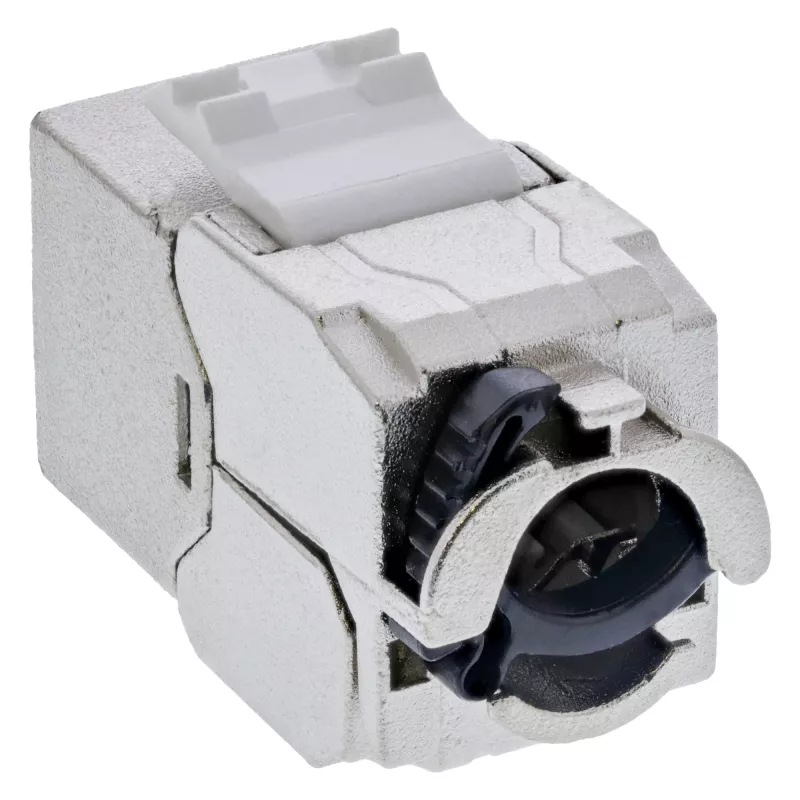

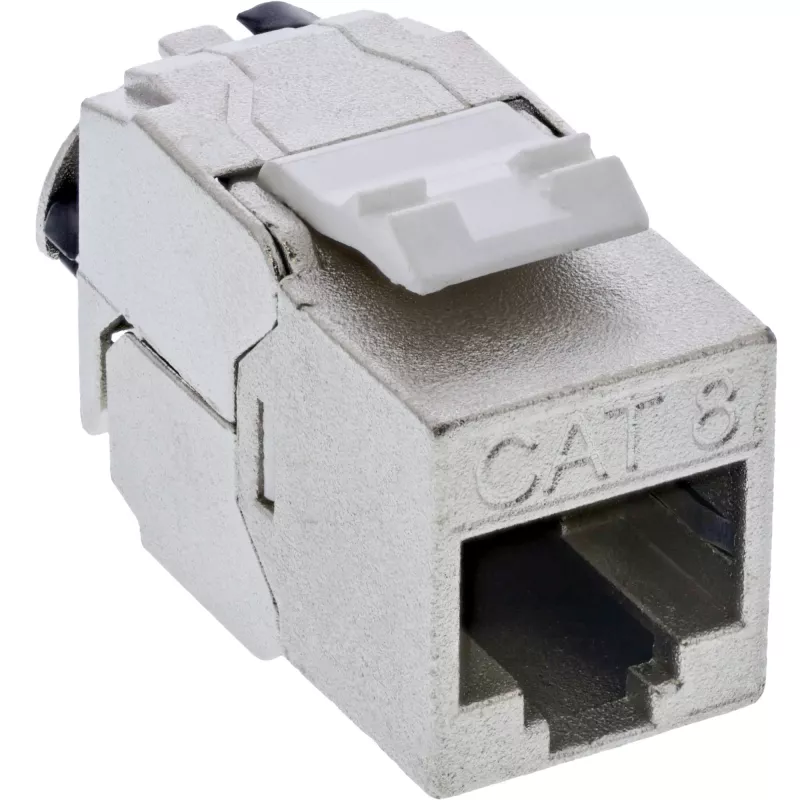

The InLine B-76202Q is a Keystone RJ45 jack module with Cat.8.1 specification and a slim die-cast housing. It supports data rates up to 10 Gbit/s and is suitable for 19" blank panels and junction boxes with LSA strip.

Key features

• RJ45 socket, Keystone SNAP-In module
• Cat.8.1 2000MHz
• Suitable up to 10Gbit/s
• For 19" empty sheet metal and junction boxes with LSA strip
• Fully shielded
• Die-cast housing
• Suitable for rigid installation cables AWG 22-26 and outer diameter 6.0-8.5mm
• Supports PoE, PoE+
• Designed for 750 mating cycles

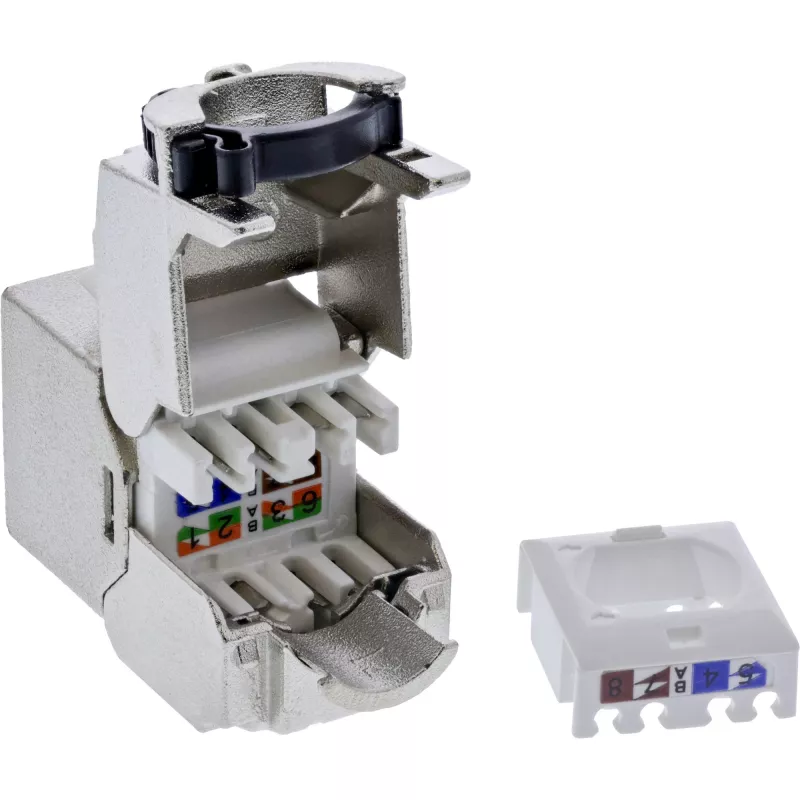

• Integrated cable clip on the cable side

Specifications

• Brand: InLine
• MPN: B-76202Q
• Network category: Cat.8.1
• Connection A: RJ45 female
• Connection B: LSA clamp
• Keystone SNAP-In compatible: Yes
• Shielding: Yes
• Width: 14.5mm
• Length: 31.8mm
• Height: 19.4mm
• Cutout height: 16mm
• Operation temperature: -10 to +60°C
• Storage temperature: -40 to +70°C
• Max. supported data transfer rate: 40Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90W
• Country of origin: Taiwan

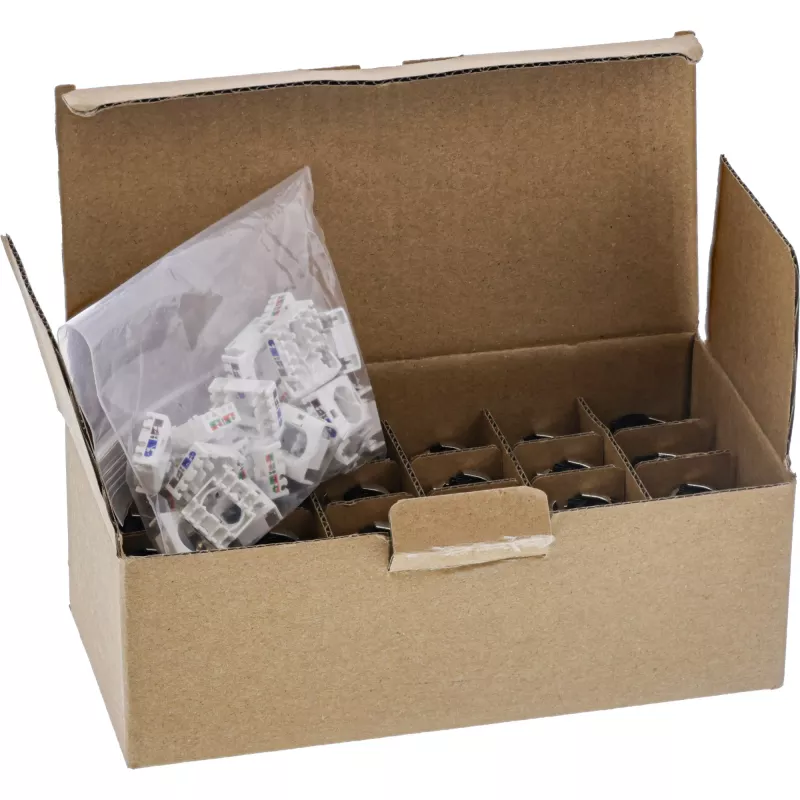

• Type of packaging: Bulk
• PU: 24
• EAN Barcode: 4043718312160
