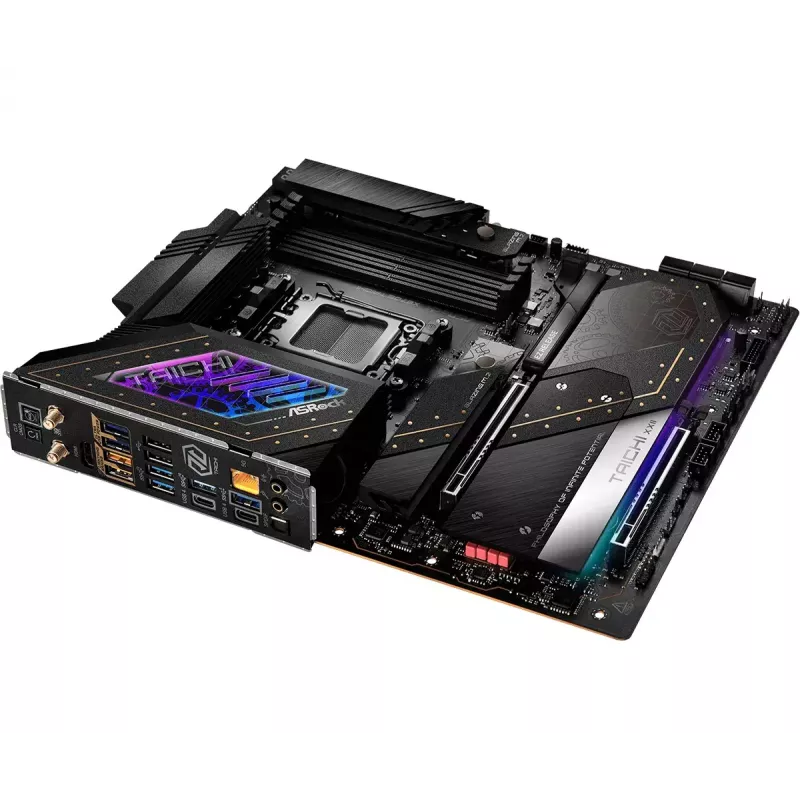

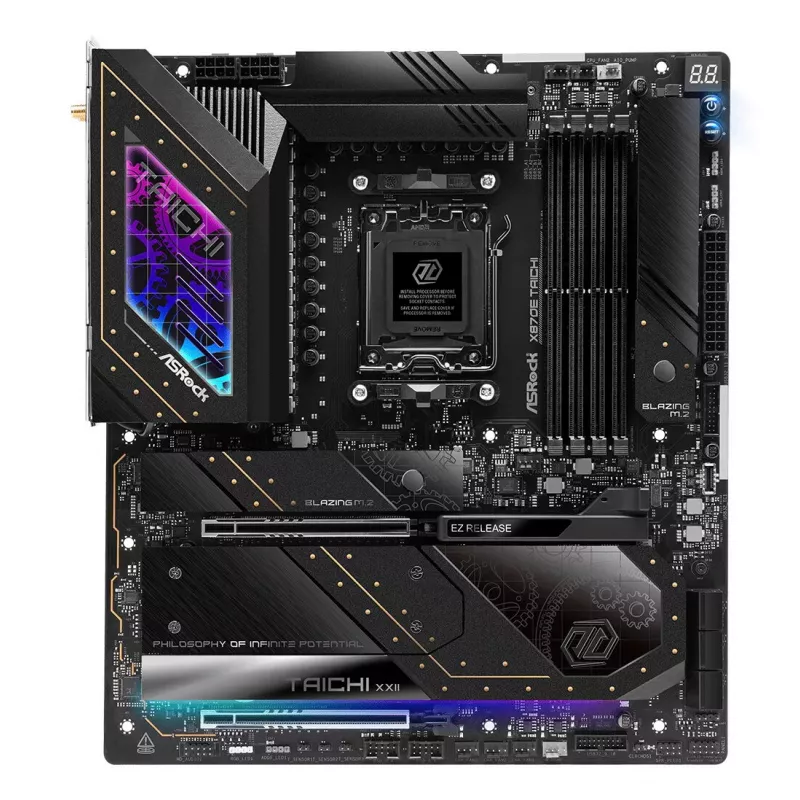

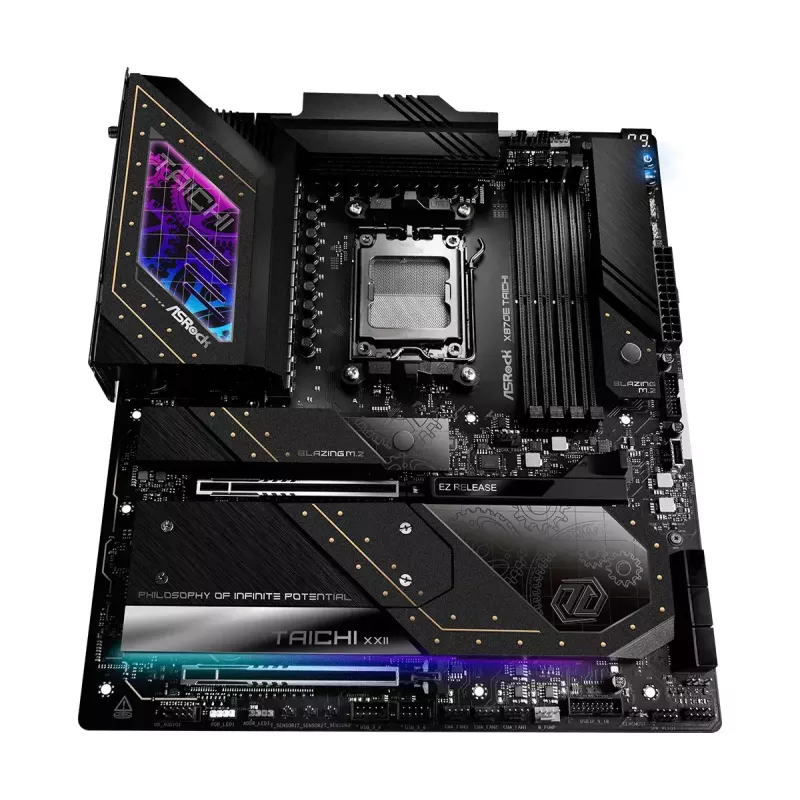

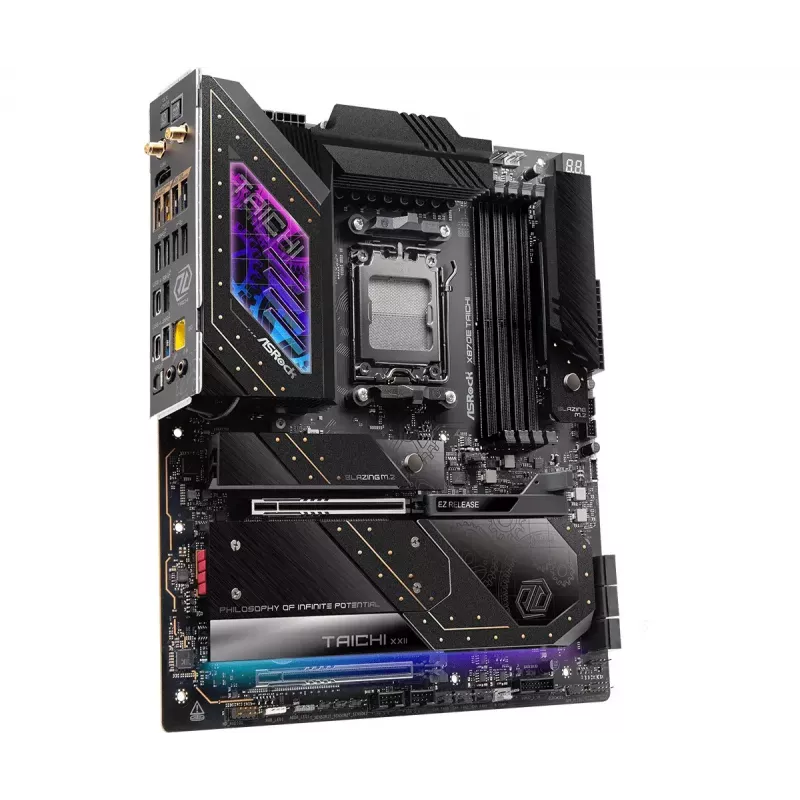

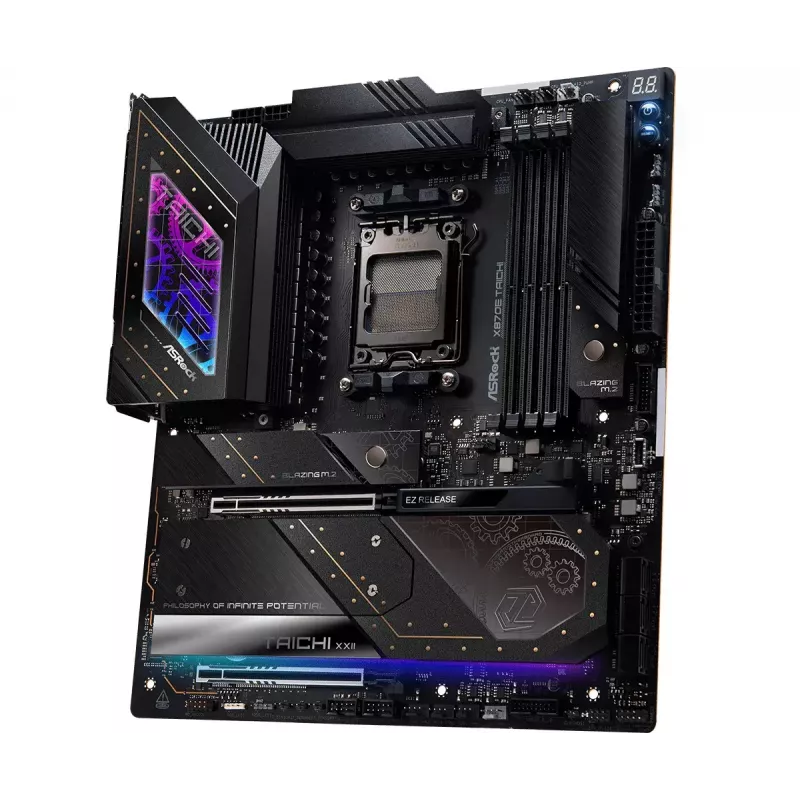

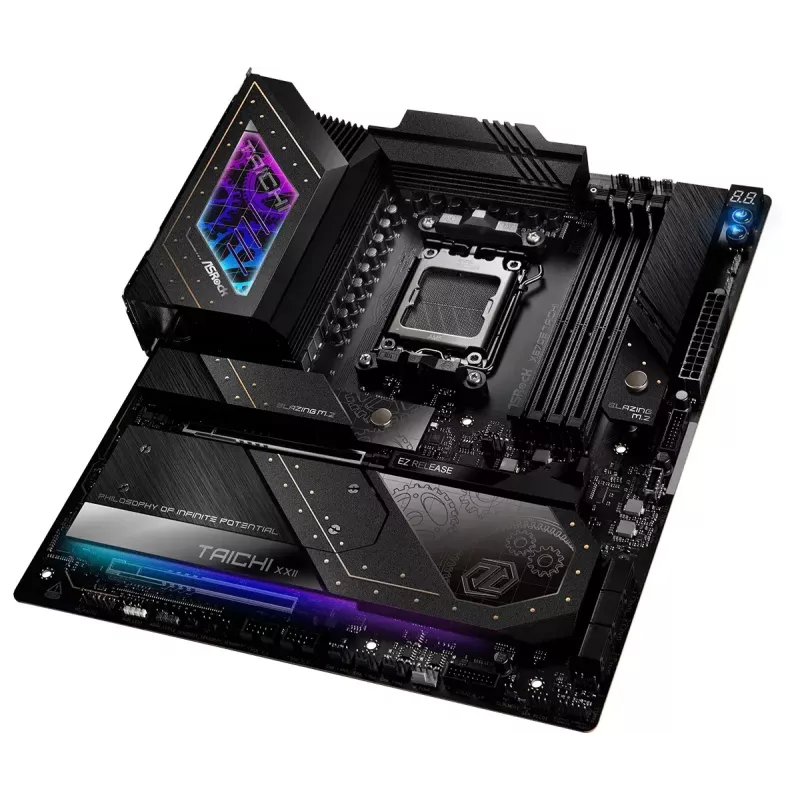

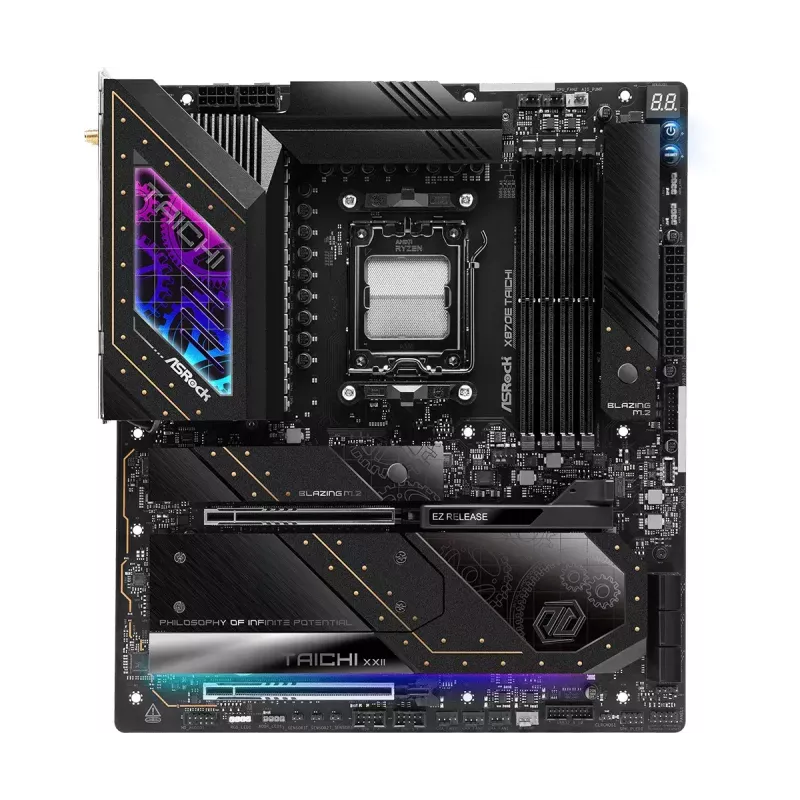

Motherboard ASRock X870E Taichi — AMD X870E, Socket AM5, Extended ATX, DDR5, 4 DIMM, até 256GB, Wi-Fi 7, 5Gb LAN

Taichi series flagship motherboard combines top-tier hardware, a robust power design, USB4 Type-C connectivity and DIY-friendly features. Built for high-end gaming and content creation, it delivers stable performance, extensive I/O options and advanced thermal and audio subsystems while supporting DDR5 memory, PCIe 5.0 devices and Wi‑Fi 7.

Advantages

The motherboard offers a reinforced 24+2+1 power phase design with SPS (Smart Power Stage) and a high-density power connector for stable CPU delivery and improved overclocking potential. A server-grade low-loss 8-layer PCB with 2oz copper supports PCIe 5.0 for graphics and M.2 SSDs and improves memory overclocking. High-capacity 20K capacitors (1000 µF) reduce ripple and stabilize output current. Cooling includes composite VRM heatsink with fan and enlarged M.2 heatsinks with toolless quick-release, while connectivity features USB4 Type-C, USB 3.2 Gen2x2 front header, optimized 5 Gb/s LAN and Wi‑Fi 7. Audio is upgraded with an ESS SABRE9219 DAC, WIMA capacitors and Nahimic audio processing for clearer voice and surround features.

Key specifications

• Power design: 24+2+1 phases with SPS (Dr.MOS)
• Capacitors: 20K Black 1000 µF
• PCB: Server-grade low-loss 8-layer with 2oz copper
• Memory: DDR5 with Intel XMP / AMD EXPO support
• Storage: PCIe Gen5 M.2 support, enlarged M.2 heatsinks, toolless M.2 installation
• Expansion: PCIe 5.0 reinforced steel slot
• Cooling: Composite VRM heatsink with fan, aluminum heatsinks, heat pipe
• Wireless: Wi‑Fi 7 (802.11be) with Multi-link Operation
• LAN: Optimized 5 Gb/s Ethernet connector

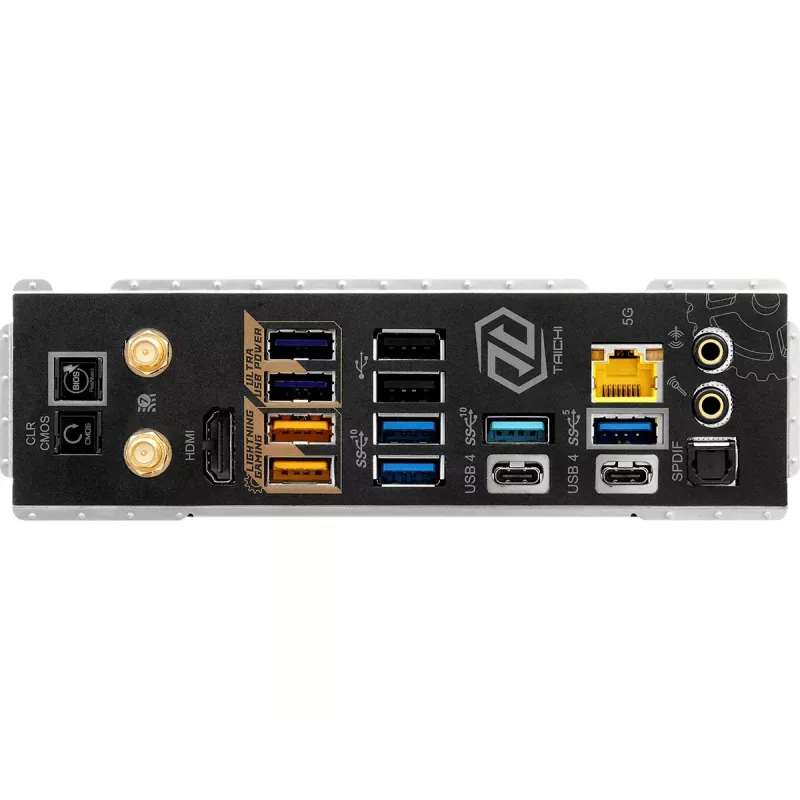

• USB: USB4 Type-C (40 Gbps), Front USB 3.2 Gen2x2 Type-C header (20 Gbps)
• Audio: ESS SABRE9219 DAC, WIMA audio capacitors, Nahimic audio suite
• BIOS/Tools: BIOS Flashback, Auto Driver Installer, flexible integrated I/O shield

How to use

Install the motherboard into a compatible ATX chassis, connect CPU, DDR5 memory modules (enable XMP/EXPO profiles if supported), GPUs into the reinforced PCIe slot and M.2 SSDs into the PCIe Gen5 M.2 slots using the toolless heatsink mechanism. Attach power using the Hi-Density CPU 8-pin and 24-pin ATX connectors. Connect front-panel USB Type-C if available for Gen2x2 speeds. For BIOS updates, use BIOS Flashback with a USB drive and power supply without needing CPU or memory. Install drivers using the Auto Driver Installer provided.

Recommendations

For stable overclocking and best compatibility, use high-quality DDR5 modules listed on the motherboard Memory QVL and ensure adequate case airflow for composite VRM and enlarged M.2 heatsinks. Perform memory and CPU overclocking carefully and at your own risk; verify BIOS and driver updates from the manufacturer.
