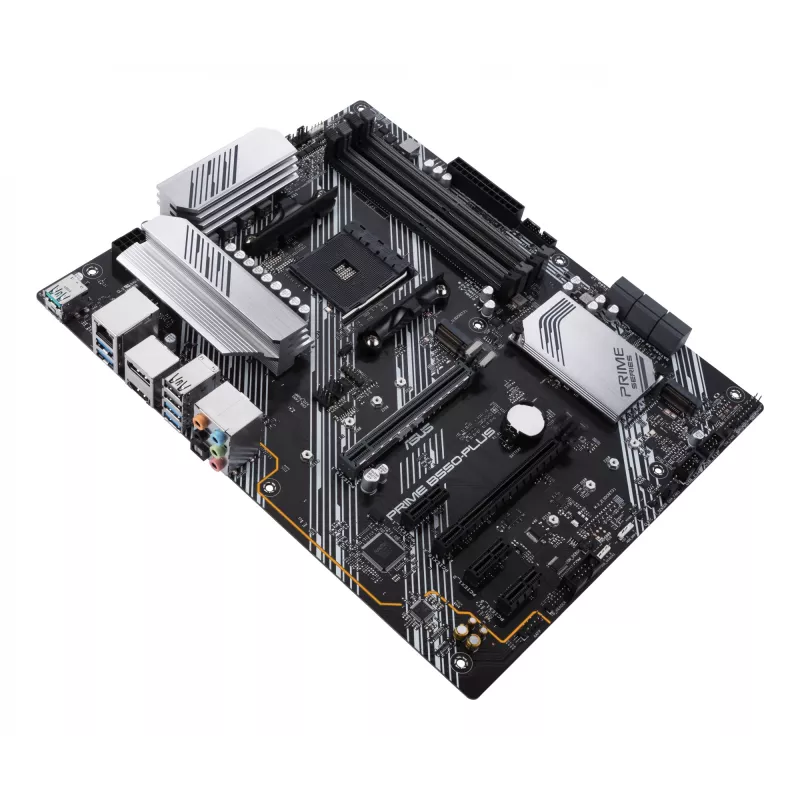

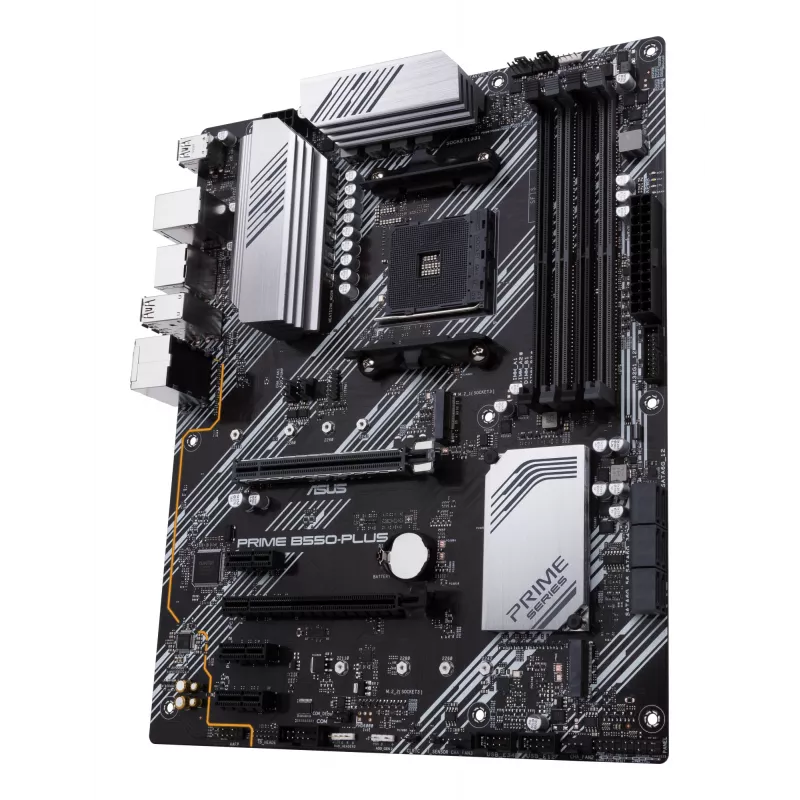

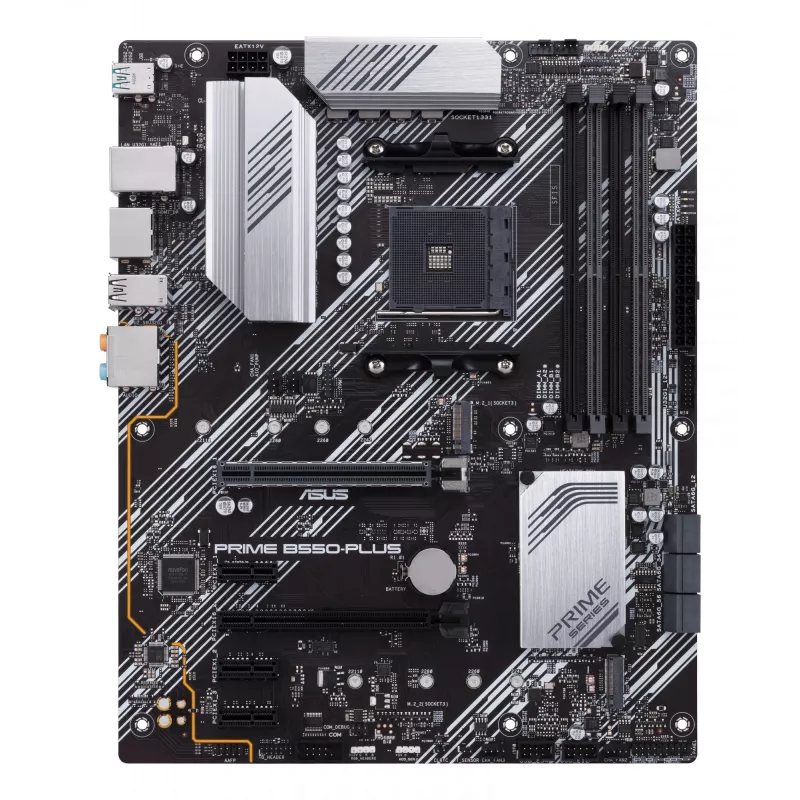

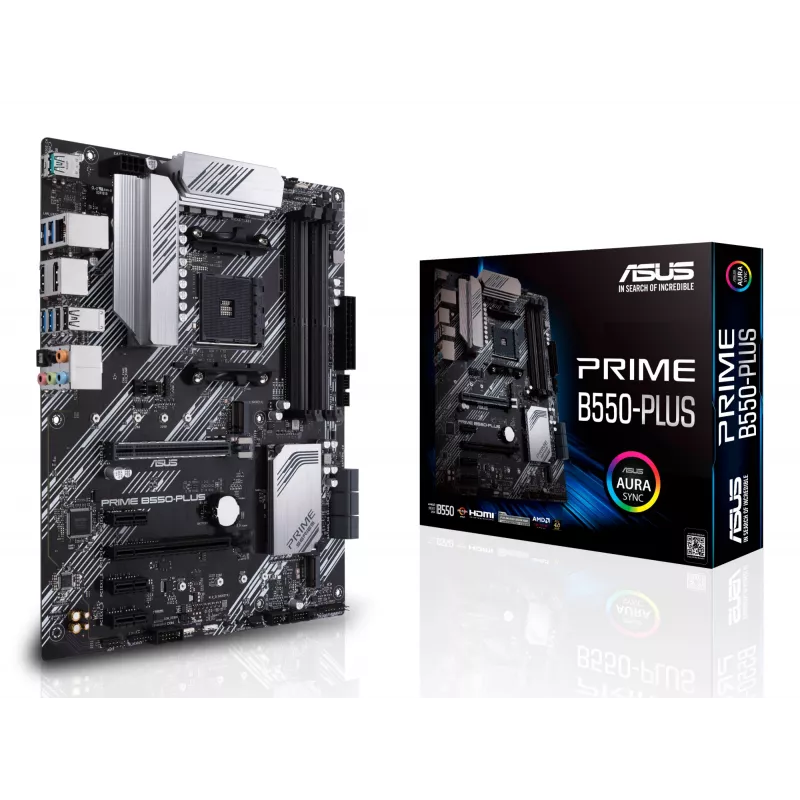

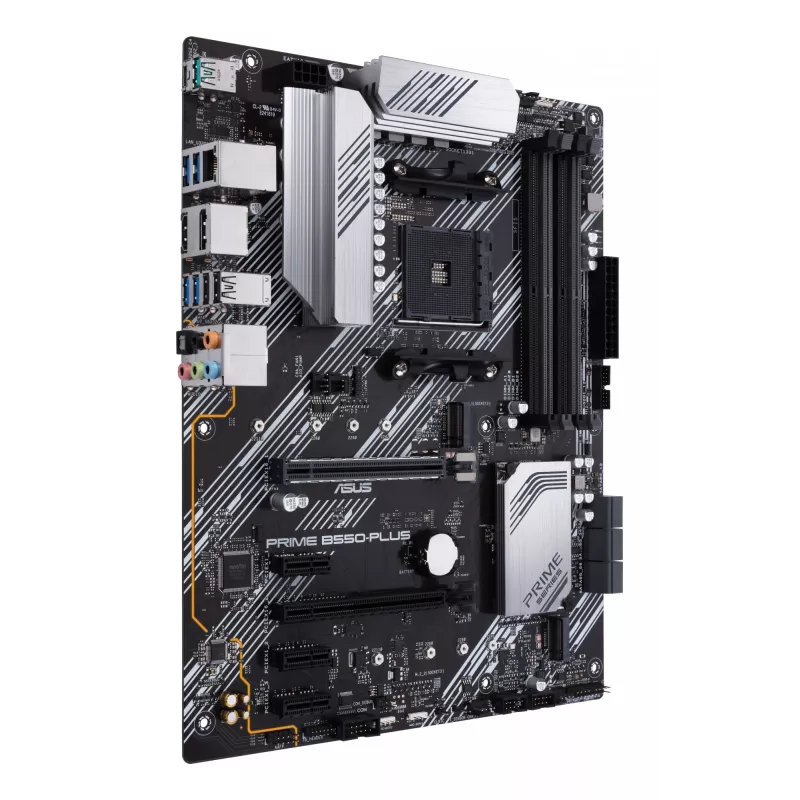

Motherboard ASUS PRIME B550-PLUS AMD B550 Socket AM4 ATX

The ASUS PRIME B550-PLUS is an ATX motherboard for Socket AM4 systems, designed for 3rd Generation AMD Ryzen processors. It offers a robust power design, comprehensive cooling features and flexible connectivity including PCIe 4.0 M.2 (up to 64 Gbps), M.2 and SATA storage interfaces, DDR4 memory support up to 128 GB and 2-Way CrossFireX support for multi-GPU configurations.

Advantages

The board provides advanced tuning tools for system performance and stable power delivery. Multiple onboard heatsinks, thermal pads and hybrid fan headers improve cooling under heavy loads. PCIe 4.0 M.2 support enables high-speed NVMe SSDs and RAID configurations. Additional refinements include enhanced onboard audio components and RGB lighting controls for user customization.

Suitable for

• Desktop systems based on 3rd Generation AMD Ryzen processors
• DIY PC builds requiring ATX form factor and DDR4 memory up to 128 GB
• Users who need fast NVMe storage (PCIe 4.0 M.2) and RAID 0/1/10 support
• Gaming or content-creation rigs using 2-Way CrossFireX multi-GPU setups

Key specifications

• Form factor: ATX
• Chipset: AMD B550
• Processor socket: Socket AM4 (3rd Gen AMD Ryzen compatible)
• Memory: 4 × DIMM, DDR4 up to 128 GB
• Storage: PCIe 4.0 M.2 (supports up to 22110, up to 64 Gbps), M.2 and SATA ports, RAID 0/1/10
• Multi-GPU: 2-Way CrossFireX
• LAN: Realtek RTL8111H Gigabit Ethernet
• Weight: 1.003 kg

How to use

Install a compatible 3rd Generation AMD Ryzen CPU into the Socket AM4, fit DDR4 DIMMs into the memory slots, and mount the motherboard in an ATX case. Connect power from a compatible PSU to the 24-pin ATX and CPU power headers, attach storage devices to the M.2 and SATA connectors, and install graphics cards into the PCIe slots if required. Use the UEFI BIOS and ASUS software utilities to configure memory, storage RAID and fan profiles, and apply performance tuning settings.

Recommendations

For stable operation under heavy workloads, ensure adequate case airflow and attach system fans to the motherboard’s hybrid headers. Use quality thermal paste and verify VRM heatsinks and thermal pads are properly seated. For best storage performance, install NVMe SSDs in the PCIe 4.0 M.2 slot and configure RAID through the BIOS if required.
