Placa-mãe GIGABYTE B760M GAMING X WIFI6E GEN5 Micro ATX, LGA1700, B760, DDR5 até 5600MHz, 4 DIMM, 2x PCIe 4.0 M.2, Wi‑Fi 6E, 2.5GbE

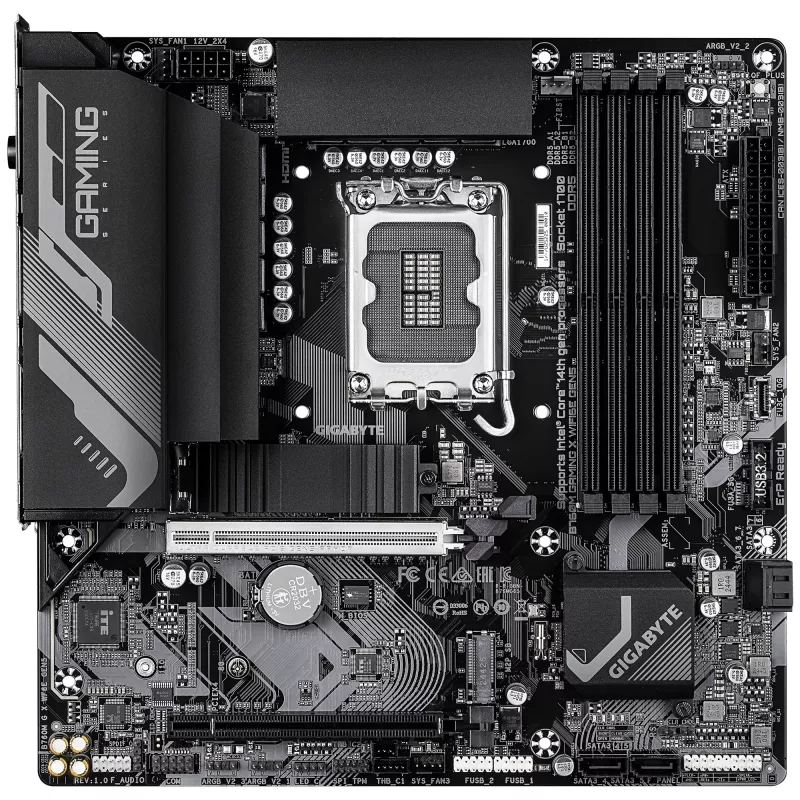

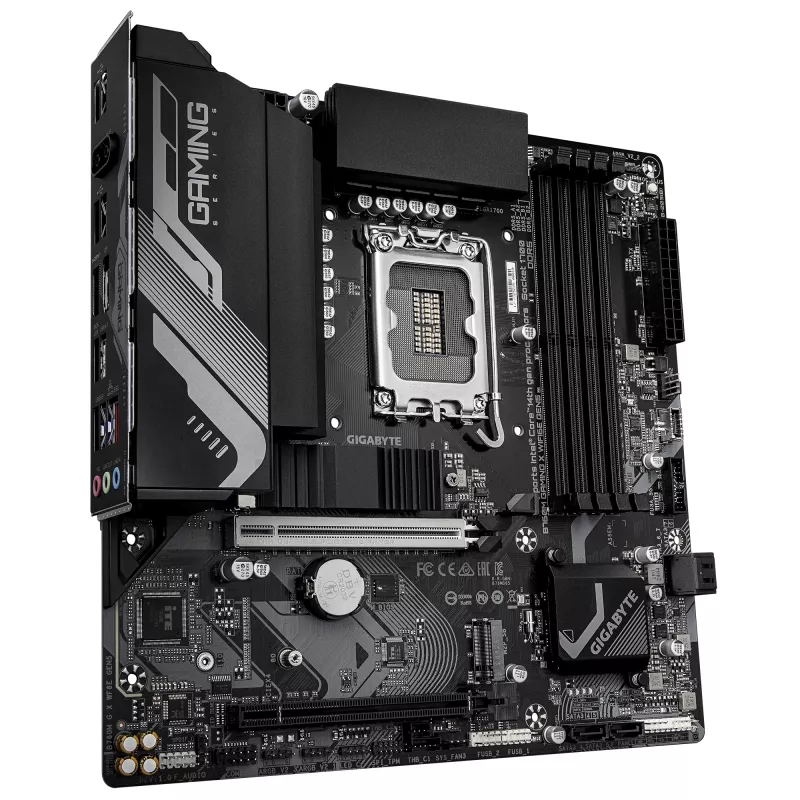

GIGABYTE B760M GAMING X WIFI6E GEN5 is a Micro ATX motherboard for LGA1700 Intel processors, built on the Intel B760 chipset. It supports 12th–14th Gen Intel Core and other LGA1700 CPUs, four DDR5 DIMM slots up to 256 GB (up to 5600 MHz), two PCIe 4.0 x4 M.2 connectors, SATA III with RAID support, Realtek 2.5GbE LAN and Wi‑Fi 6E connectivity. The board features an 8+1+1 phase VRM design and thermal protections to support high-performance gaming, content creation and general PC builds.

Advantages

This motherboard provides PCIe Gen5-ready design elements, robust power delivery through a hybrid 8+1+1 phase VRM solution, and efficient thermal management with VRM Thermal Armor and M.2 Thermal Guard. Integrated Wi‑Fi 6E and 2.5GbE LAN offer fast networking, while four DDR5 slots and XMP support enable high memory capacity and speeds. Quick-install features such as EZ-Latch for the PCIe slot and WIFI EZ-Plug simplify assembly and antenna setup.

Suitable for

• Gaming builds requiring compact Micro ATX form factor and high-frequency DDR5 memory
• Content creators and streamers needing fast storage and reliable power delivery
• High-performance general-purpose PCs with Wi‑Fi 6E and 2.5GbE networking

Key specifications

• Form factor: Micro ATX
• Chipset: Intel B760
• CPU socket: LGA 1700 — supports Intel 12th, 13th, 14th Gen Core, Pentium and Celeron
• Memory: 4 × DDR5 DIMM slots, up to 256 GB, up to 5600 MHz, XMP support
• Expansion: 1 × PCIe x16 (PCIe 5.0-ready design), EZ-Latch quick release
• Storage: 2 × PCIe 4.0 x4 M.2 connectors, SATA III, RAID 0/1/5/10; up to 6 storage drives supported
• Networking: Realtek 2.5GbE LAN, Wi‑Fi 6E (802.11ax), Bluetooth 5.3
• Audio: Realtek ALC897, 7.1 channels
• Power & thermal: Hybrid 8+1+1 phase VRM, VRM Thermal Armor, M.2 Thermal Guard
• BIOS: UEFI AMI 256 Mbit, ACPI 5.0, Clear CMOS jumper

How to use

Install the motherboard into a compatible Micro ATX case and fit an LGA1700 CPU following the CPU and motherboard manuals. Populate DDR5 DIMM slots as recommended by the motherboard manual to enable dual-channel operation and, if desired, enable XMP in BIOS for rated memory speeds. Mount storage drives to the M.2 sockets or SATA ports and connect power, front panel connectors and cooling. Install Wi‑Fi antenna(s) using the WIFI EZ-Plug and allow WIFI Compass to detect optimal orientation. Update BIOS to the latest version for best CPU and memory compatibility before the first boot.

Recommendations

Use quality DDR5 memory modules listed on the QVL for optimal stability, ensure adequate case airflow to maintain VRM and M.2 temperatures, and update drivers and BIOS for full compatibility with 12th–14th Gen Intel CPUs and Wi‑Fi 6E functionality.
