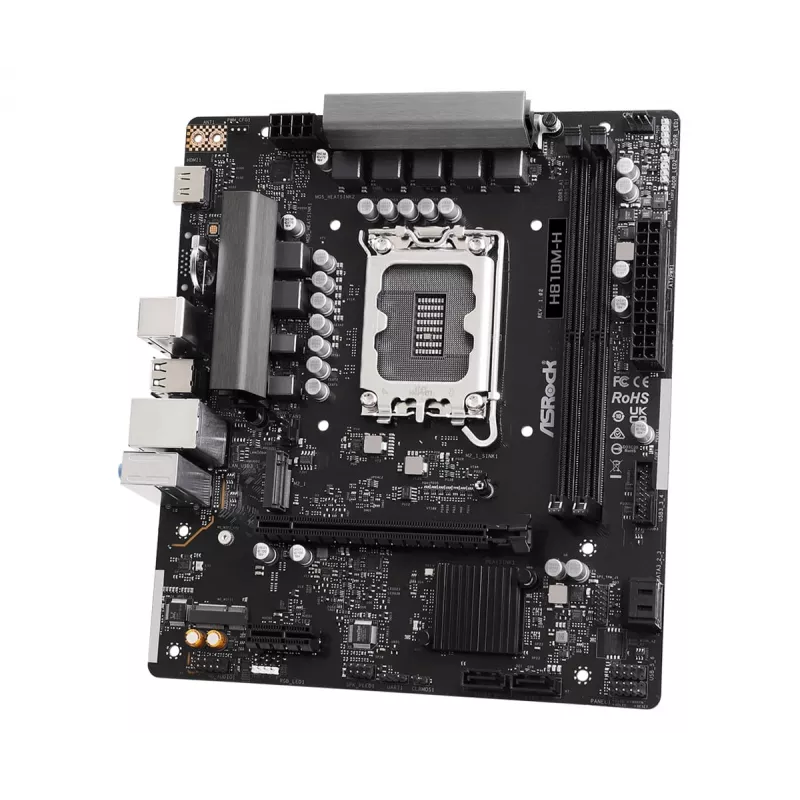

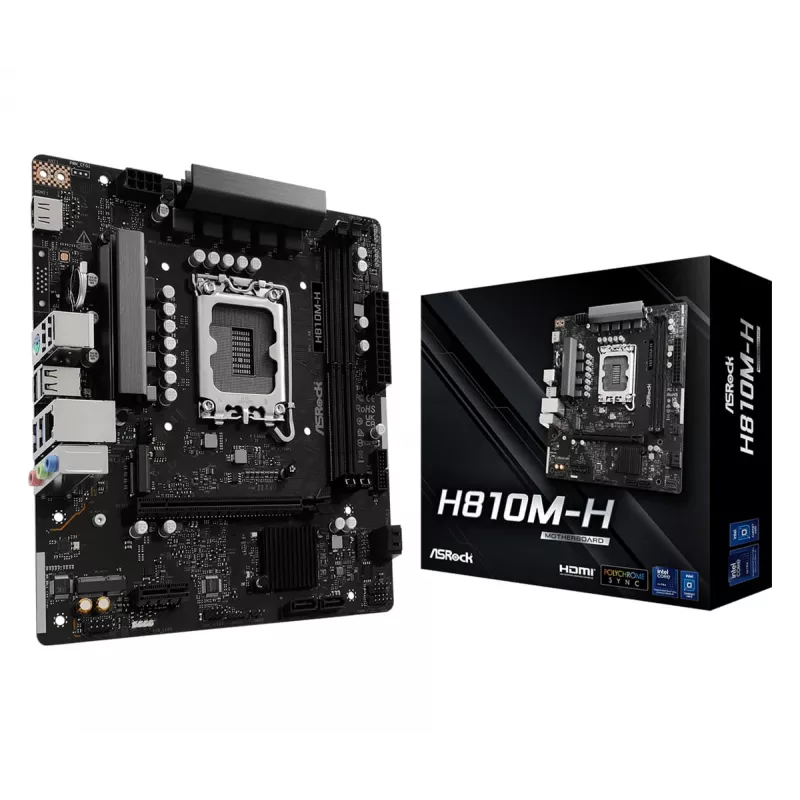

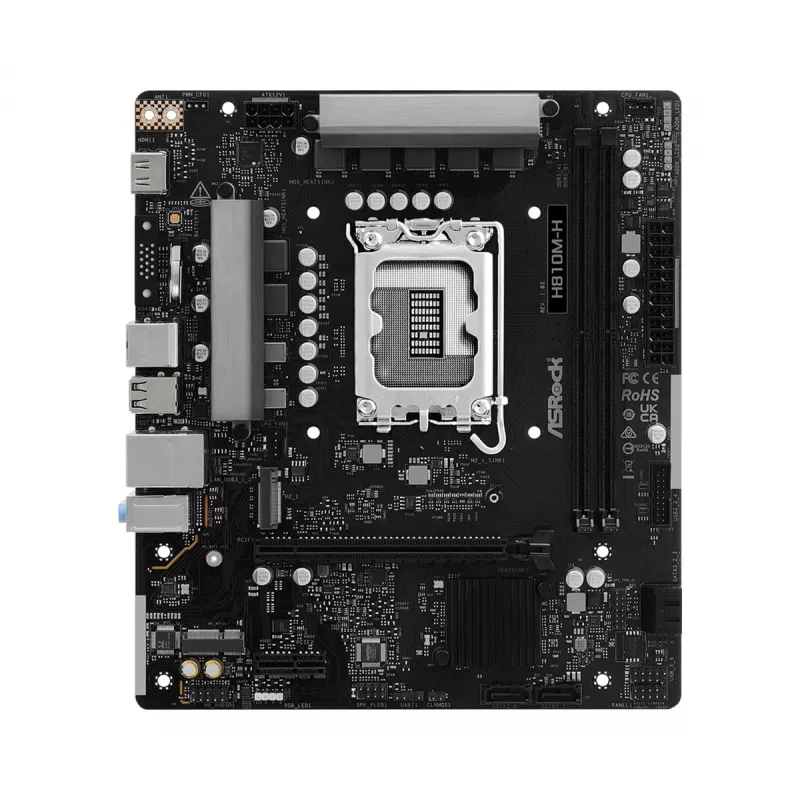

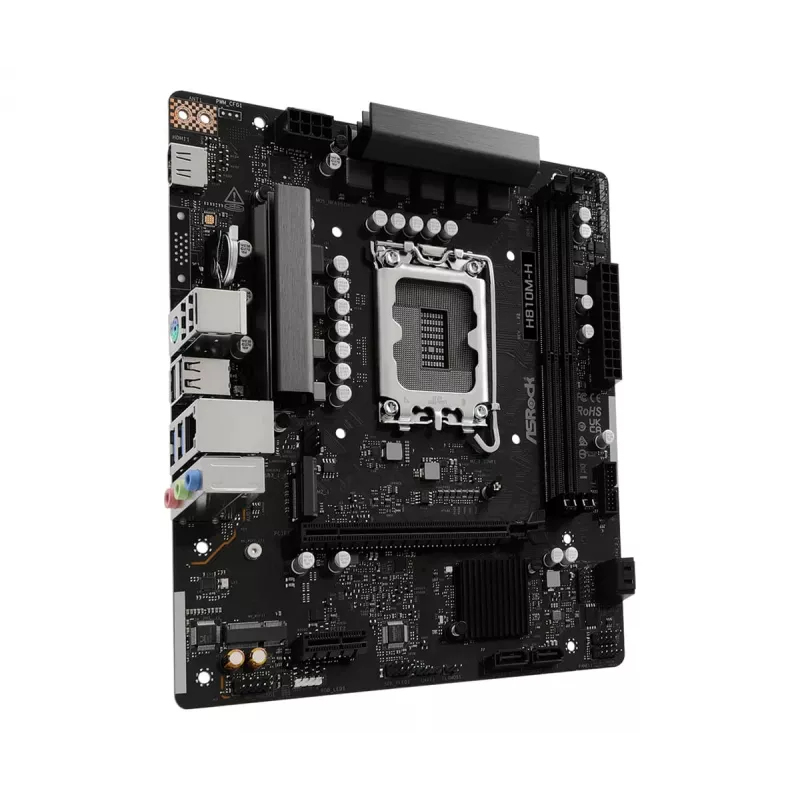

Motherboard Micro-ATX ASRock H810M-H — Intel H810, LGA 1851 (Socket V1), 2x DIMM DDR5, até 128 GB, M.2 & SATA III

Built to deliver reliable performance with versatile features, this micro ATX motherboard supports Intel LGA 1851 (Socket V1) processors and DDR5 memory for everyday computing and productivity. It includes a Hyper M.2 Gen4 x4 slot for PCIe 4.0 M.2 SSDs, an aluminum heatsink for improved thermal management, onboard Gigabit Ethernet and expandable wireless via an M.2 (Key E) slot. Onboard RGB and addressable RGB headers allow synchronization with compatible LED devices, while ASRock utilities simplify fan control and driver installation.

Advantages

The Hyper M.2 Gen4 x4 slot delivers up to twice the throughput of previous generation M.2 interfaces for faster data transfer. The optimized aluminum heatsink helps dissipate heat during heavy workloads, improving system stability and component longevity. PWM/DC fan header detection and Fan-Tastic Tuning provide flexible and quiet cooling management through an intuitive visual interface. Built-in RGB and addressable RGB headers plus SignalRGB support enable unified lighting control across compatible devices. The Auto Driver Installer includes a preinstalled LAN driver to simplify initial driver setup.

Key specifications

• CPU socket: Intel LGA 1851 (Socket V1) — Intel Core Ultra (Series 2)
• Form factor: Micro ATX
• Chipset: Intel H810
• Audio codec: Realtek ALC897, 7.1 channels
• Memory: DDR5-SDRAM, 2 DIMM slots, up to 128 GB
• Storage: M.2 (including Hyper M.2 Gen4 x4) and SATA III; number of supported drives: 5
• BIOS: UEFI AMI, 256 Mbit
• LAN: Gigabit Ethernet; M.2 (Key E) slot available for optional Wi‑Fi module (module not included)
• Cooling: Aluminum heatsink for M.2, PWM/DC fan support, Fan-Tastic Tuning
• Lighting: Onboard RGB and addressable RGB headers (addressable header supports WS2812B, 5V/Data/GND, max 3A/5V, max 80 LEDs, max 2 m; RGB header supports 5050 RGB strip 12V/G/R/B, max 3A/12V, max 2 m)

How to use

Install the CPU, DDR5 modules and power connectors according to the motherboard manual, then attach storage devices to the M.2 or SATA ports. If using an M.2 PCIe 4.0 SSD, install it into the Hyper M.2 Gen4 x4 slot and ensure the aluminum heatsink is mounted for optimal cooling. Connect chassis fans to the fan headers — the board will auto-detect PWM or DC fans; use the Fan-Tastic Tuning utility to automatically detect minimum fan duty and adjust the fan curve through the visual interface. Connect RGB or addressable RGB devices to the appropriate headers and use Polychrome RGB or SignalRGB for lighting control. For wireless networking, insert a compatible Wi‑Fi module into the M.2 (Key E) slot (module not included).

Recommendations

Use a PCIe 4.0 compatible M.2 SSD to benefit from the Hyper M.2 Gen4 x4 performance, ensure the aluminum heatsink is properly installed for sustained workloads, and update drivers with the Auto Driver Installer after first boot. When adding addressable RGB strips, respect the voltage and current limits indicated on the headers to avoid damage.
