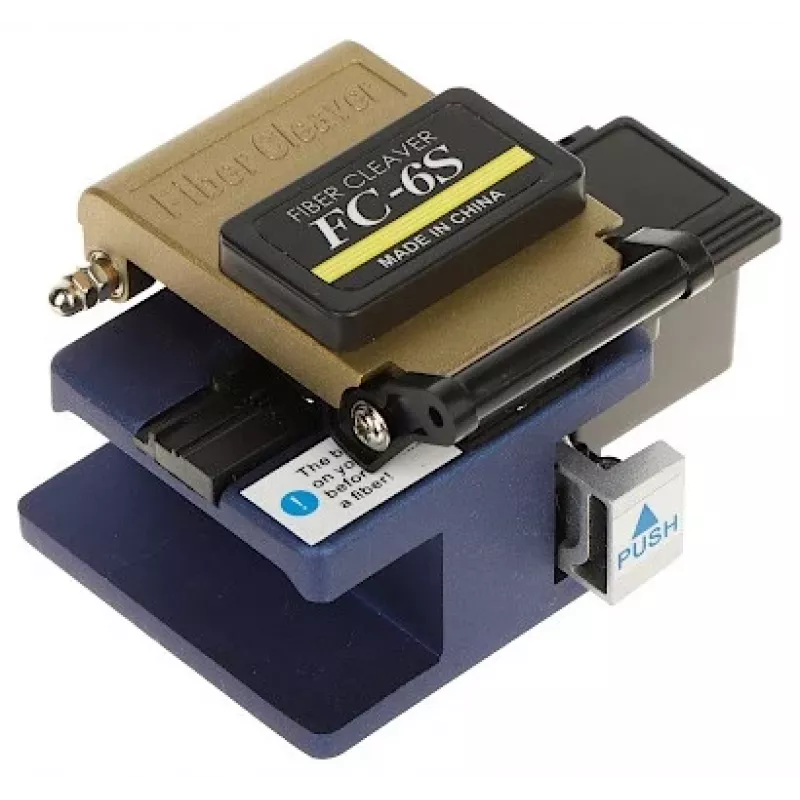

Clivador de fibra ótica FC-XK6S/A – Alicate de precisão para fusão de fibras SM e MM

In fiber optic splicing and termination, a poor cleave leads to high splice loss, weak mechanical joints, and costly rework. The Fiber Optic Cleaver FC-XK6S/A eliminates these issues with a precision tungsten carbide blade that delivers cleave angles under 0.5°, ensuring low-loss connections every time. Its robust aluminum alloy body and automatic blade return make it a reliable choice for field technicians and production lines alike.

Who is it for

This cleaver is built for fiber optic installers, telecom maintenance crews, and manufacturing technicians who work with single-mode and multi-mode fibers. It is equally suited for FTTH deployments, data center cabling, and laboratory prototyping where consistent cleave quality is critical.

Main features

• Cleave angle < 0.5° average for low splice loss
• Supports 250 µm and 900 µm coated fibers, plus flat drop cables
• Cleave length adjustable: 5–20 mm for 250 µm, 10–20 mm for 900 µm
• Long-life circular blade: 16 positions × 3 heights = up to 48,000 cleaves
• Manual fiber feed with automatic blade return for fast, two-step operation
• Integrated waste collector keeps workspace clean
• Universal fiber holder accepts 250 µm, 900 µm, and flat cables
• Durable aluminum alloy body with high-strength plastic components
• Wide operating temperature range: -10°C to +50°C

Specifications

• Applicable fiber: Single-mode (SM) and Multi-mode (MM)
• Cladding diameter: 125 µm
• Coating diameter: 250 µm to 900 µm
• Blade material: Tungsten carbide
• Blade type: Circular, 16-position rotating
• Cleave steps: 2-step process (set fiber, press lever)
• Storage temperature: -20°C to +70°C
• Humidity: 0 to 95% RH (non-condensing)
• Included accessories: Soft carrying case, hex keys, user manual

Tips

To maximize blade life, rotate the blade to a fresh position after noticing a decline in cleave quality. Always clean the fiber holder and V-groove before use to prevent debris from affecting cleave angles. Store the cleaver in its carrying case when not in use to protect the precision surfaces.
