Macho de roscar à máquina M16 DIN 376B (6H) HSSE 800 para furos passantes

Cutting M16 threads in tough steel alloys demands a tool that stays sharp and accurate—this HSSE 800 tap delivers exactly that, with a 6H tolerance class ensuring a precise fit every time.

Overview

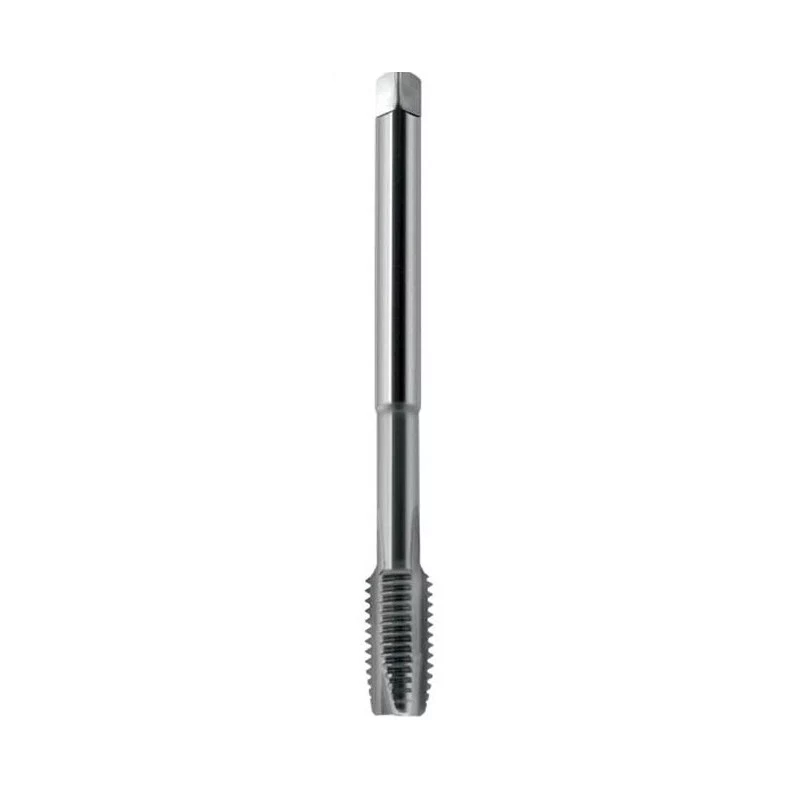

Built for through-hole threading, this M16 machine tap follows the DIN 376B standard and features a straight flute design that efficiently evacuates chips. The high-speed steel with cobalt (HSSE) construction provides excellent heat resistance and wear resistance, making it suitable for general purpose steel, alloy steel, and non-ferrous metals. A cylindrical shank with square drive ensures secure chucking in machine holders.

What stands out

• M16 coarse thread with 2.0 mm pitch for standard metric fasteners
• 6H tolerance class for medium fit—ideal for general engineering
• HSSE cobalt steel withstands high cutting temperatures
• Straight flutes optimized for through holes, preventing chip clogging
• Uncoated surface allows re-sharpening for extended tool life

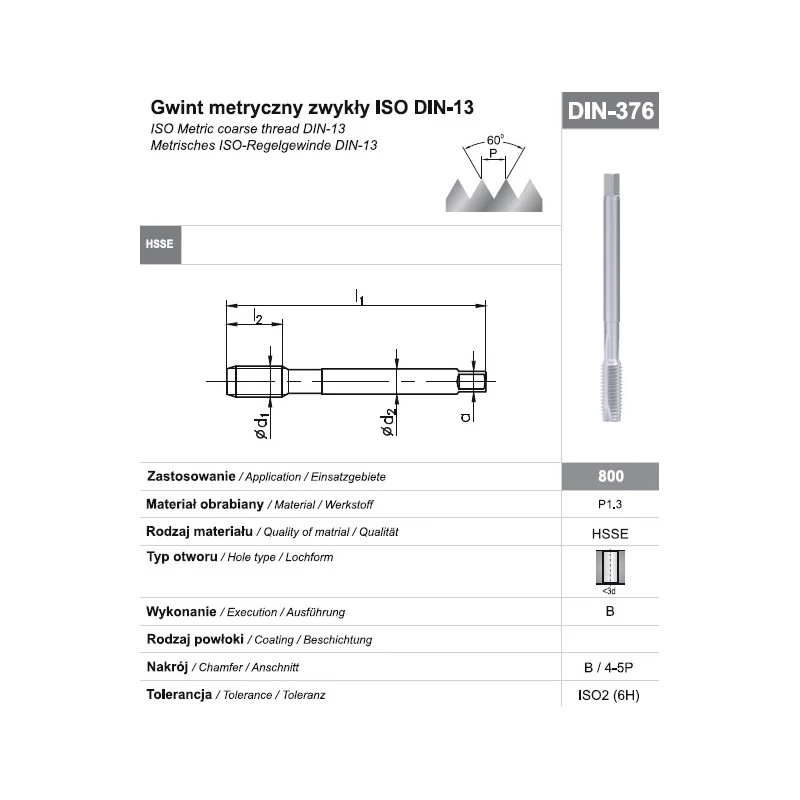

Technical details

• Thread Type: Metric Coarse
• Nominal Diameter: M16
• Thread Pitch: 2.0 mm
• Standard: DIN 376B
• Material: HSSE (High-Speed Steel with Cobalt)
• Tolerance Class: 6H
• Application Type: Machine Tap
• Hole Type: Through Holes
• Flute Type: Straight Flute
• Cutting Direction: Right-Hand Cut
• Shank Type: Cylindrical with Square Drive
• Overall Length (L1): 110 mm
• Thread Length (L2): 25 mm
• Shank Diameter (d2): 12 mm
• Square Drive (a): 9 mm
• Surface Treatment: Uncoated
• Recommended Material Group: General purpose steel, alloy steel, non-ferrous metals
• Series: 800

Our verdict

The HSSE 800 M16 tap is a reliable workhorse for through-hole threading in demanding materials. Its cobalt steel construction and straight flutes ensure clean, accurate threads and long tool life, making it a smart choice for professional machinists.
