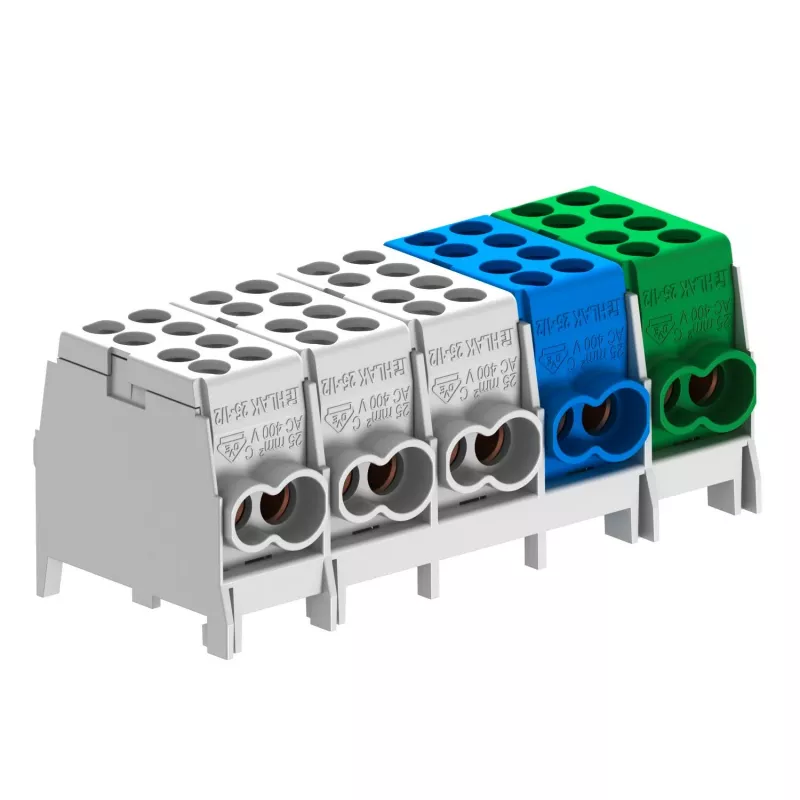

OBO HLAK 5-10x16 Terminal de derivação de linha principal 2009036

The OBO HLAK 5-10x16 is a main line branch terminal block engineered for reliable distribution of electrical power in building installations. Its screw connection system ensures secure and durable conductor termination, supporting a main conductor cross-section of up to 70 mm² rigid and 50 mm² flexible, with branch conductors up to 10 x 16 mm².

Advantages

This terminal block features a robust polyamide housing in grey, providing excellent insulation and mechanical protection. The tinned brass conductor material offers low contact resistance and corrosion resistance, ensuring long-term performance. It can be mounted on DIN rail TS35 or directly screwed onto a surface, offering flexibility in installation.

Suitable for

• Main line branching in distribution boards
• Connecting large supply conductors to multiple smaller branch lines
• Industrial and commercial electrical installations

Key specifications

• Main conductor cross-section: 70 mm² rigid, 50 mm² flexible
• Branch conductor cross-section: 10 x 16 mm²
• Rated voltage: 400 V
• Rated current: 160 A (main), 76 A (branch)
• Connection type: Screw
• Mounting: DIN rail TS35 or screw mounting
• Housing material: Polyamide (PA)
• Conductor material: Brass, tinned
• Colour: Grey
• Protection class: IP20
• Operating temperature: -25 °C to +55 °C

Recommendations

For optimal performance, ensure proper torque on screw connections and verify conductor compatibility before installation. Use in dry environments as per IP20 rating.
