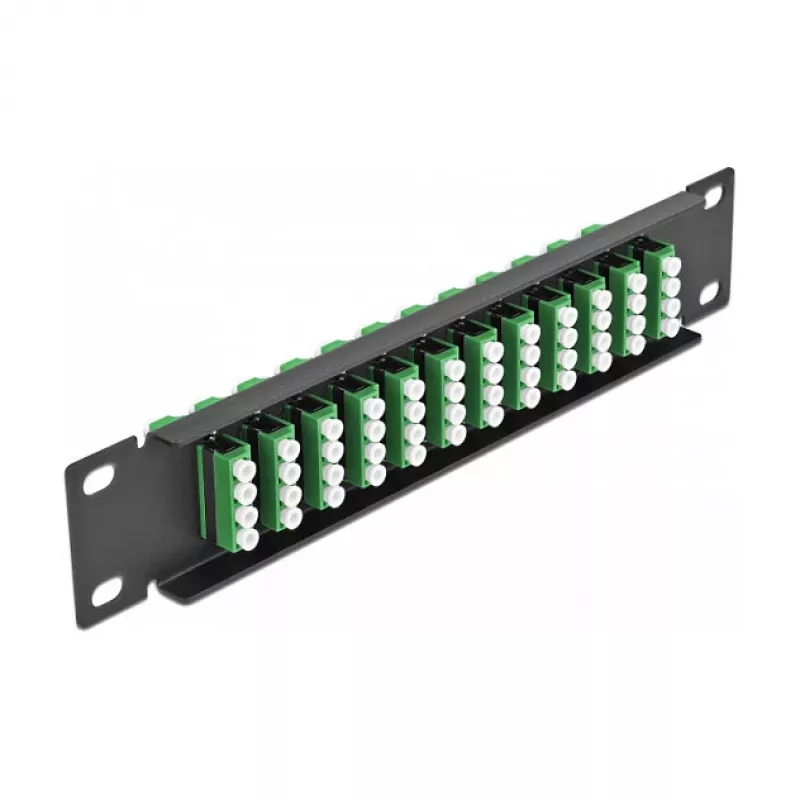

Patch panel de fibra ótica DeLOCK 10 polegadas 12 portas LC quad verde 1U preto

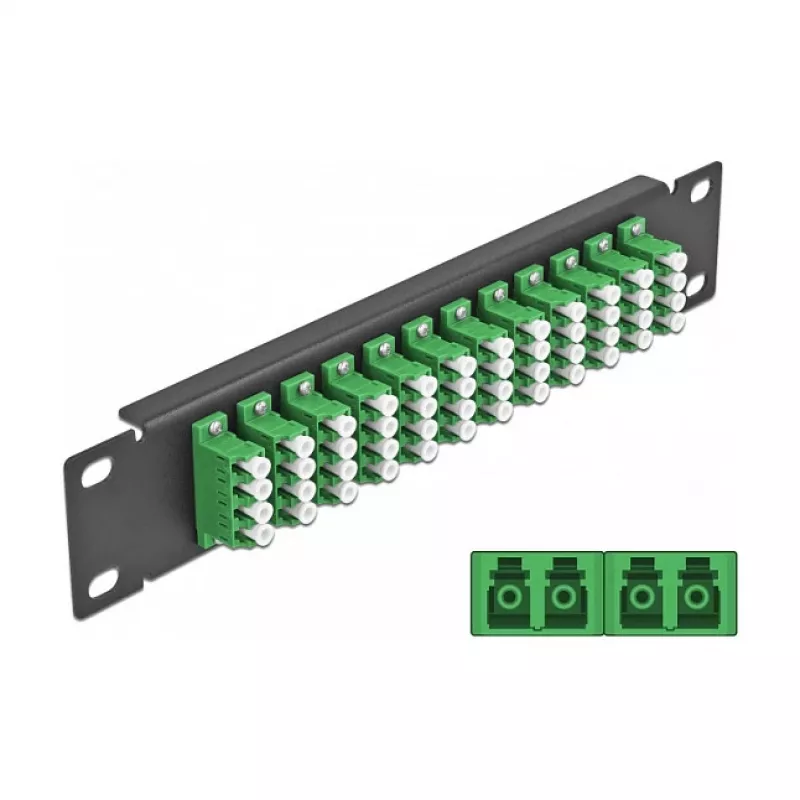

The DeLOCK 10" 12 Port LC Quad Fiber Optic Patch Panel is a 1U rack-mount panel designed to organize and terminate fiber optic connections in a standard 10" network cabinet. It includes twelve LC Quad couplers to facilitate straightforward connection of LC fiber connectors and is made of durable metal with a green and grey finish. Dimensions: 44 mm (width) × 10 mm (height) × 254 mm (depth).

Advantages

This patch panel provides 12 LC Quad ports in a compact 1U form factor for efficient use of rack space. The metal construction ensures mechanical stability and reliable cable management, while the LC Quad couplers allow simple mating of LC fiber connectors. The panel is compatible with standard 10" network cabinets and helps centralize fiber terminations for easier maintenance.

Suitable for

• Organizing fiber optic connections in data centers
• Patch management in telecom and network racks
• Fiber distribution in server rooms and comms closets

Key specifications

• Brand: DELOCK
• Model / MPN: 66777
• EAN: 4043619667772
• Ports: 12 LC Quad couplers
• Rack size: 10" (1U)
• Material: Metal
• Colour: Green, Grey
• Dimensions: 44 mm × 10 mm × 254 mm

How to use

Mount the panel into a 10" network cabinet using appropriate rack screws, ensuring it occupies one unit (1U) of rack height. Insert fiber connectors into the LC Quad couplers, taking care to align connectors properly and to protect fiber ends from contamination. Use standard fiber patch cords to connect the panel to active equipment or other fiber infrastructure components. Maintain strain relief and route cables to minimize bending and stress.

Recommendations

For reliable performance, clean LC connector endfaces before mating, secure cables with proper organizers or ties, and avoid tight bends. Verify compatibility of connector types and fibre types (single-mode/multi-mode) before installation.
