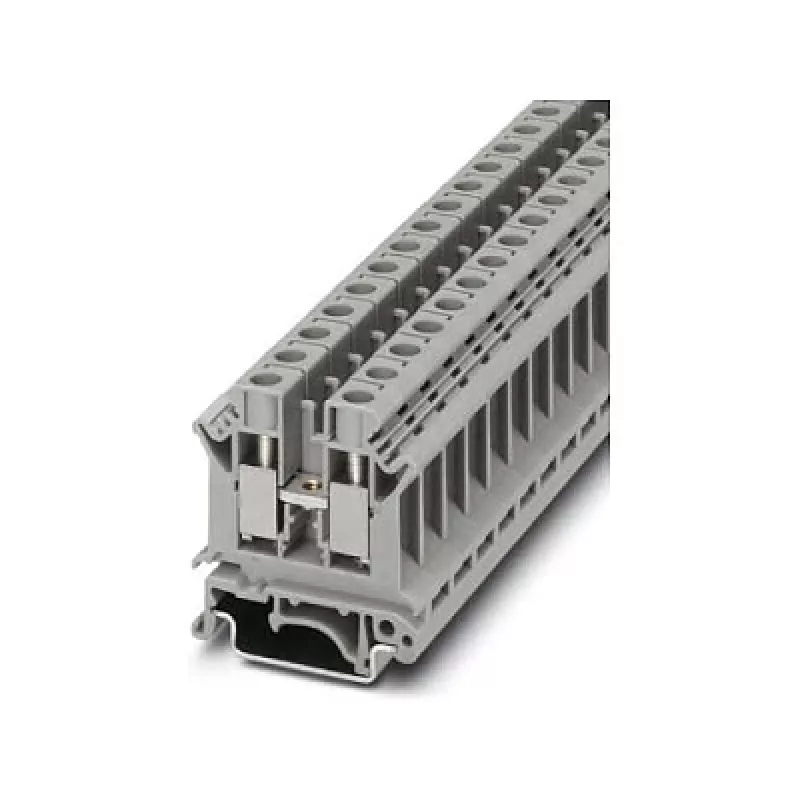

Phoenix 3005073 borne de passagem UK 10 N, ligação por parafuso, 10 mm², 800 V, 57 A, cinzento

Feed-through terminal block with screw connection, engineered for reliable and efficient wire termination in industrial control panels and distribution systems. The UK 10 N provides a robust single-position, two-connection solution for conductors up to 10 mm², rated for 800 V and 57 A, making it ideal for power distribution and signal wiring in demanding environments.

Advantages

The screw connection technology ensures a secure, vibration-resistant termination, while the polyamide housing offers excellent insulation and mechanical strength. Its compact design saves space on the DIN rail, and the wide conductor range (0.5 to 16 mm² solid) accommodates various wiring needs. The grey color provides a neutral appearance suitable for standard installations.

Suitable for

• Industrial control panels and switchgear
• Power distribution in machinery and equipment
• Building automation and electrical installations
• Applications requiring reliable feed-through connections on DIN rails

Key specifications

• Connection method: Screw connection
• Number of positions: 1, number of connections: 2
• Nominal cross section: 10 mm²
• Rated voltage (IEC): 800 V, rated current (IEC): 57 A
• Conductor cross section: solid 0.5–16 mm², stranded 0.5–10 mm², AWG 20–6
• Insulating material: Polyamide (PA), color: grey
• Mounting type: DIN rail NS 35/7.5 or NS 35/15
• Stripping length: 10 mm, screw thread: M4, tightening torque: 1.2–1.5 Nm
• Pollution degree: 3, overvoltage category: III, flammability rating: UL 94 V0

Recommendations

For optimal performance, use a screwdriver with the correct blade size to achieve the specified tightening torque. Ensure the DIN rail is properly grounded and the terminal block is securely snapped on. This terminal block is compatible with standard accessories such as end covers and partition plates for enhanced safety and organization.
