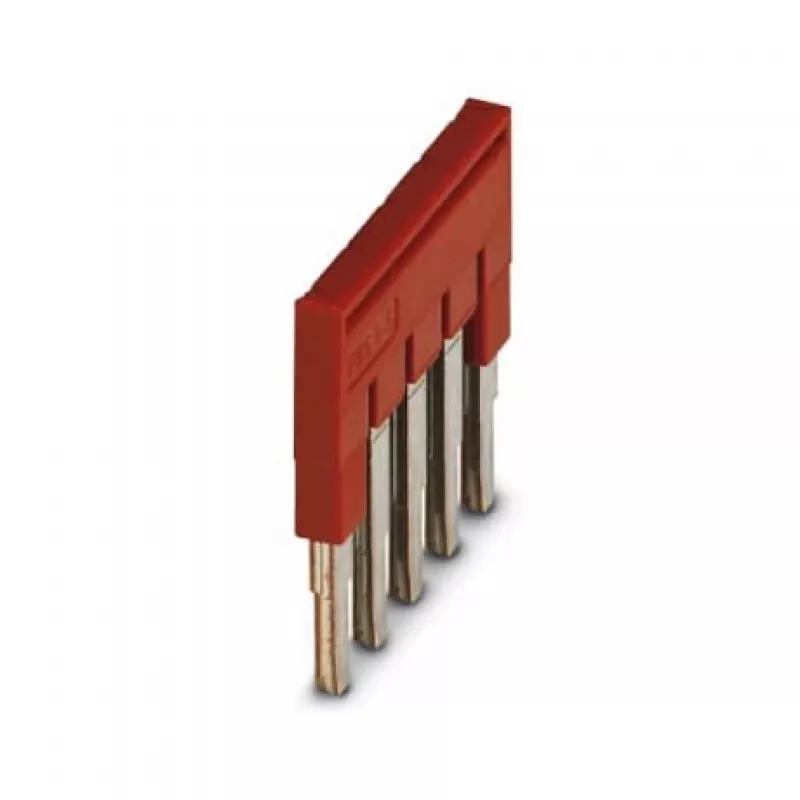

Phoenix 3030190 FBS 5-5 Ponte de ligação, 5 polos, passo 5,2 mm, vermelho, 32 A

In control cabinets and distribution boards, technicians often need to distribute power or signals across adjacent terminal blocks quickly and reliably. The Phoenix 3030190 FBS 5-5 plug-in bridge makes this task effortless: simply press the red 5-pole bridge into compatible screw or spring-cage terminal blocks with 5.2 mm pitch, and five positions are instantly jumpered. No loose wires, no time-consuming daisy-chaining—just a clean, vibration-resistant connection rated for 32 A and 500 V.

Key specifications

• Product type: Fixed plug-in bridge, 5-pole
• Pitch: 5.2 mm
• Rated current: 32 A (with 2.5 mm² conductor)
• Rated voltage (III/2): 500 V; surge voltage: 6 kV
• Insulation material: Polyamide (PA), UL 94 V0
• Colour: Red
• Operating temperature: -60 °C to +105 °C
• Standards: IEC 60947-7-1, RoHS compliant

Why choose it

This bridge eliminates wiring errors and speeds up panel assembly. Its compact design fits neatly between terminal blocks, and the robust polyamide housing withstands harsh industrial environments. The high current rating means you can use it for power distribution, not just signals. Plus, the bright red colour provides instant visual identification of jumpered circuits.

Ideal use cases

• Potential distribution in control panels
• Signal looping in PLC I/O modules
• Power supply bridging for multiple loads
• Quick reconfiguration during commissioning

Good to know

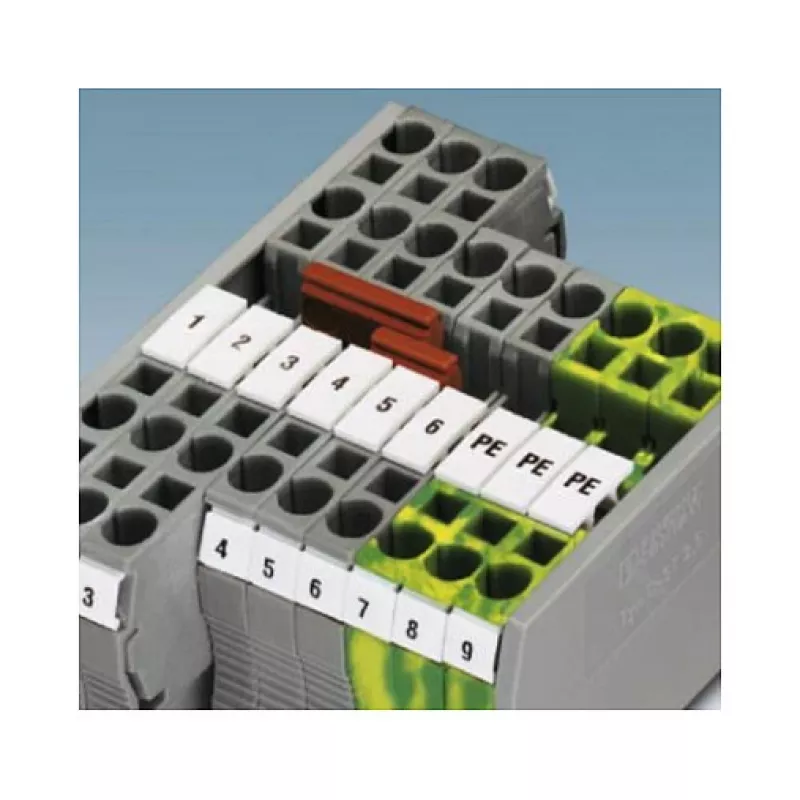

The FBS 5-5 is designed for Phoenix Contact CLIPLINE complete terminal blocks with 5.2 mm pitch. It is a fixed bridge, meaning all five poles are permanently connected. For maintenance, simply pull it out—no tools required. The bridge is RoHS compliant and meets stringent flammability standards, ensuring safety in your installations.
